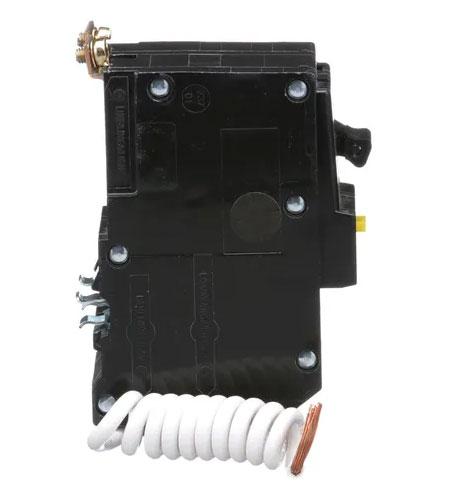

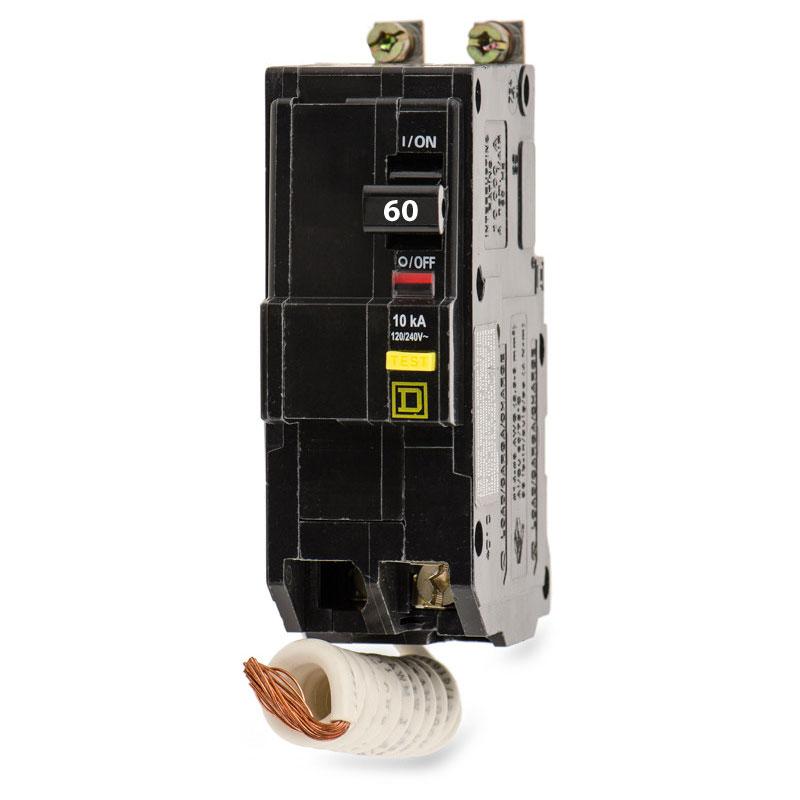

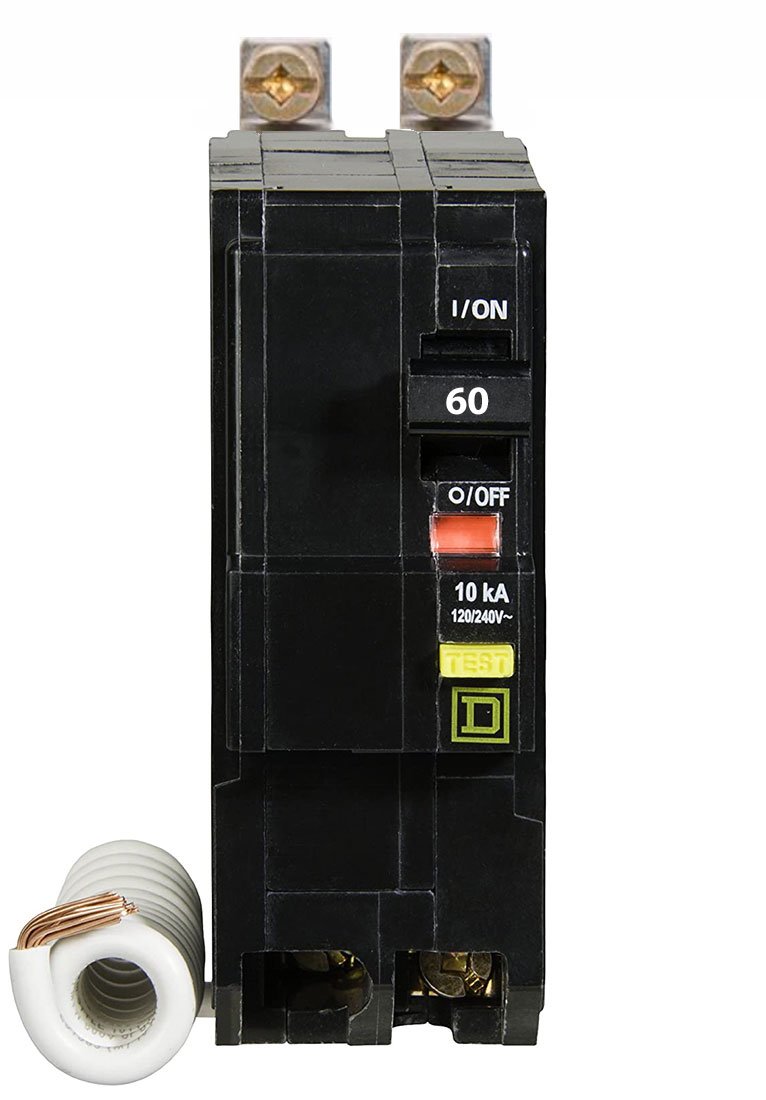

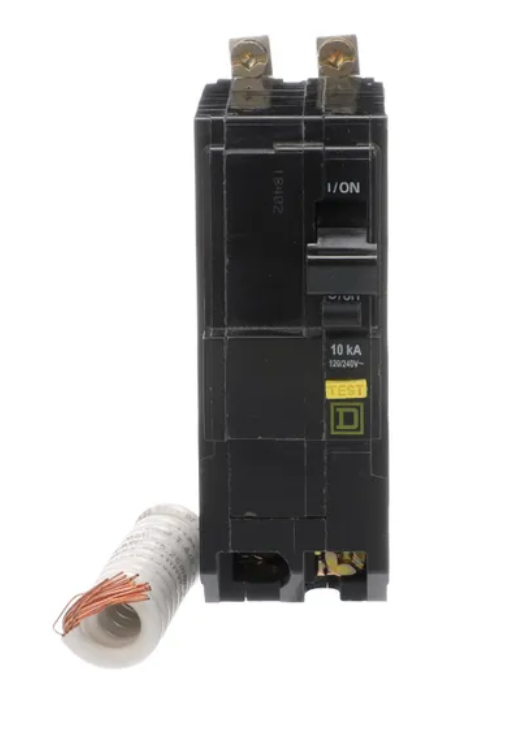

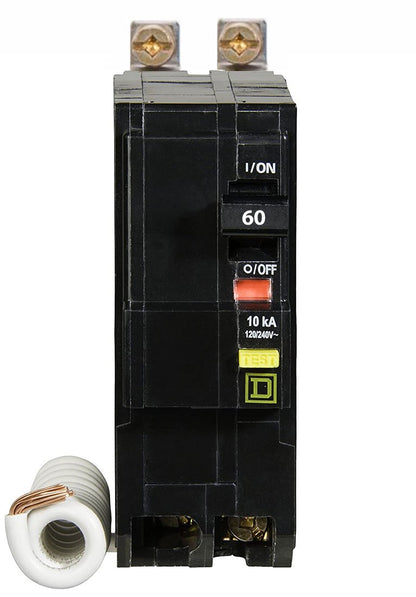

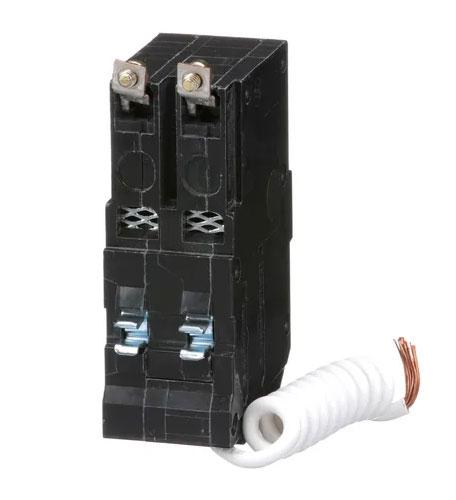

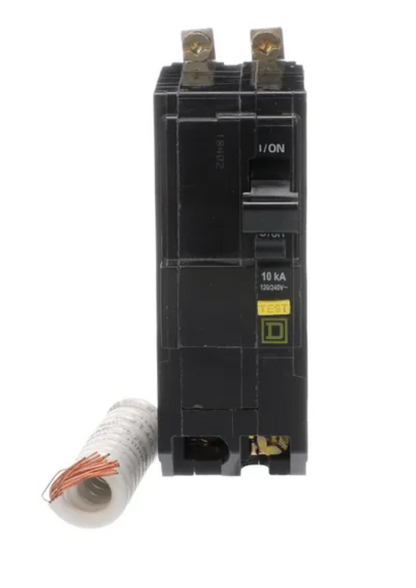

Square D QOB260GFI Circuit Breaker 120/240V 60A 2P 10kA@240V Bolt-On QOB Series

Product Description:
The Square D QOB260GFI is a molded case circuit breaker designed for reliable electrical protection. It is a 2-pole, 60 amp breaker rated for 120/240 volts with a 10kA interrupting capacity. This thermal magnetic circuit breaker features a bolt-on connection and ground fault circuit interrupter (Class A - 5mA) functionality. It is compatible with QO load centers and NQ panelboards.

Key Features:
✔ Part Number: QOB260GFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 60
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 785901363002
✔ GTIN: 00785901363002
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 4.12 in x 4.13 in
✔ Weight: 0.98
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
