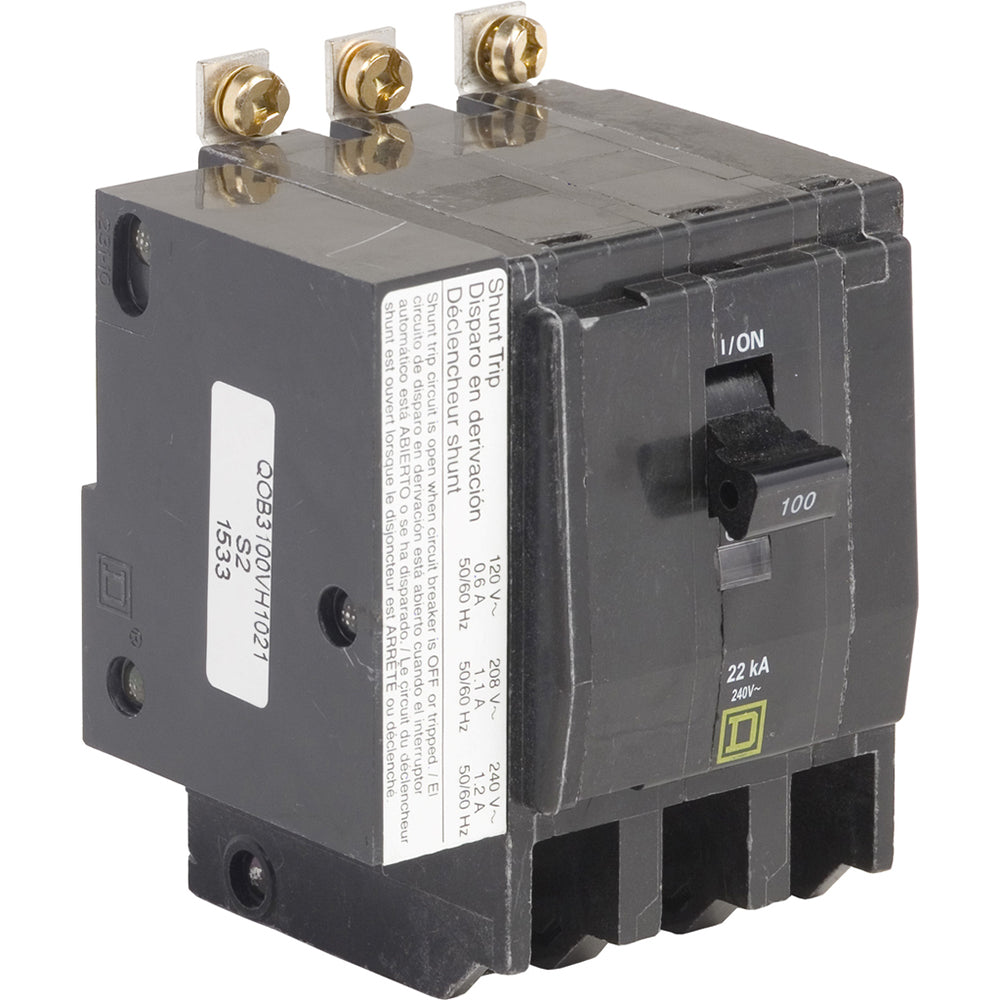

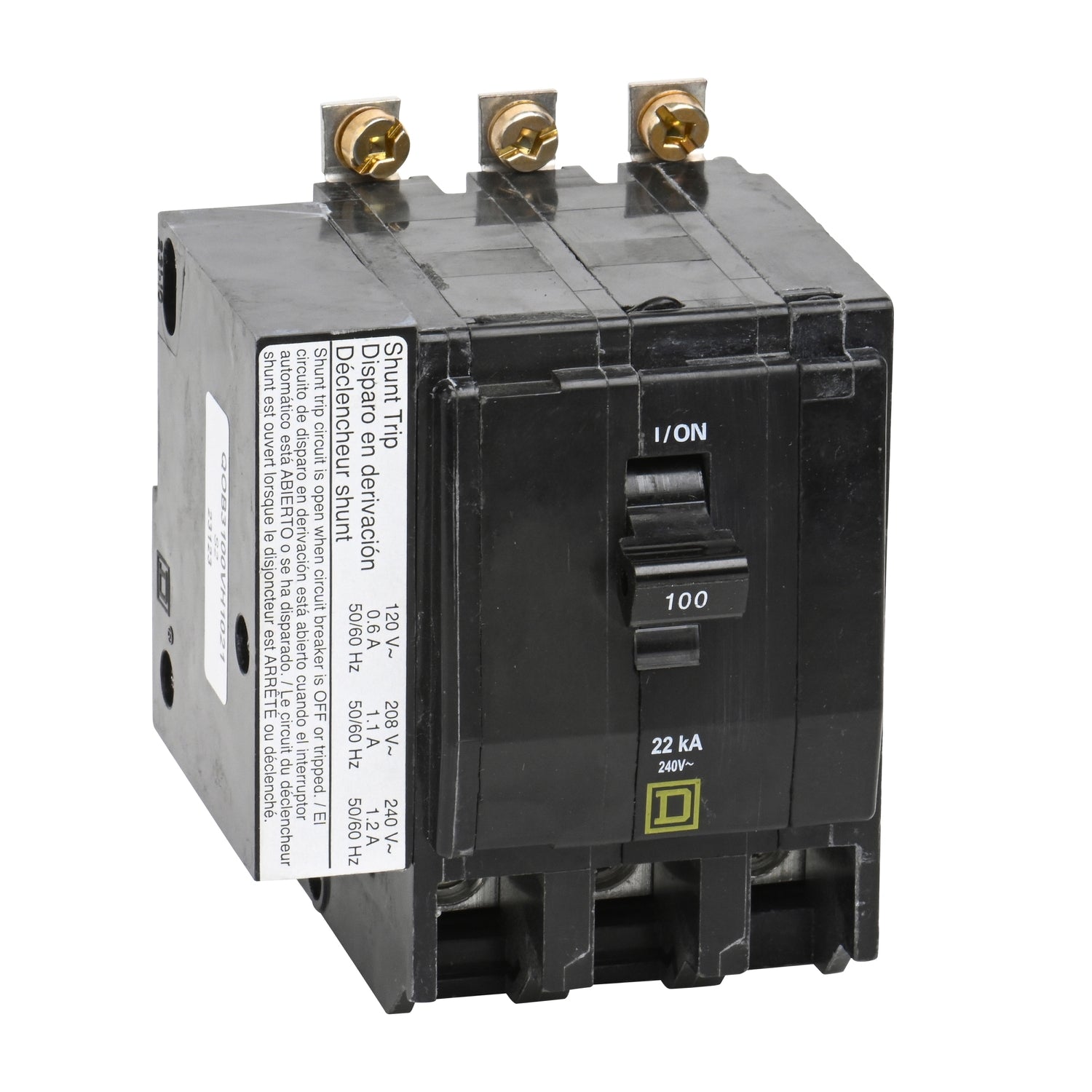

Square D QOB3100VH1021 Circuit Breaker | QOB Series QOB 240V 100A
Square D QOB3100VH1021 Circuit Breaker | QOB Series QOB 240V 100A
Price:
Sale
Sold out
Regular price
$695.45 USD
Regular price
$818.00 USD
Sale price
$695.45 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 8 left
Couldn't load pickup availability
Product Description:
The Square D QOB3100VH1021 is a Molded Case Circuit Breaker from the QOB Series. It features a 3-pole design with a 240V, 100A rating and a 22kA@240V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection. It is UL Listed and CSA certified for safety compliance.
Key Features:
✔ Part Number: QOB3100VH1021
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 240V
✔ Amperage: 100A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 22kA@240V
✔ Connection: Bolt-On
✔ Terminal Connection: Box Lugs
✔ Min. Wire Size: 8 AWG (Cu/Al)
✔ Max. Wire Size: 2 AWG (Cu/Al)
✔ Breaker Type: Standard
✔ Certification: UL Listed, CSA
✔ UPC: 785901088752
✔ GTIN: 00785901000000
✔ Country of Origin: Mexico
The Square D QOB3100VH1021 is a Molded Case Circuit Breaker from the QOB Series. It features a 3-pole design with a 240V, 100A rating and a 22kA@240V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection. It is UL Listed and CSA certified for safety compliance.
Key Features:
✔ Part Number: QOB3100VH1021
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 240V
✔ Amperage: 100A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 22kA@240V
✔ Connection: Bolt-On
✔ Terminal Connection: Box Lugs
✔ Min. Wire Size: 8 AWG (Cu/Al)
✔ Max. Wire Size: 2 AWG (Cu/Al)
✔ Breaker Type: Standard
✔ Certification: UL Listed, CSA
✔ UPC: 785901088752
✔ GTIN: 00785901000000
✔ Country of Origin: Mexico
