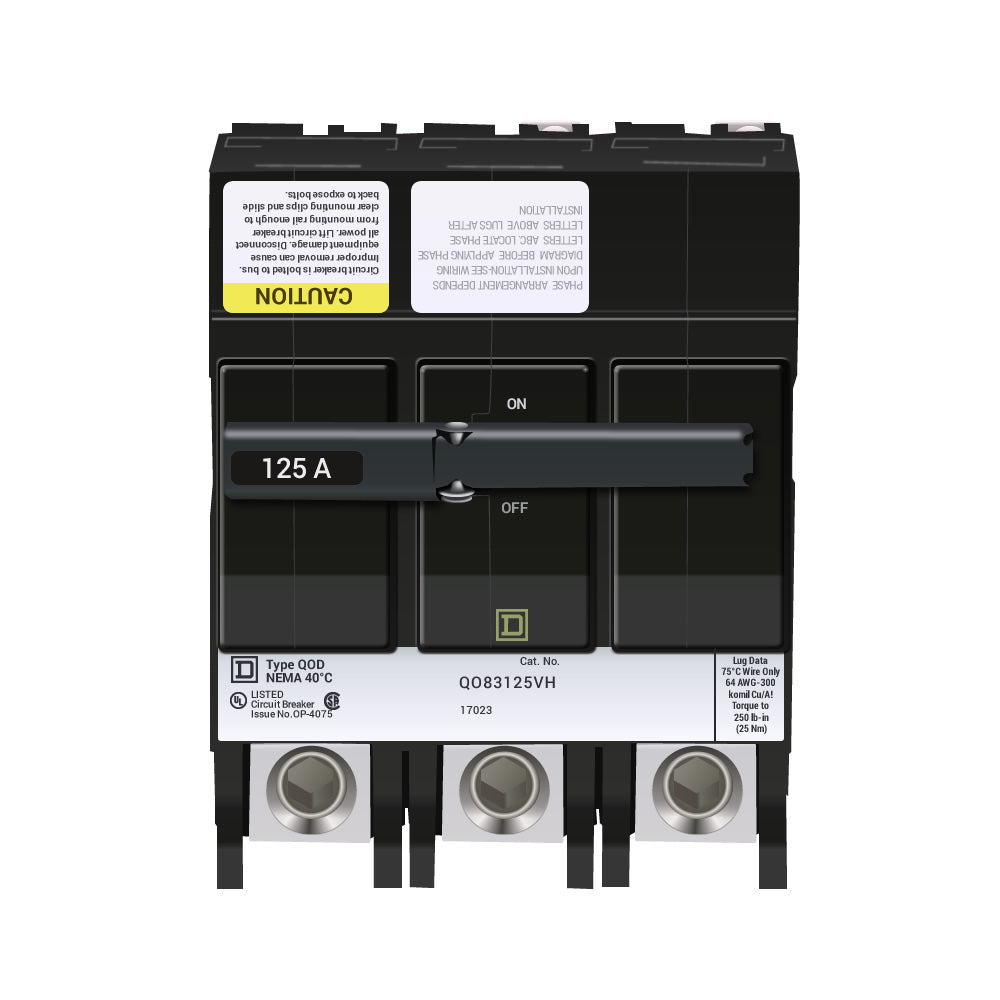

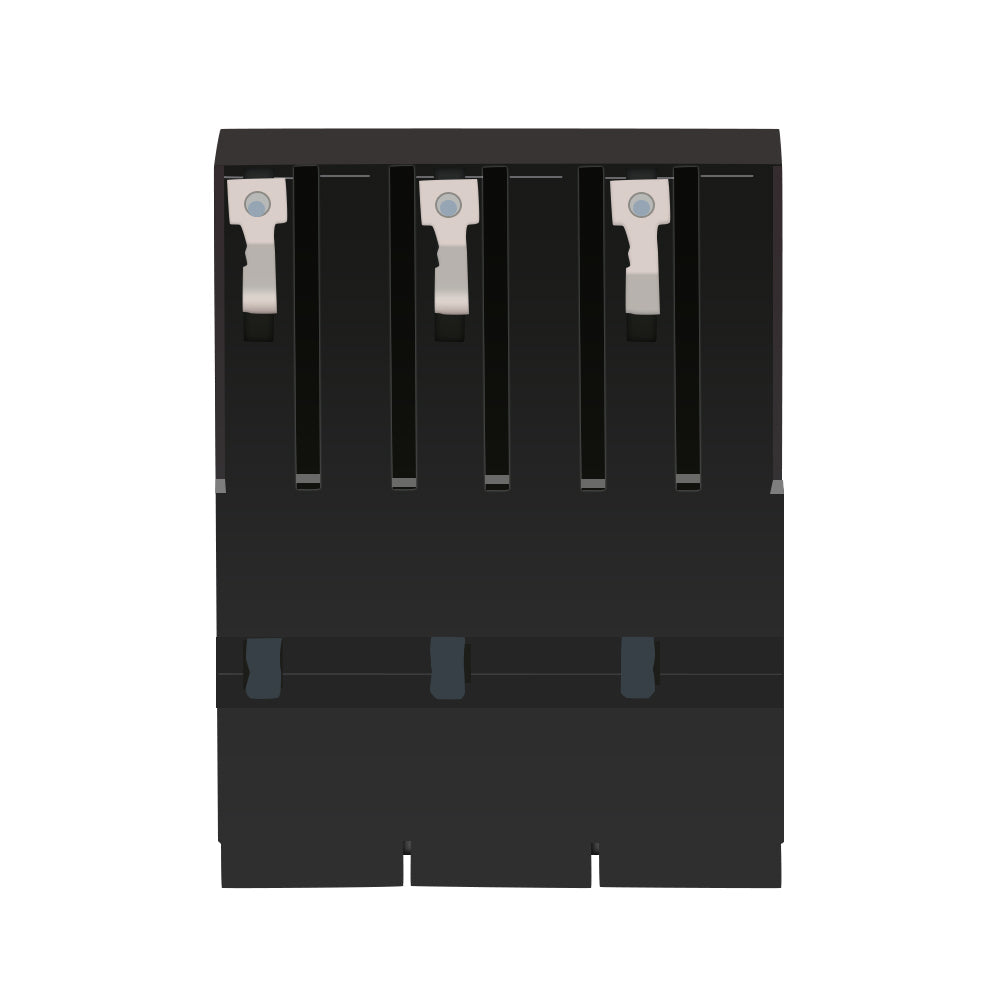

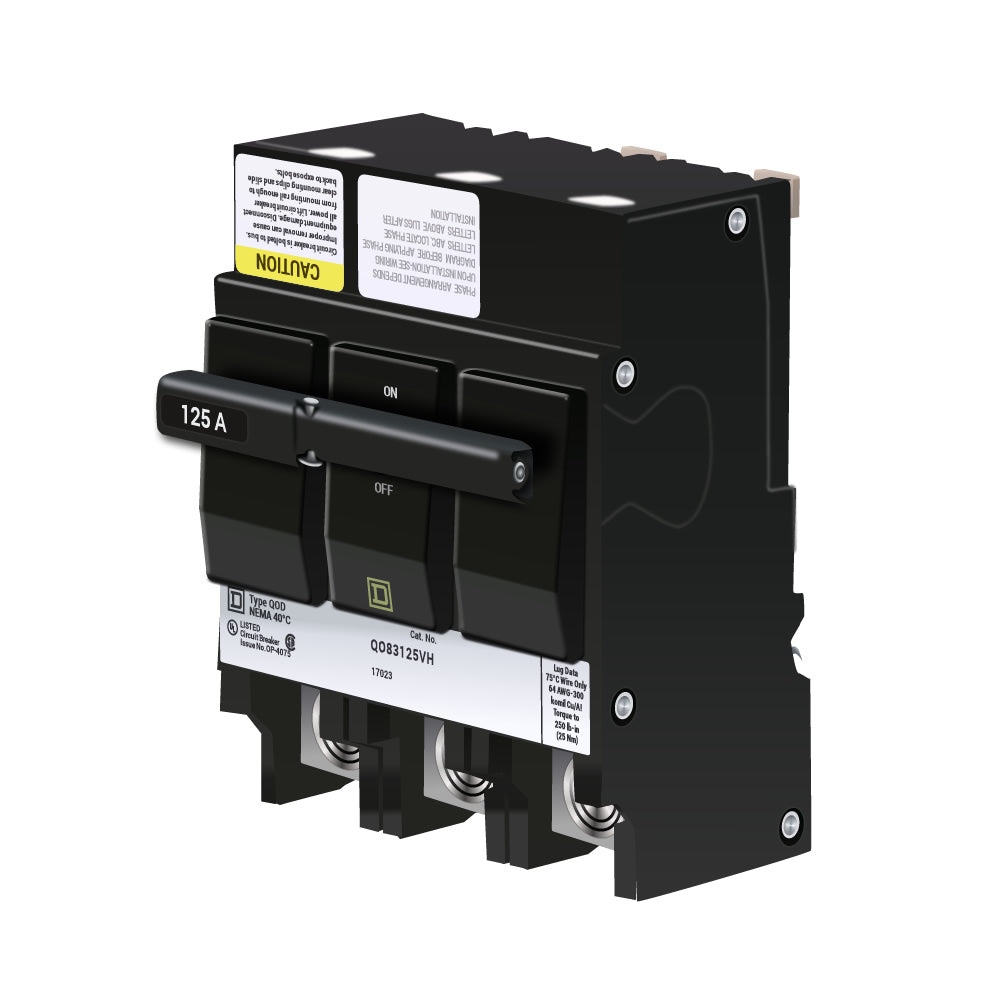

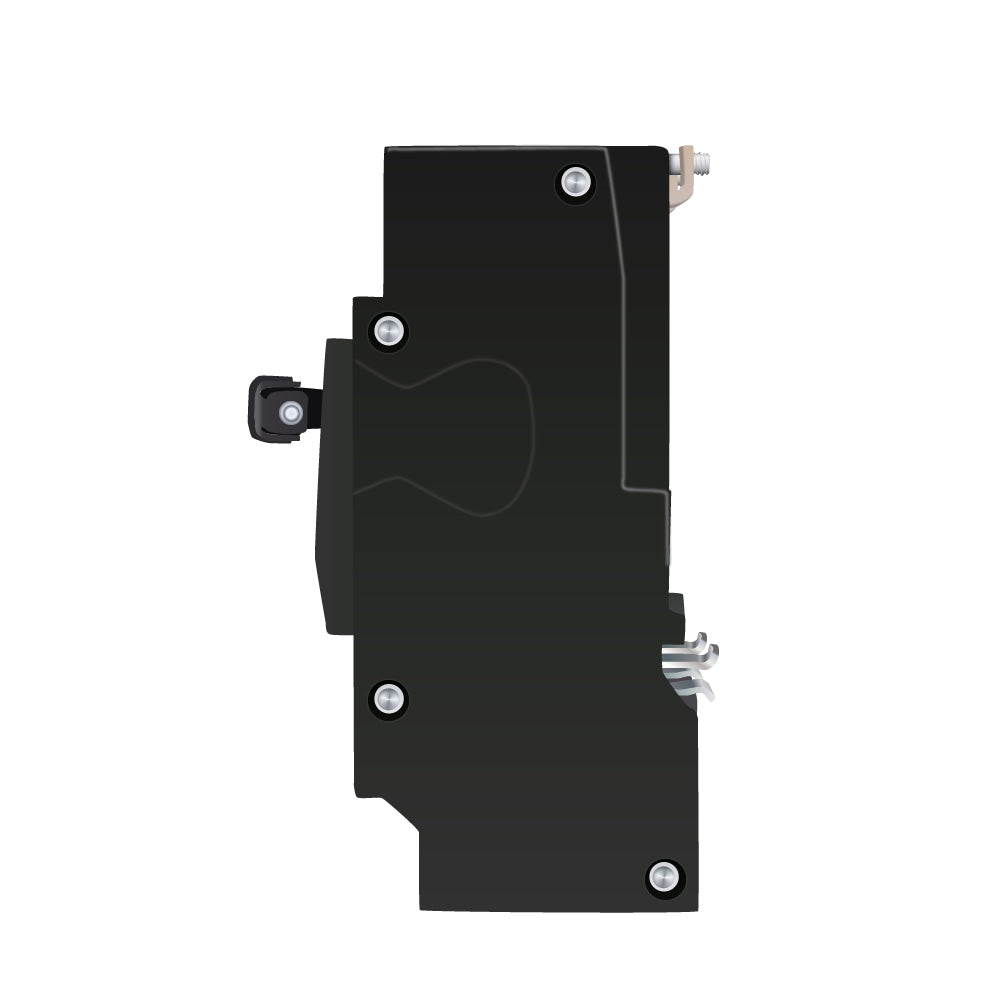

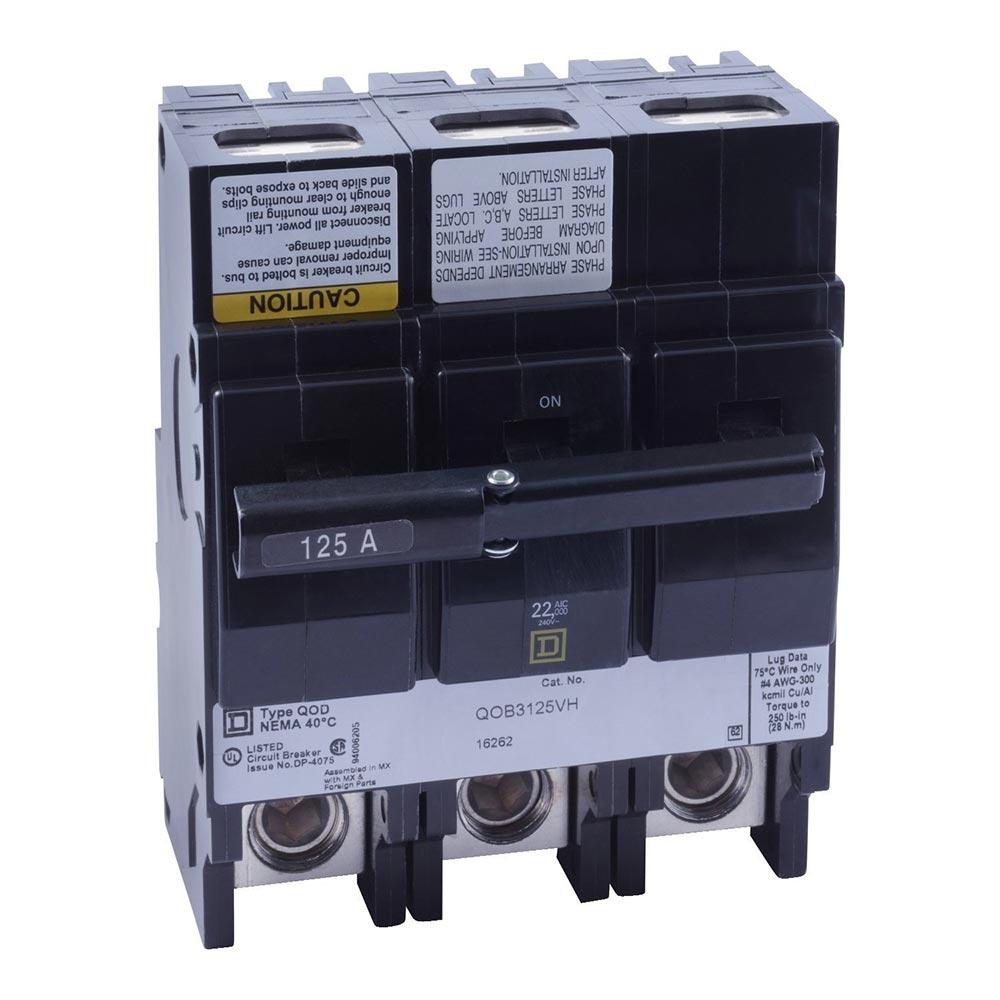

Square D QOB3125VH Circuit Breaker | 240V 125A 3P 22kA@240V Bolt-On QOB Series

Product Description:
The Square D QOB3125VH is a 3-pole Molded Case Circuit Breaker designed for 240V applications with a 125 amp rating. It features a high interrupting capacity of 22kA@240V and uses a reliable bolt-on connection for secure installation. This thermal magnetic breaker provides both long-time and instantaneous protection, making it suitable for demanding electrical systems.

Key Features:
✔ Part Number: QOB3125VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 240
✔ Amperage: 125
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 785901065470
✔ GTIN: 00785901065470
✔ Country of Origin: Mexico
✔ Dimensions: 4.5 in x 5.72 in x 5.71 in
✔ Weight: 1.79
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 4 Awg To 300 Kcmil (Aluminum/Copper)
