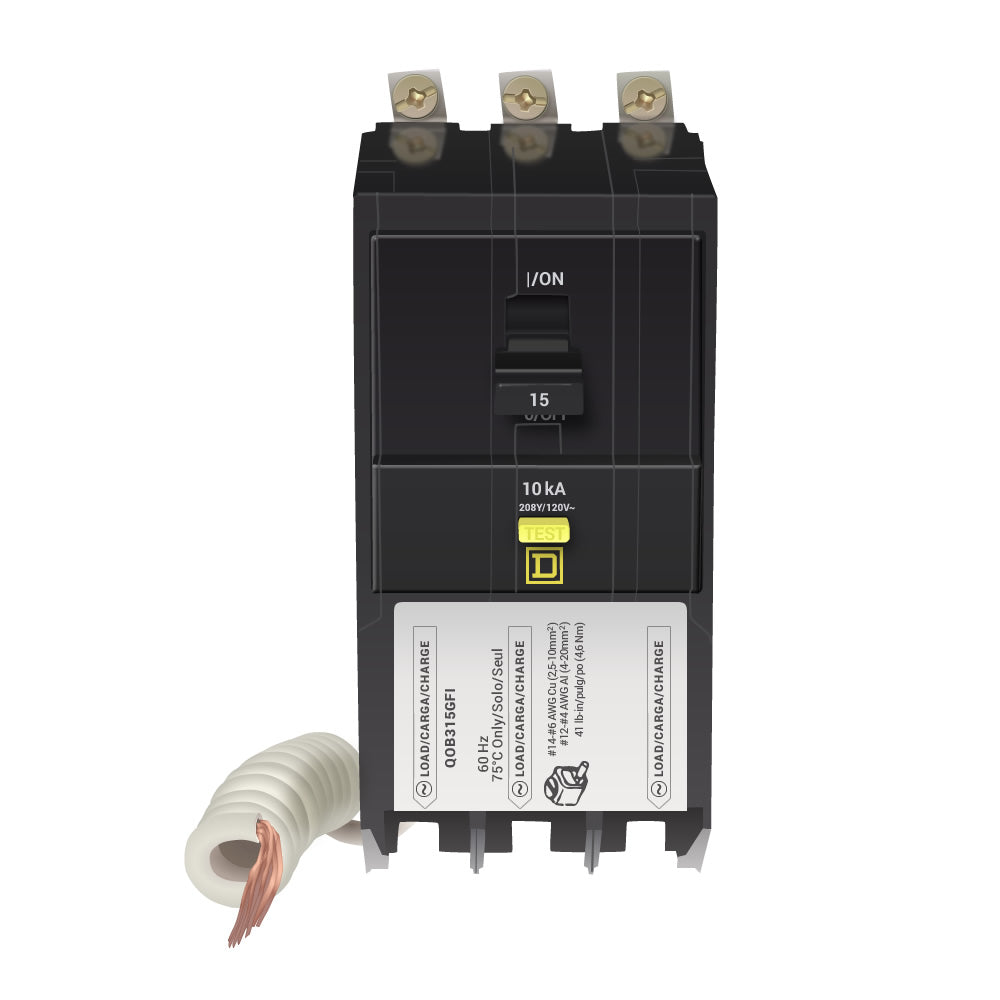

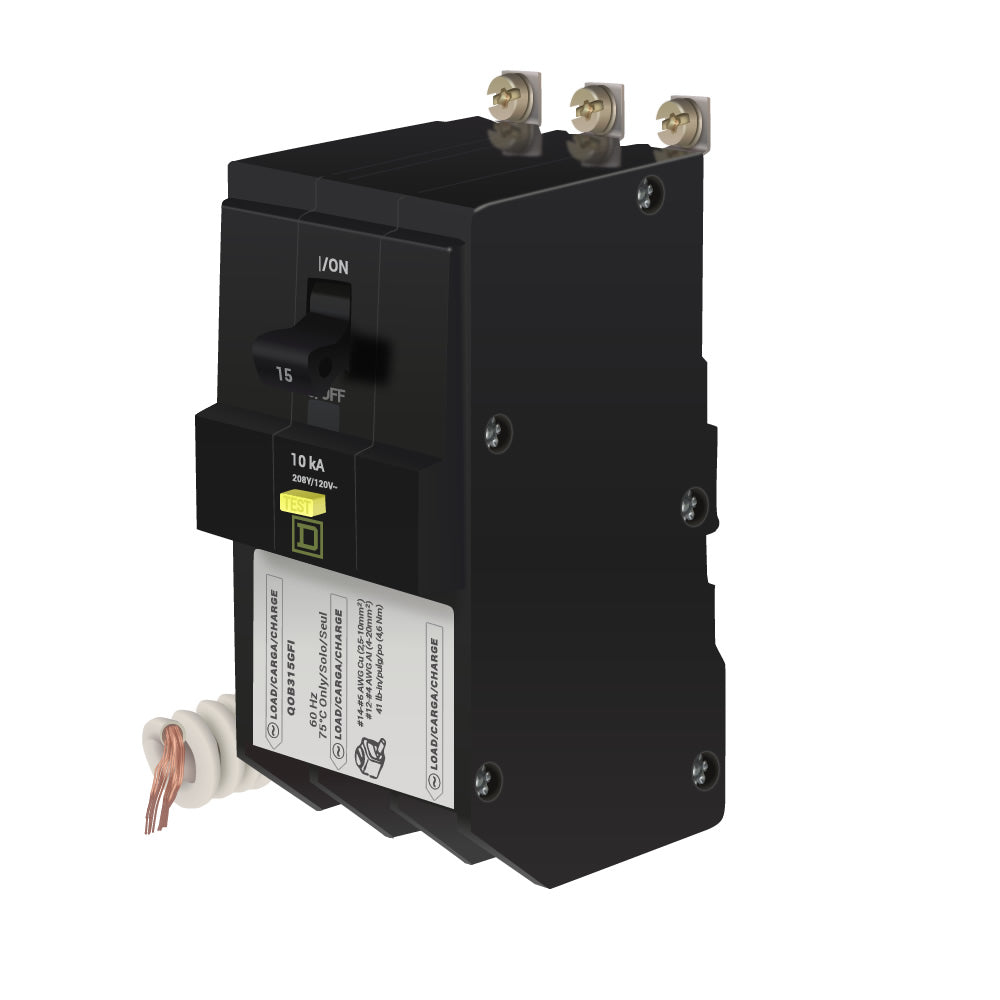

Square D QOB315GFI Circuit Breaker | 120/240V 15A 3P 10kA@240V Bolt-on QOB Series

Product Description:
The Square D QOB315GFI is a Molded Case Circuit Breaker from the QOB Series. It is a 3-pole, 15 amp breaker rated for 120/240 volts with a 10kA AIC rating at 240V. This model features bolt-on connections and thermal magnetic protection. It is designed for use in QO Load Centers and NQ Panelboards.

Key Features:
✔ Part Number: QOB315GFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240
✔ Amperage: 15
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 094714747771
✔ GTIN: 00785901811183
✔ Country of Origin: Mexico
✔ Dimensions: 2.24 in x 4.12 in x 4.13 in
✔ Weight: 2.41
✔ Panel Type: QO Load Centers and NQ Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: AWG 14, AWG 8, Copper/Aluminum
