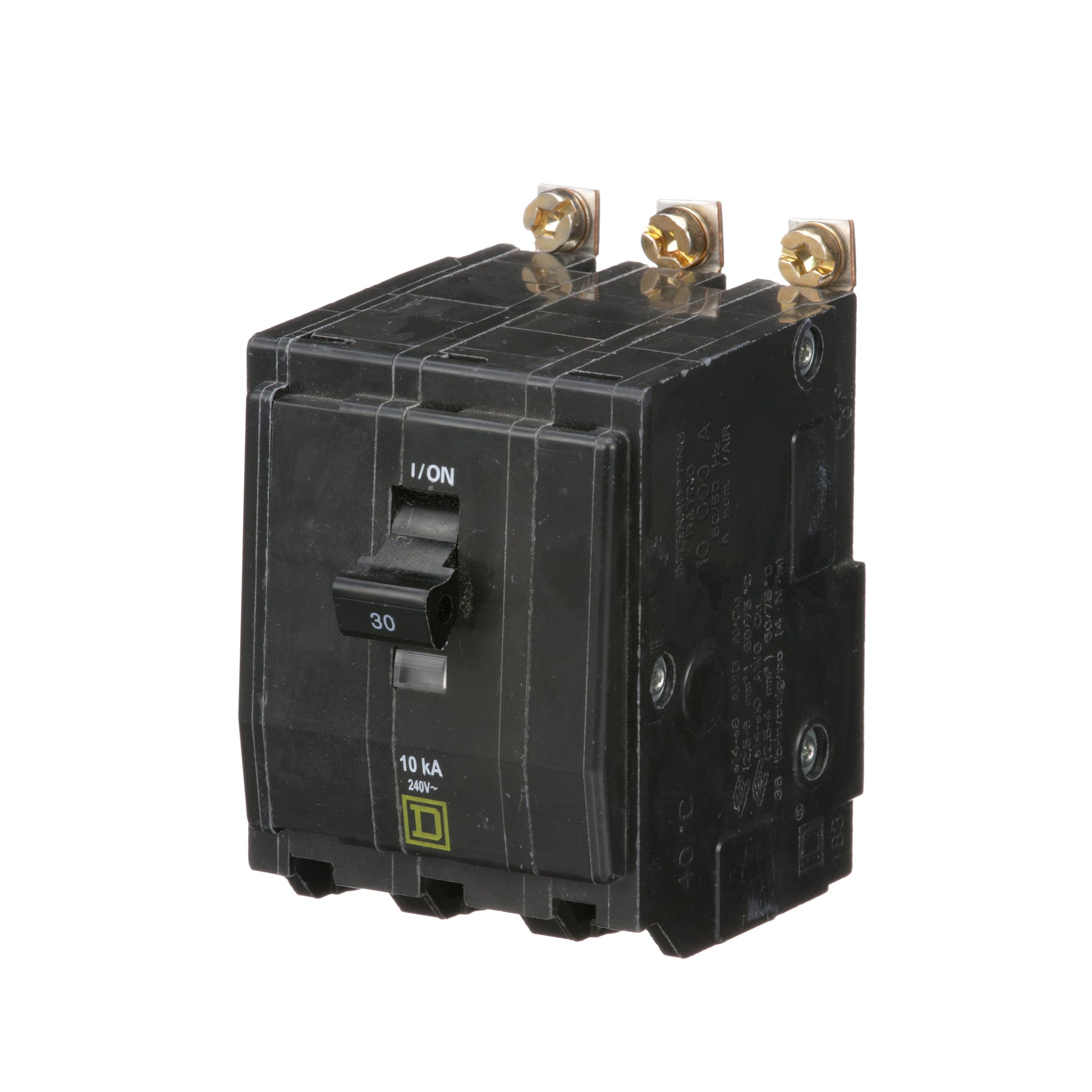

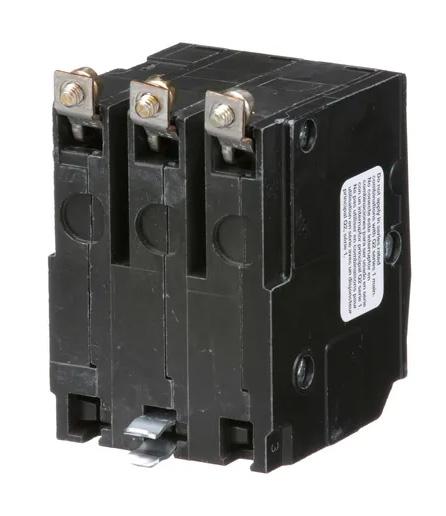

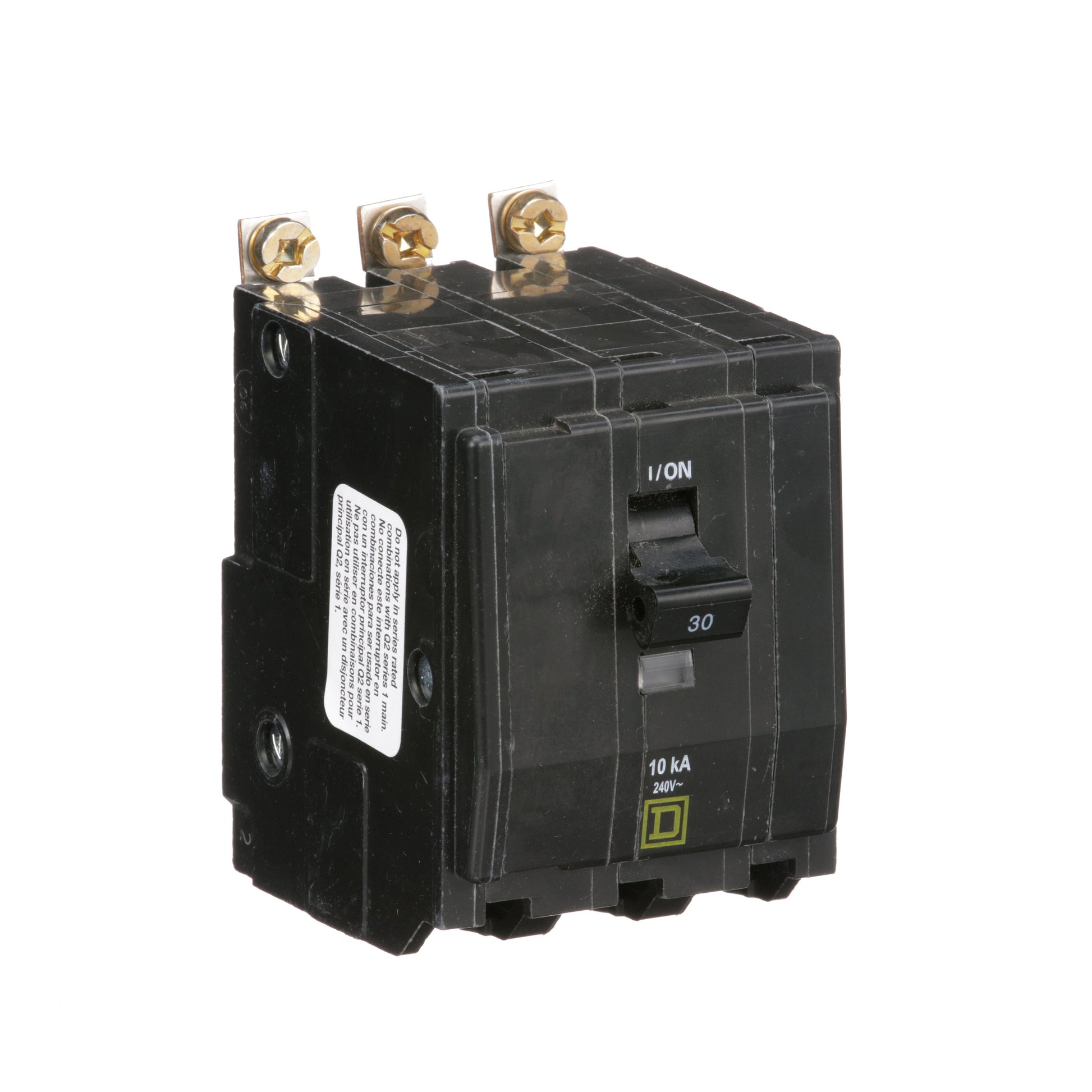

Square D QOB330 Circuit Breaker | 240V 30A 3P 10kA@240V Bolt-On QOB Series

Product Description:
The Square D QOB330 is a 3-pole molded case circuit breaker rated for 30 amps at 240 volts. It features thermal magnetic protection and a bolt-on connection type. This breaker is part of the QOB Series and is designed for use in Square D NQOD panelboards. It has an interrupting rating of 10kA@240V and is UL Listed and CSA certified.

Key Features:
✔ Part Number: QOB330
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 240
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 78590141712
✔ GTIN: 00785901417125
✔ Country of Origin: Mexico
✔ Dimensions: 2.25 in x 3 in x 2.99 in
✔ Weight: 0.8
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 14 To 8 Awg (Aluminum/Copper)
