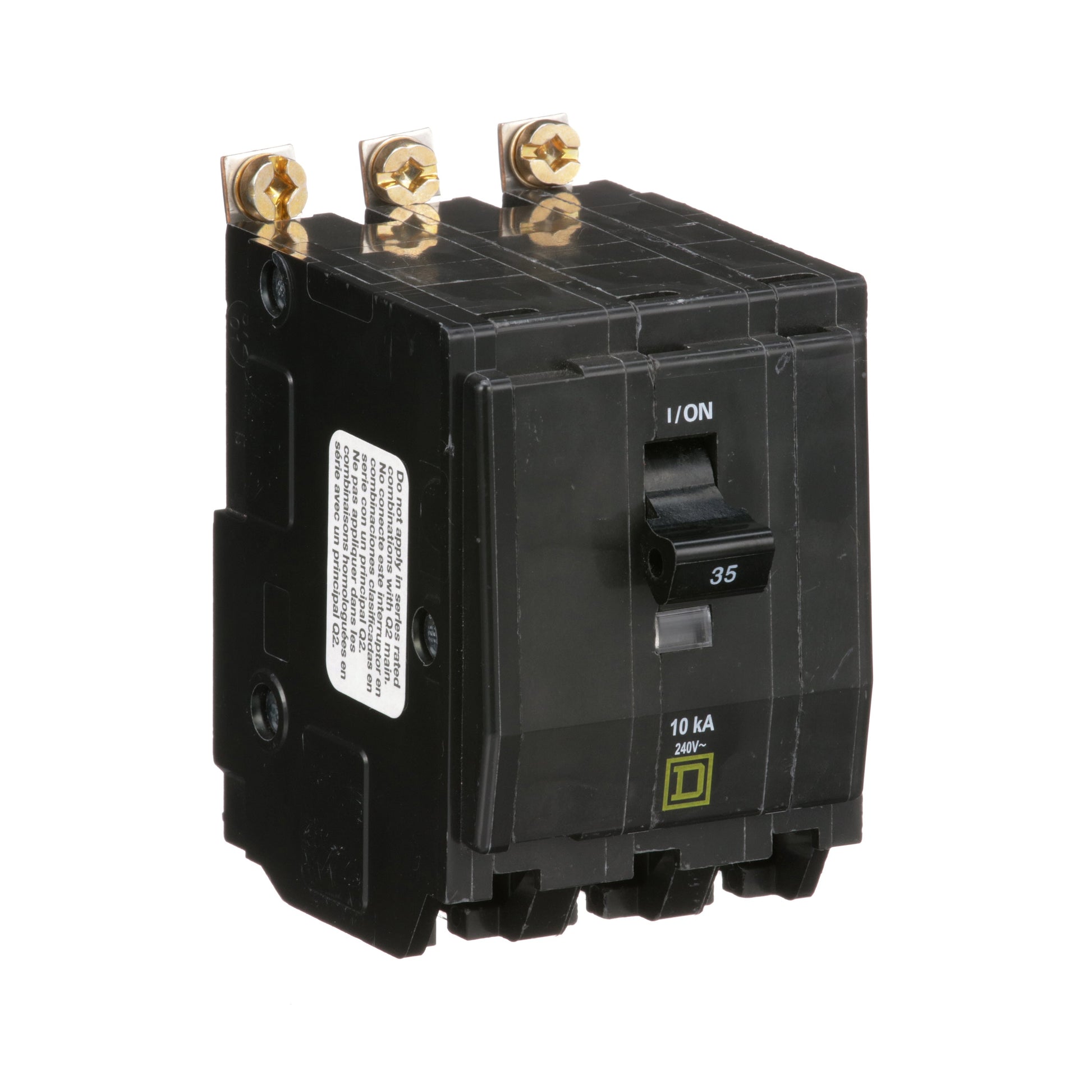

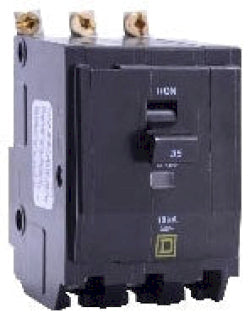

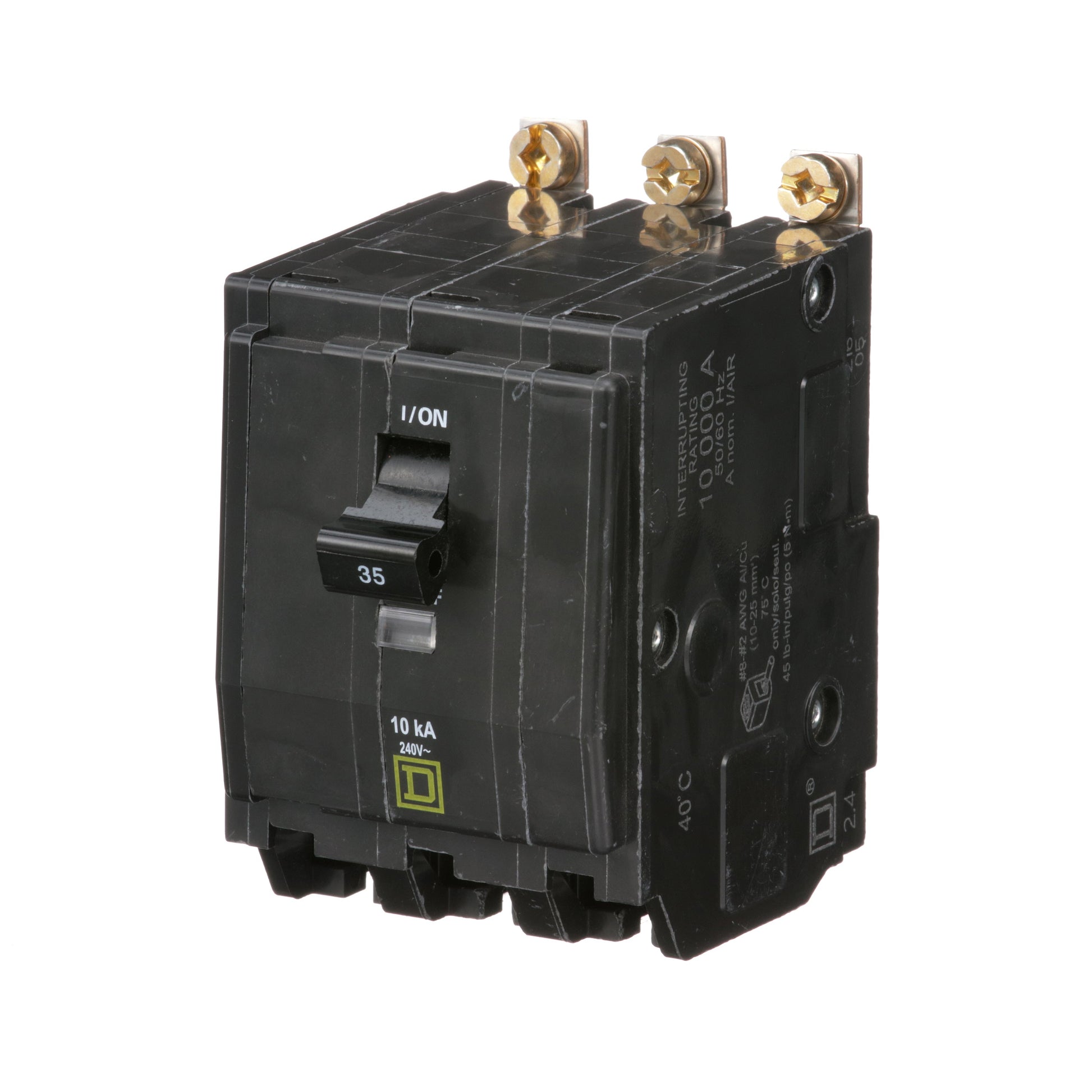

Square D QOB335 Circuit Breaker | 240V 35A 3P 10kA@240V Bolt-on QOB Series

Product Description:
The Square D QOB335 is a 3-pole molded case circuit breaker rated for 35 amps at 240 volts. It features thermal magnetic protection and a bolt-on connection for secure installation. This breaker is part of the QOB Series and is suitable for use in Square D NQOD panelboards.

Key Features:
✔ Part Number: QOB335
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 240
✔ Amperage: 35
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901368335
✔ GTIN: 00785901368335
✔ Country of Origin: Mexico
✔ Dimensions: 2.25 in x 3.12 in x 3.11 in
✔ Weight: 0.91
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 8 To 2 Awg (Aluminum/Copper)
