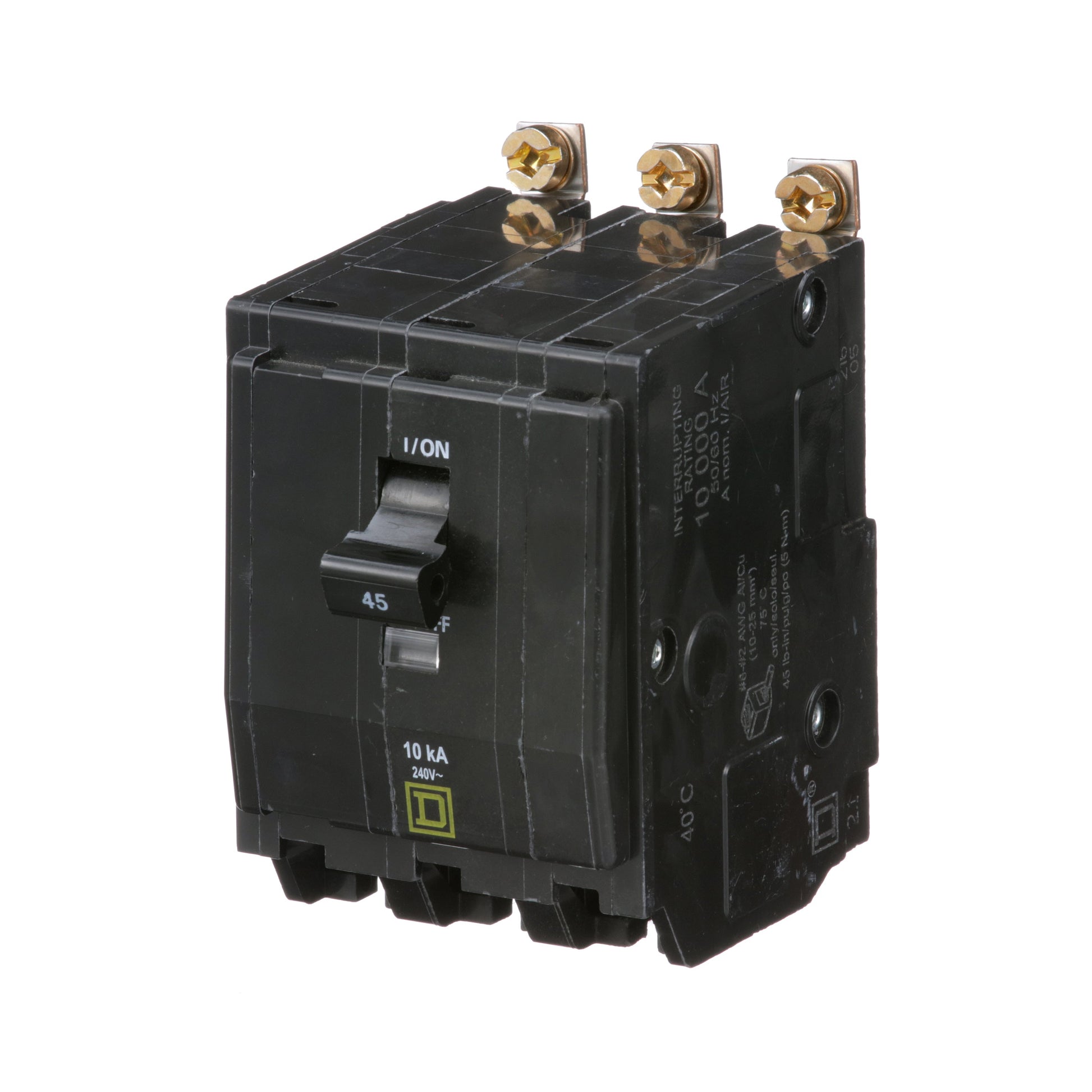

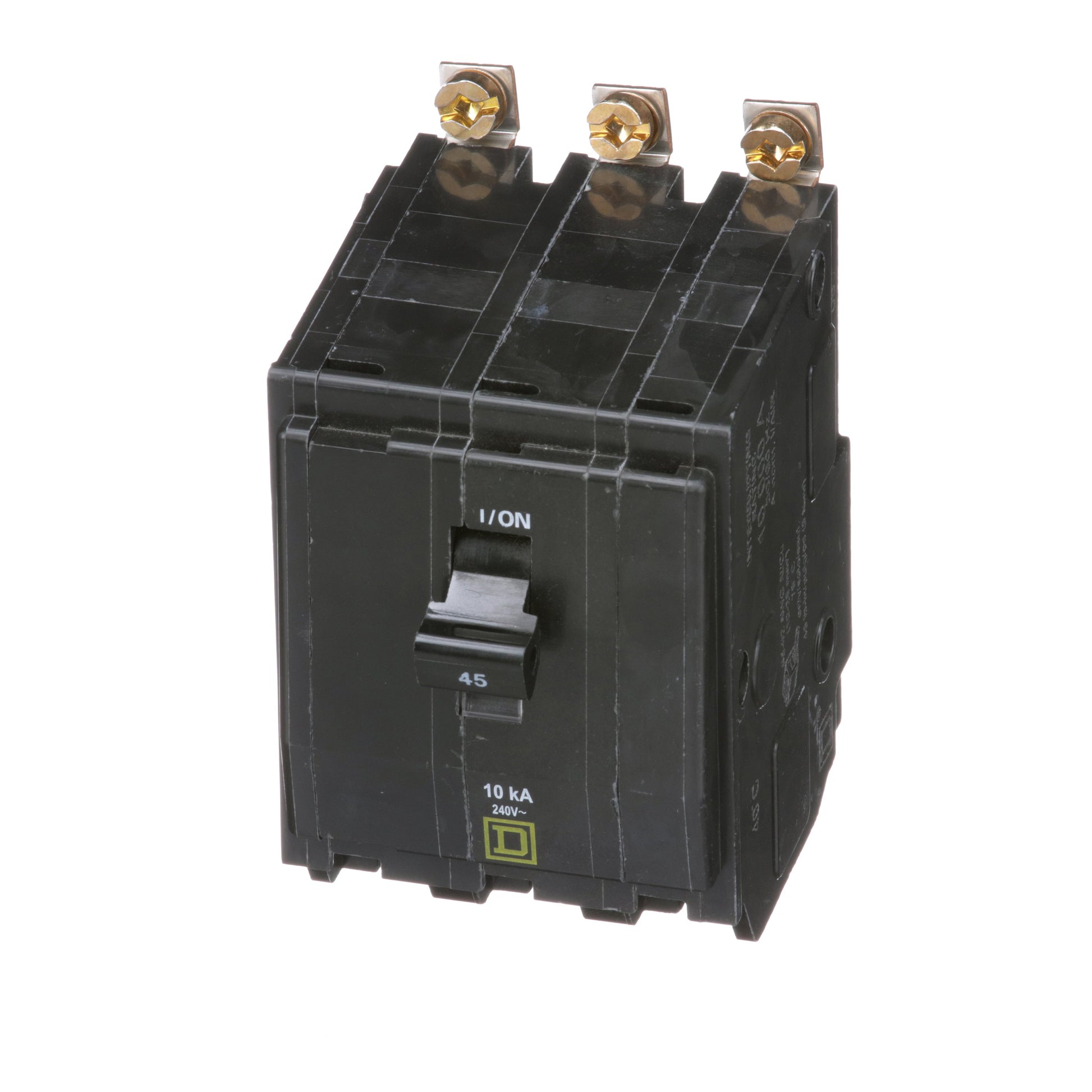

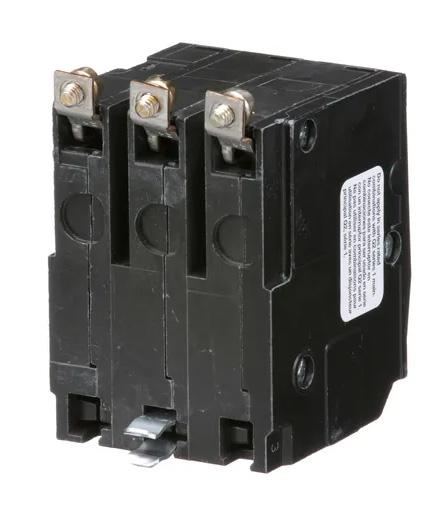

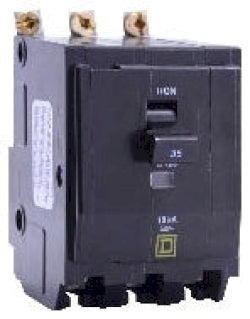

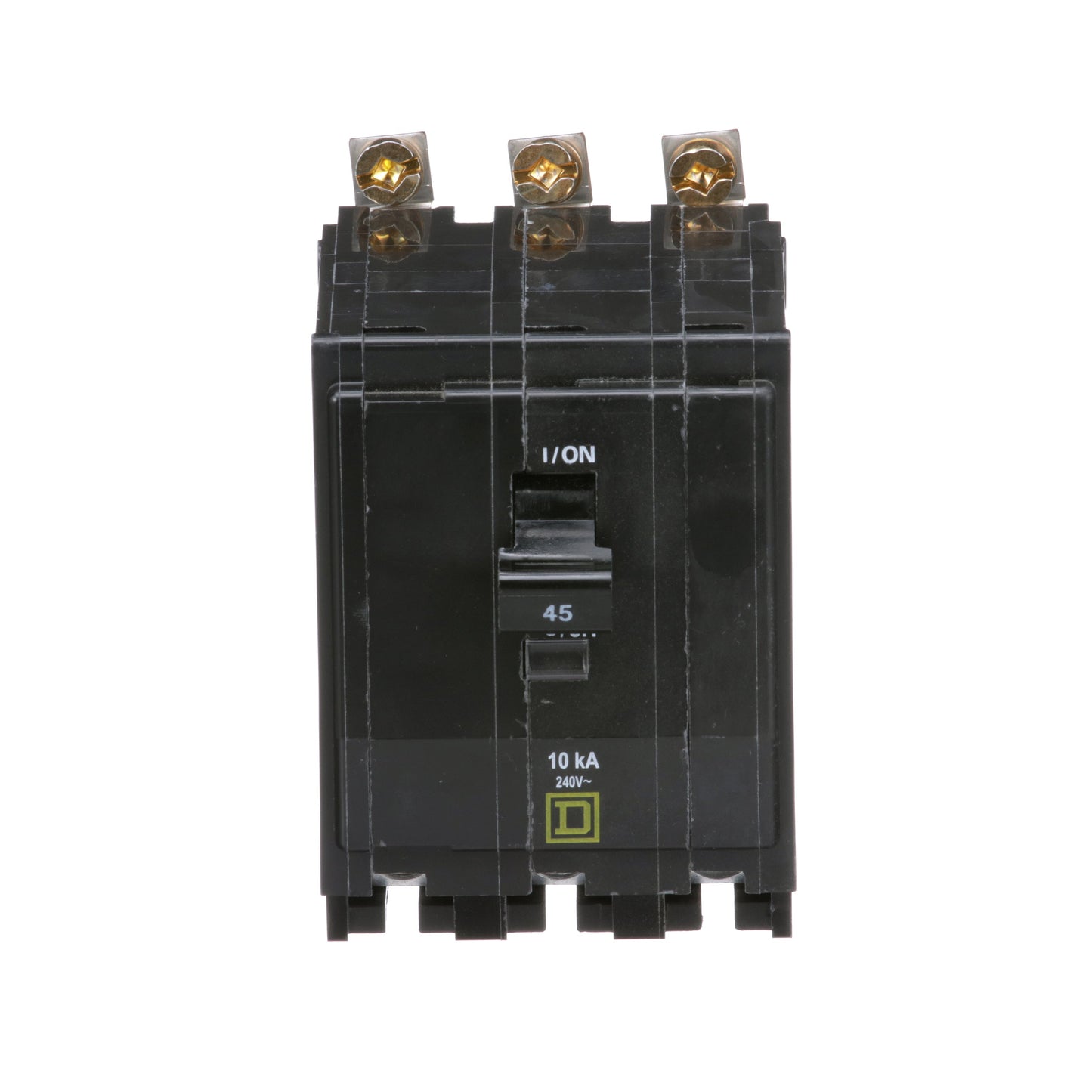

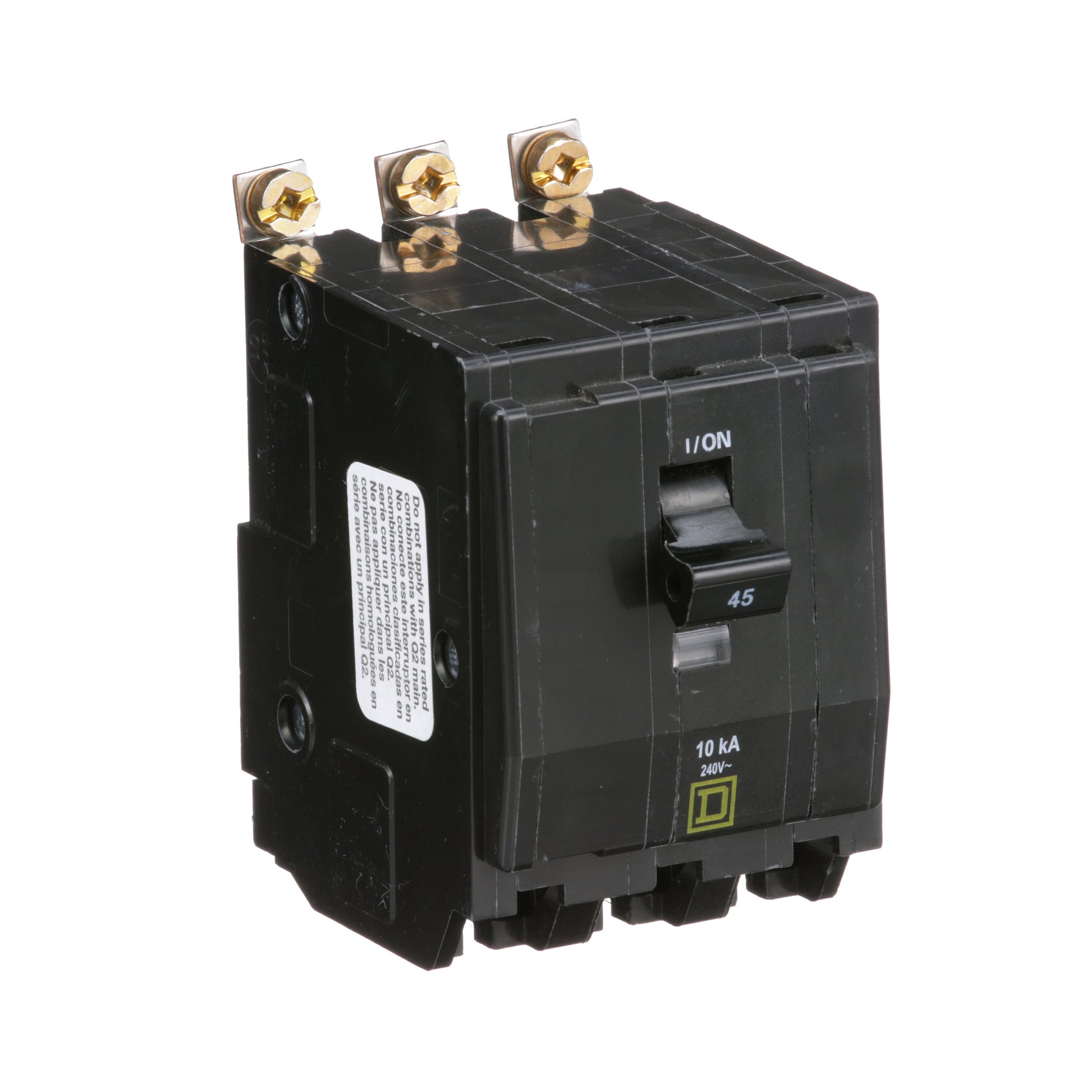

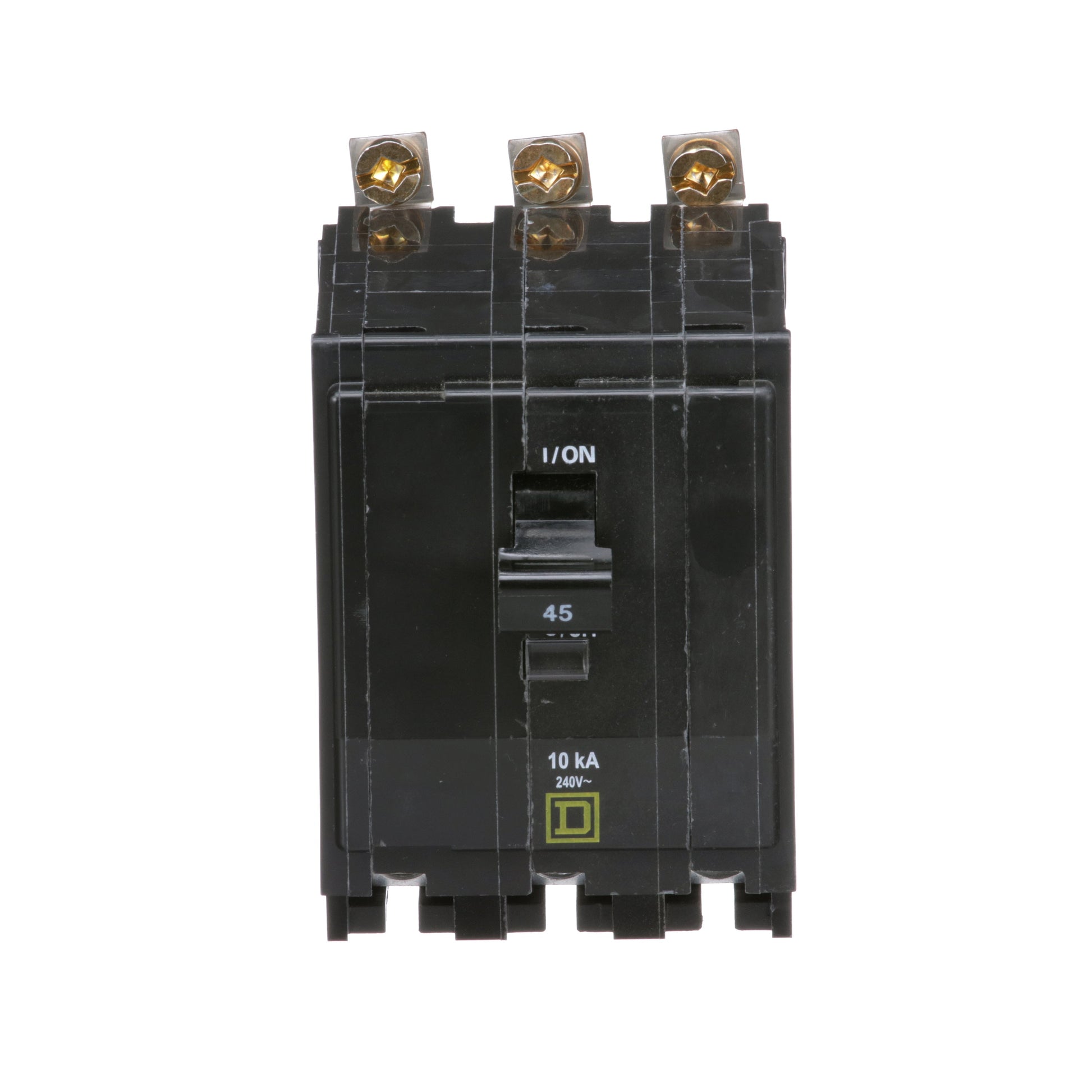

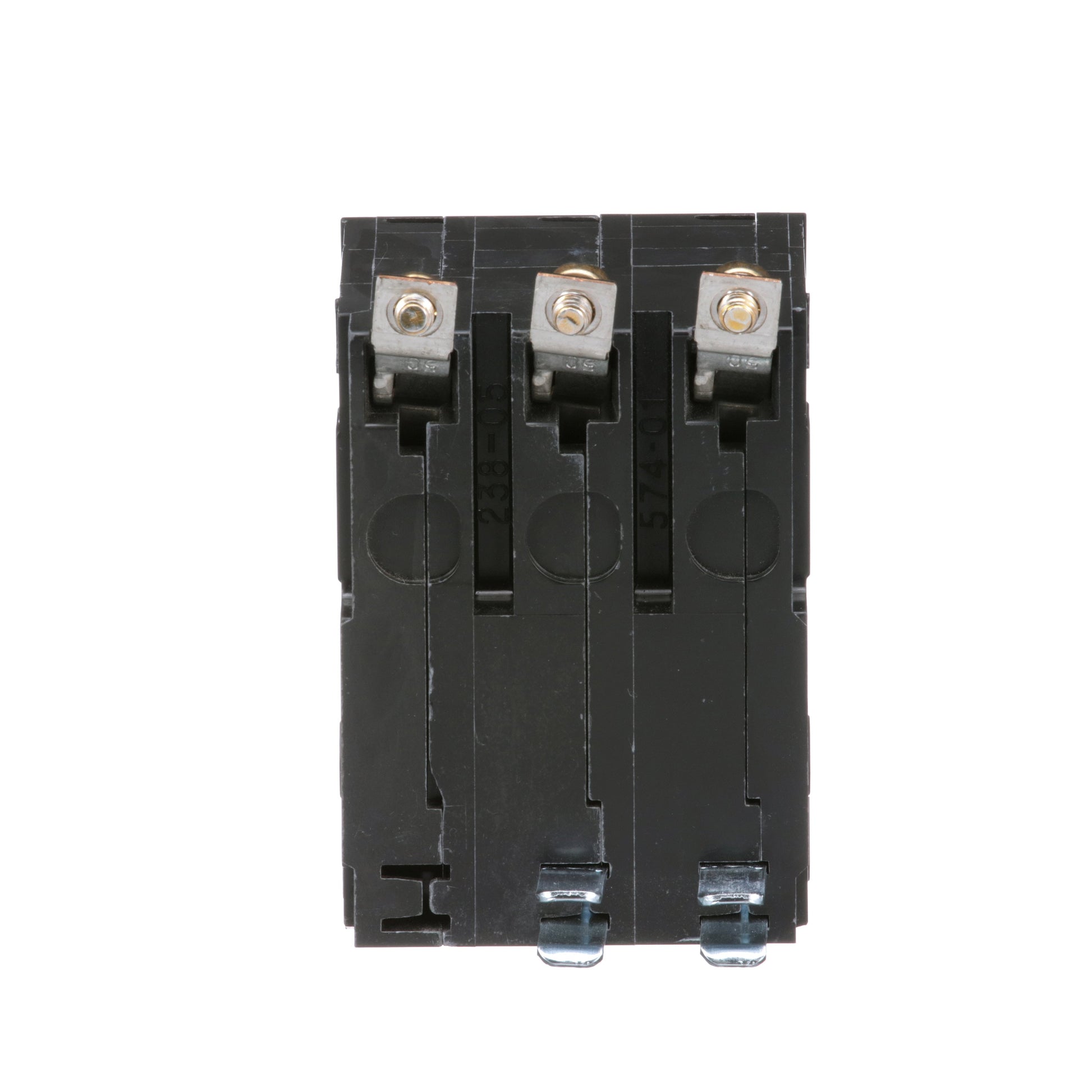

Square D QOB345 Circuit Breaker | 240V 45A 3P 10kA@240V Bolt-On QOB Series

Product Description:
The Square D QOB345 is a 3-pole molded case circuit breaker designed for 240V applications with a 45 amp rating. It features thermal magnetic protection and a bolt-on connection for secure installation. This breaker is part of the QOB Series and is suitable for use in Square D NQOD panelboards. It meets industry standards including UL Listing and CSA certification.

Key Features:
✔ Part Number: QOB345
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 240
✔ Amperage: 45
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901368342
✔ GTIN: 00785901368342
✔ Country of Origin: Mexico
✔ Dimensions: 2.24 in x 3.12 in x 3.11 in
✔ Weight: 0.84
✔ Panel Type: Square D NQOD Panelboards
✔ Standards: CSA, UL Listed
✔ Certification: UL Listed
✔ Wire Size: 8 To 2 Awg (Aluminum/Copper)
