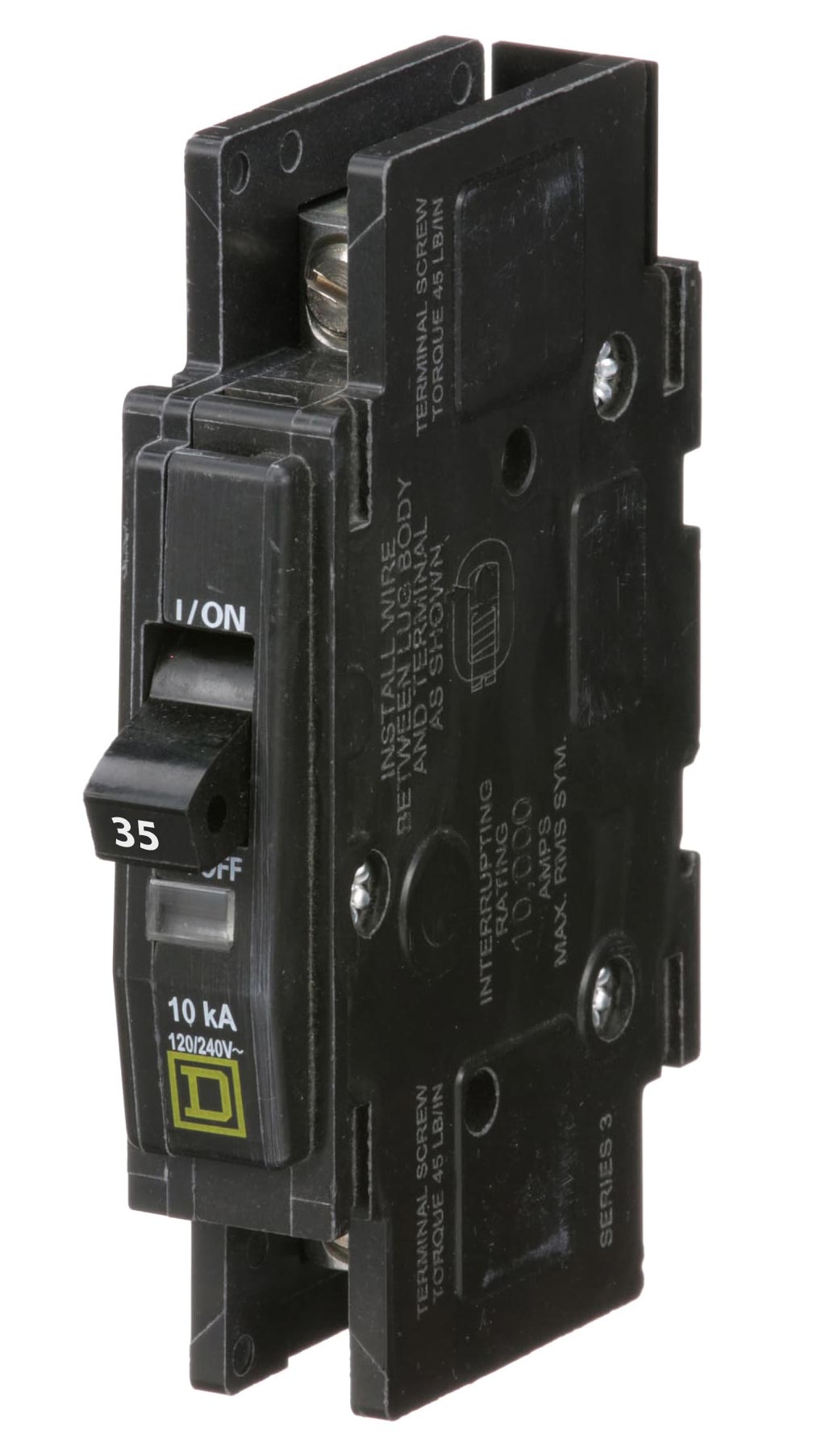

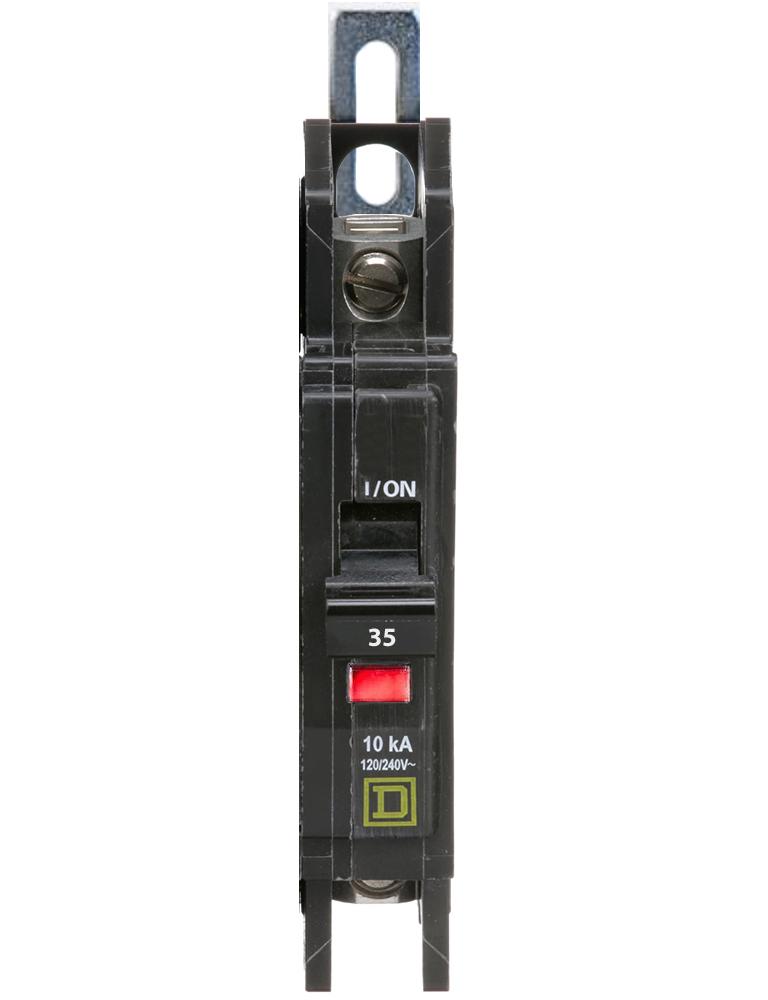

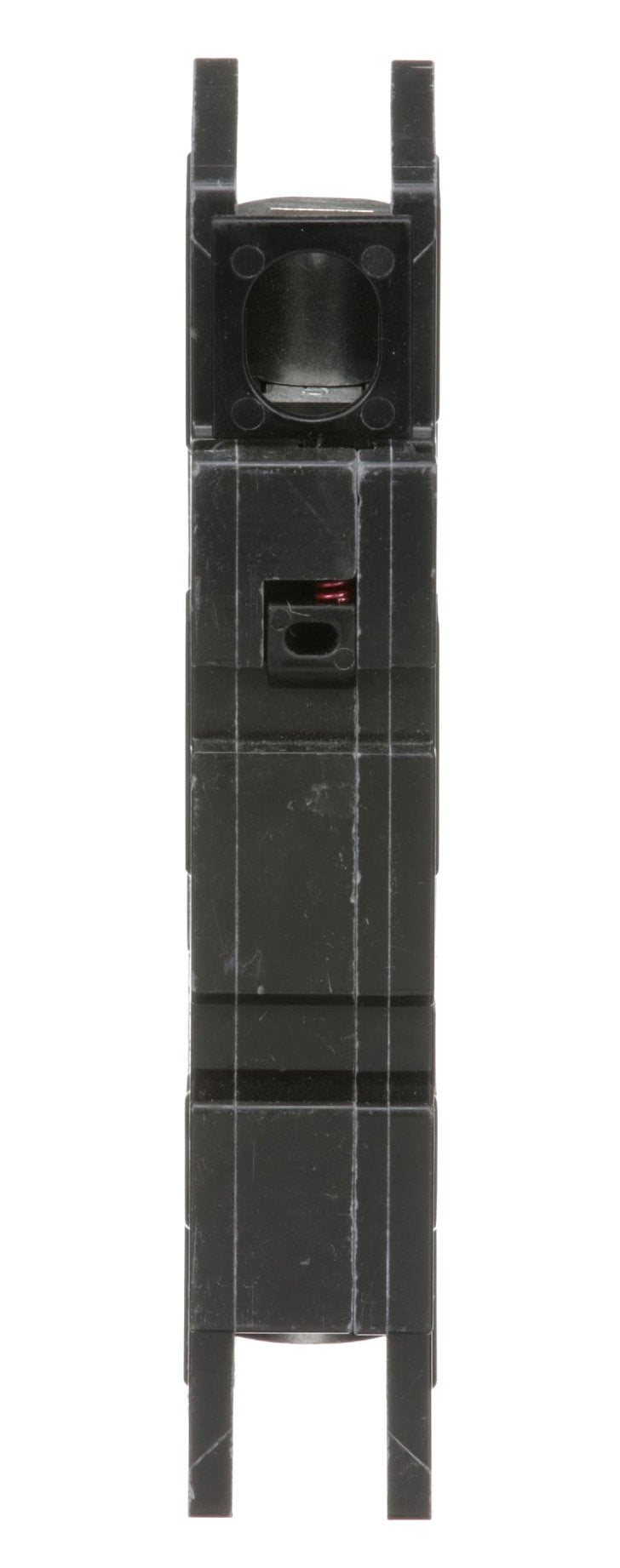

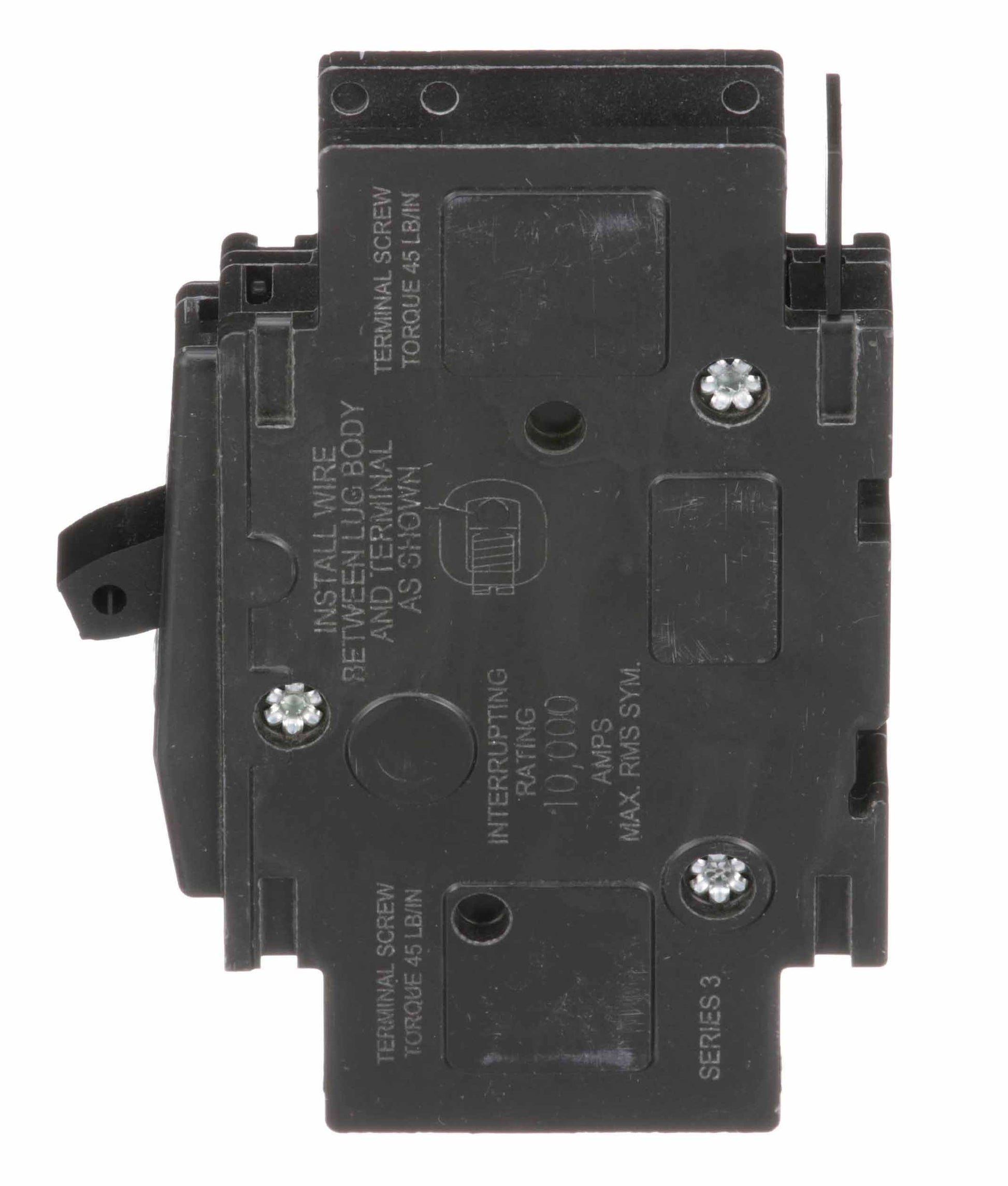

Square D QOU135 Circuit Breaker | 120V 135A 1P 10kA@120V Unit Mount QOU Series

Product Description:
The Square D QOU135 is a Molded Case Circuit Breaker from the QOU Series. It is a 1-pole, 135 amp breaker rated for 120 volts with an AIC rating of 10kA@120V. This unit features thermal magnetic protection and uses a unit mount connection for secure installation. It is designed for reliable performance in electrical systems.

Key Features:
✔ Part Number: QOU135
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120
✔ Amperage: 135
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Unit Mount
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901489092
✔ GTIN: 00785901489092
✔ Country of Origin: Mexico
✔ Dimensions: Height 4.05 in (102.87 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC - CSA - UL listed
✔ Wire Size: AWG 14...AWG 2 aluminum/copper
