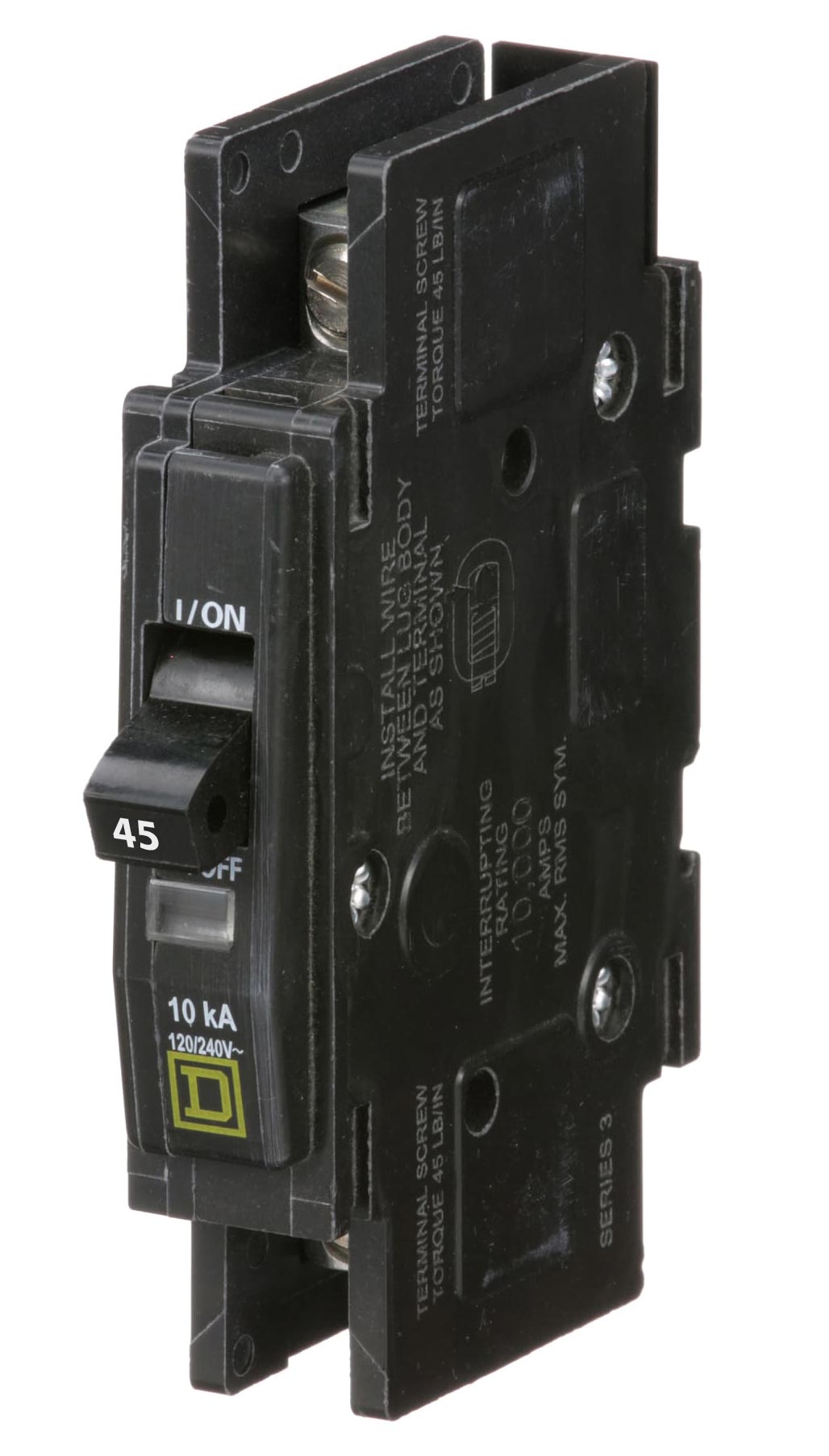

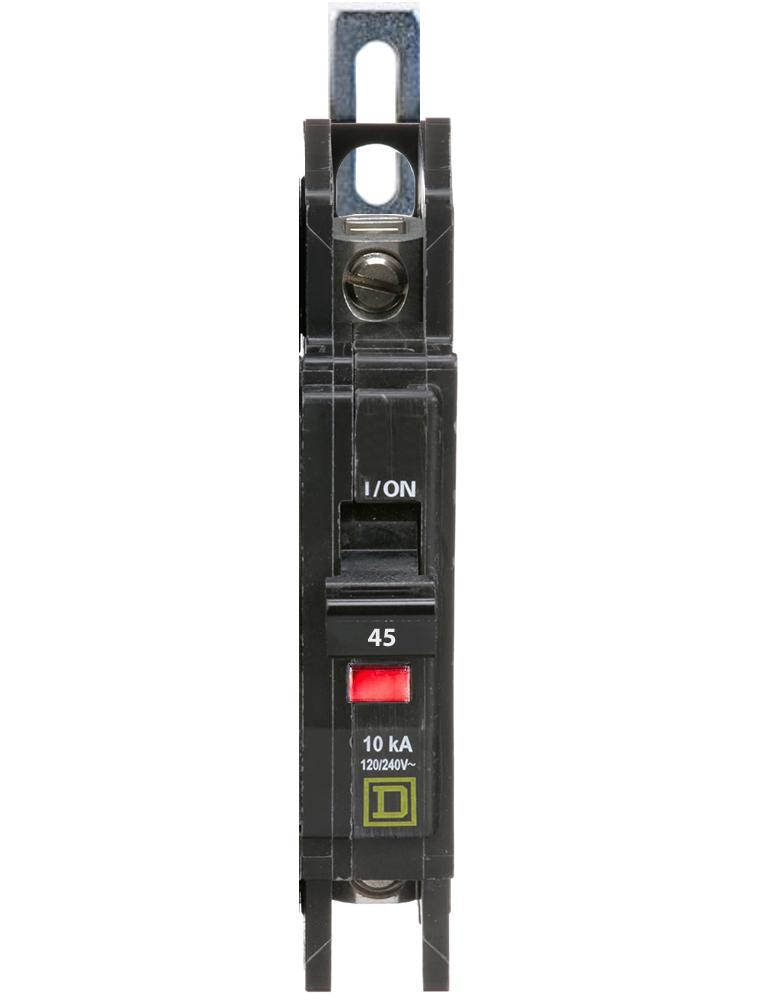

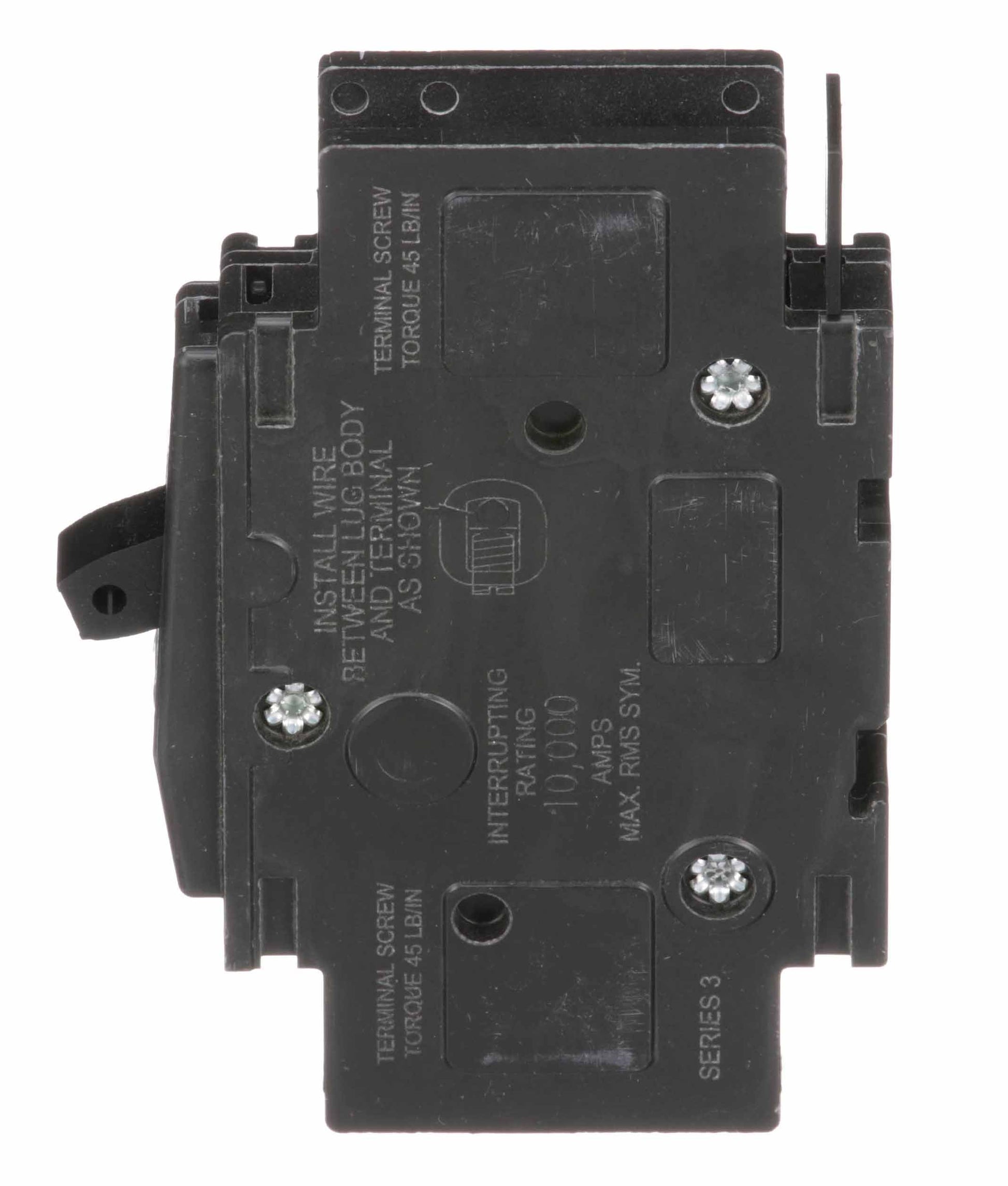

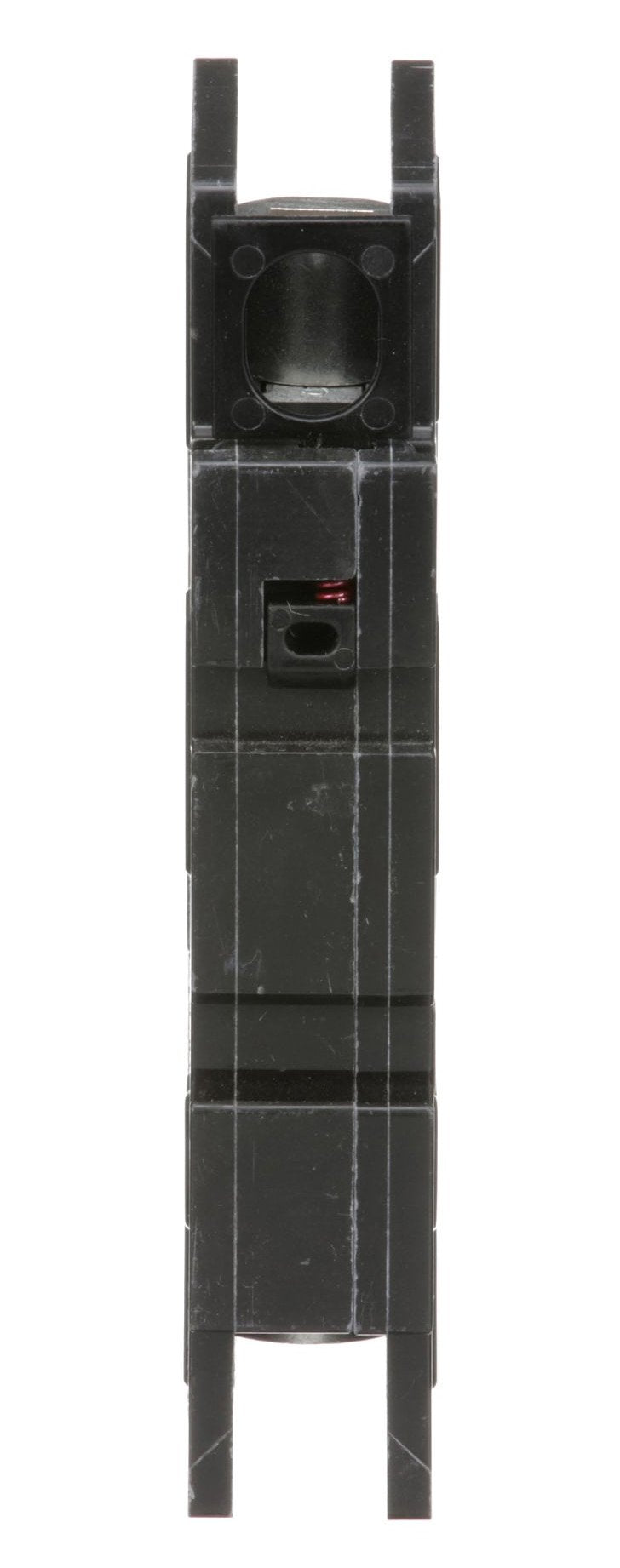

Square D QOU145 Circuit Breaker | 120V 45A 1P 10kA@120V Bolt-On QOU Series
Square D QOU145 Circuit Breaker | 120V 45A 1P 10kA@120V Bolt-On QOU Series
Price:
Sale
Sold out
Regular price
$39.61 USD
Regular price
$750.00 USD
Sale price
$39.61 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D QOU145 is a Molded Case Circuit Breaker from the QOU Series. It features a 1 pole, 120 Volt, 45 amp rating with a 10kA@120V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: QOU145
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120
✔ Amperage: 45
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 785901489139
✔ GTIN: 00785901489139
✔ Dimensions: Height 4.05 in (102.87 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Certification: UL listed - IEC - CSA
✔ Wire Size: AWG 14...AWG 2 aluminum/copper
The Square D QOU145 is a Molded Case Circuit Breaker from the QOU Series. It features a 1 pole, 120 Volt, 45 amp rating with a 10kA@120V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: QOU145
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120
✔ Amperage: 45
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 785901489139
✔ GTIN: 00785901489139
✔ Dimensions: Height 4.05 in (102.87 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Certification: UL listed - IEC - CSA
✔ Wire Size: AWG 14...AWG 2 aluminum/copper
