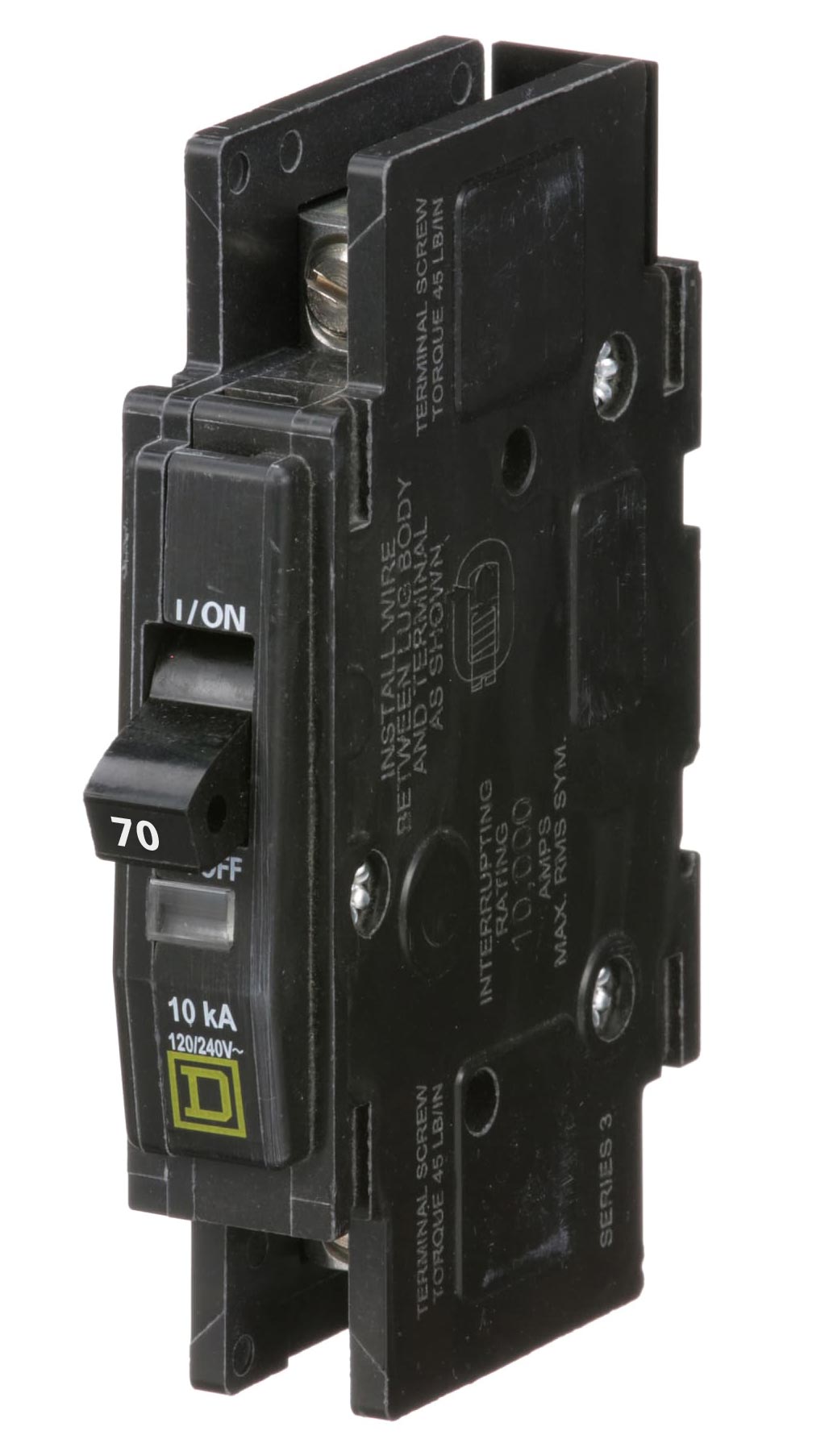

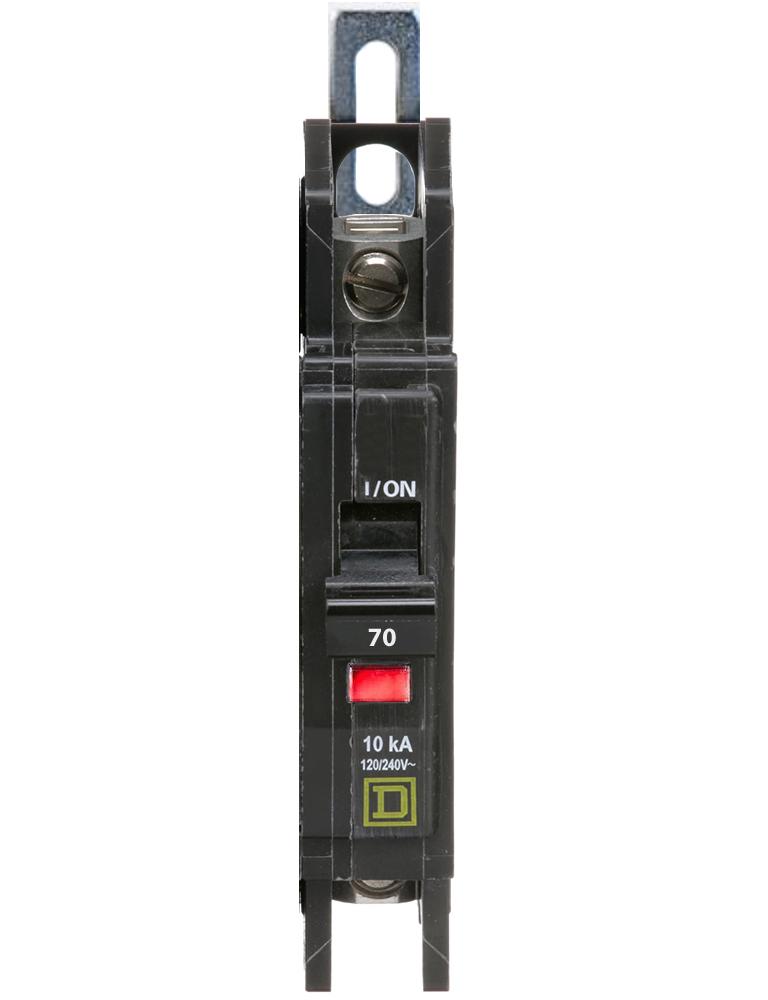

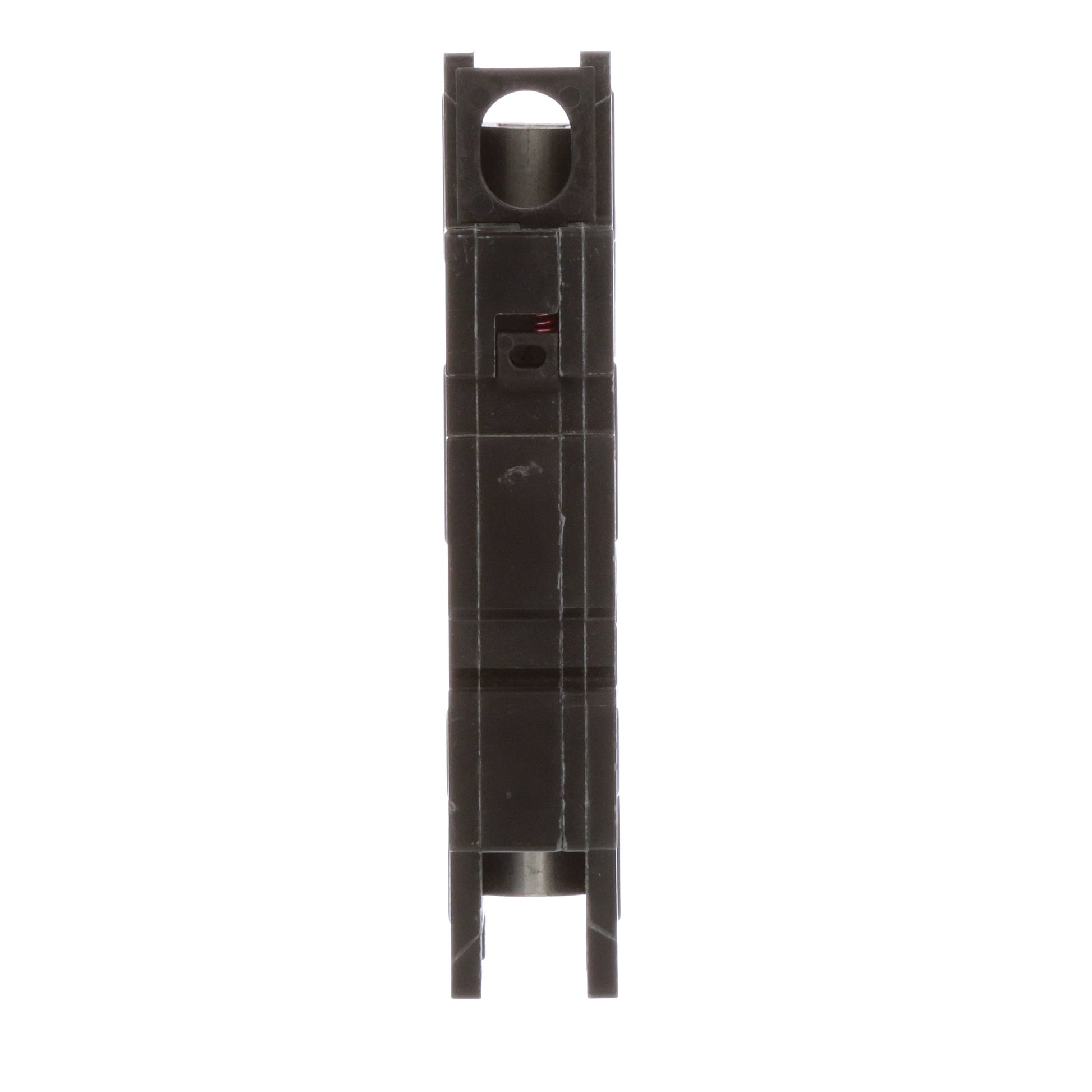

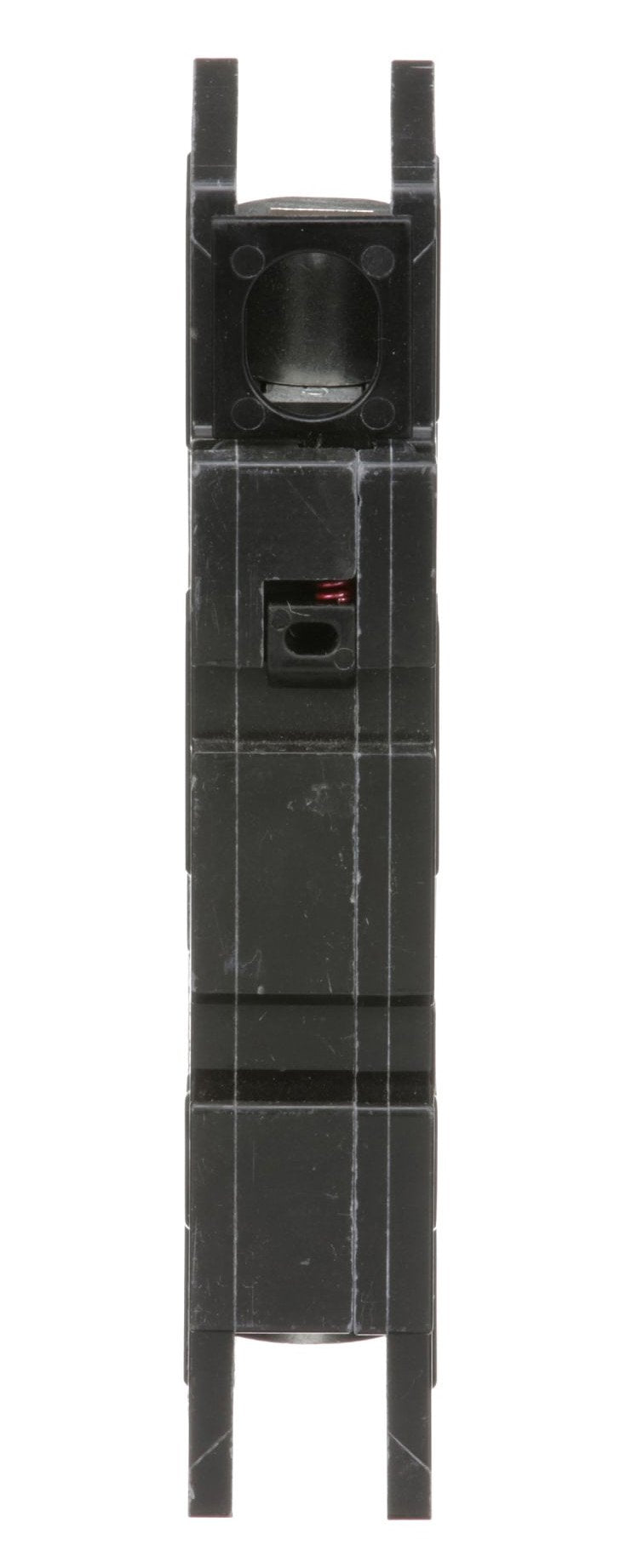

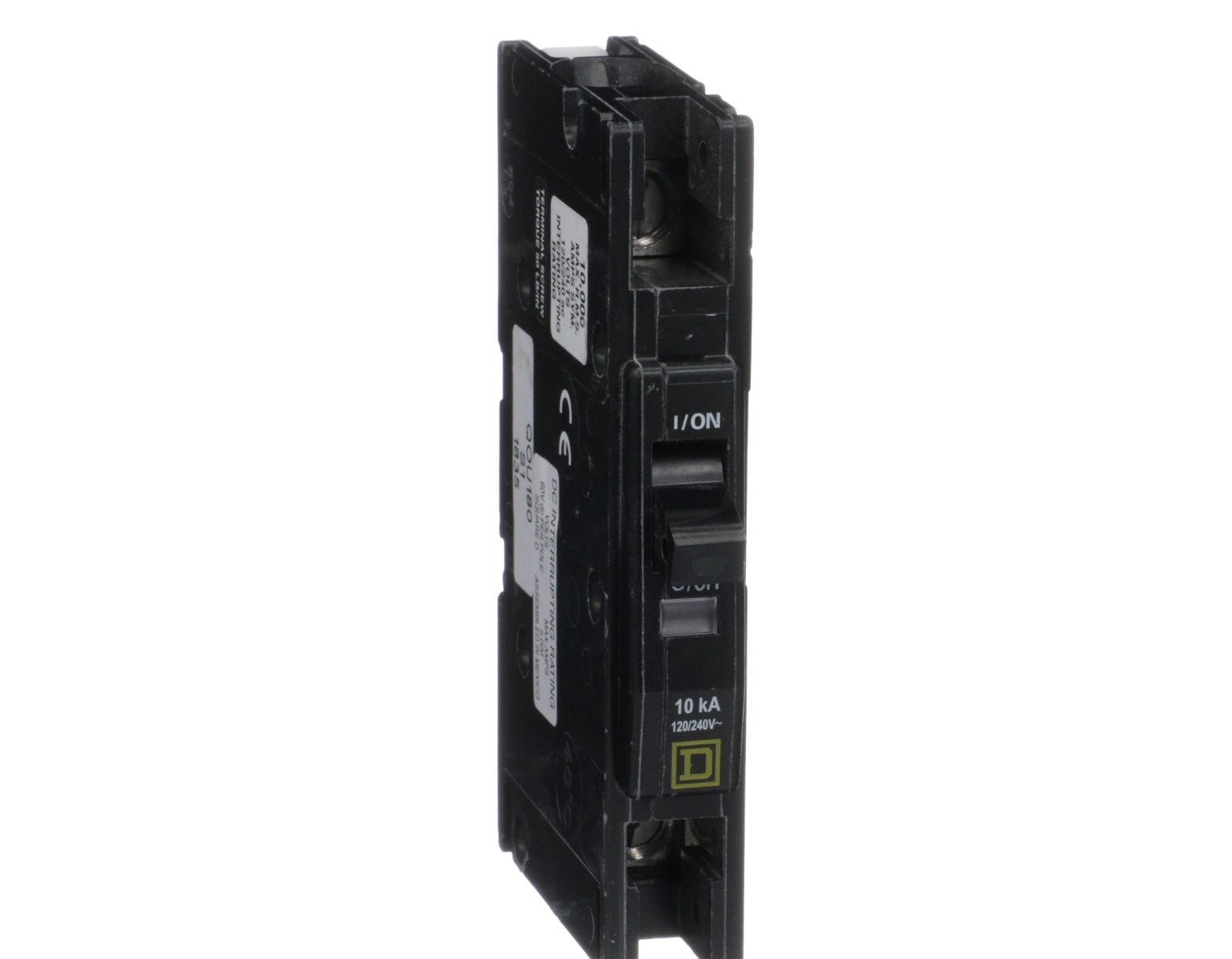

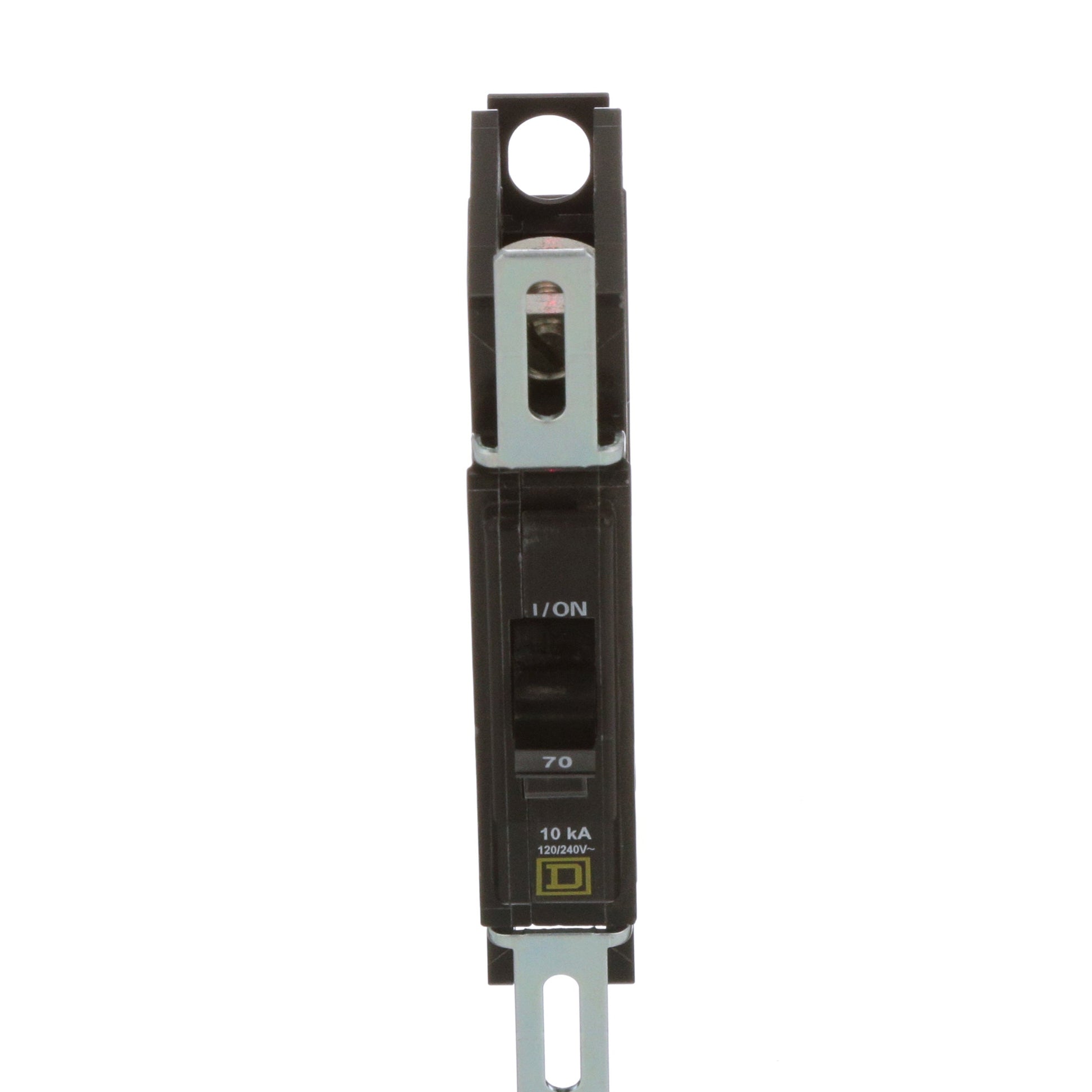

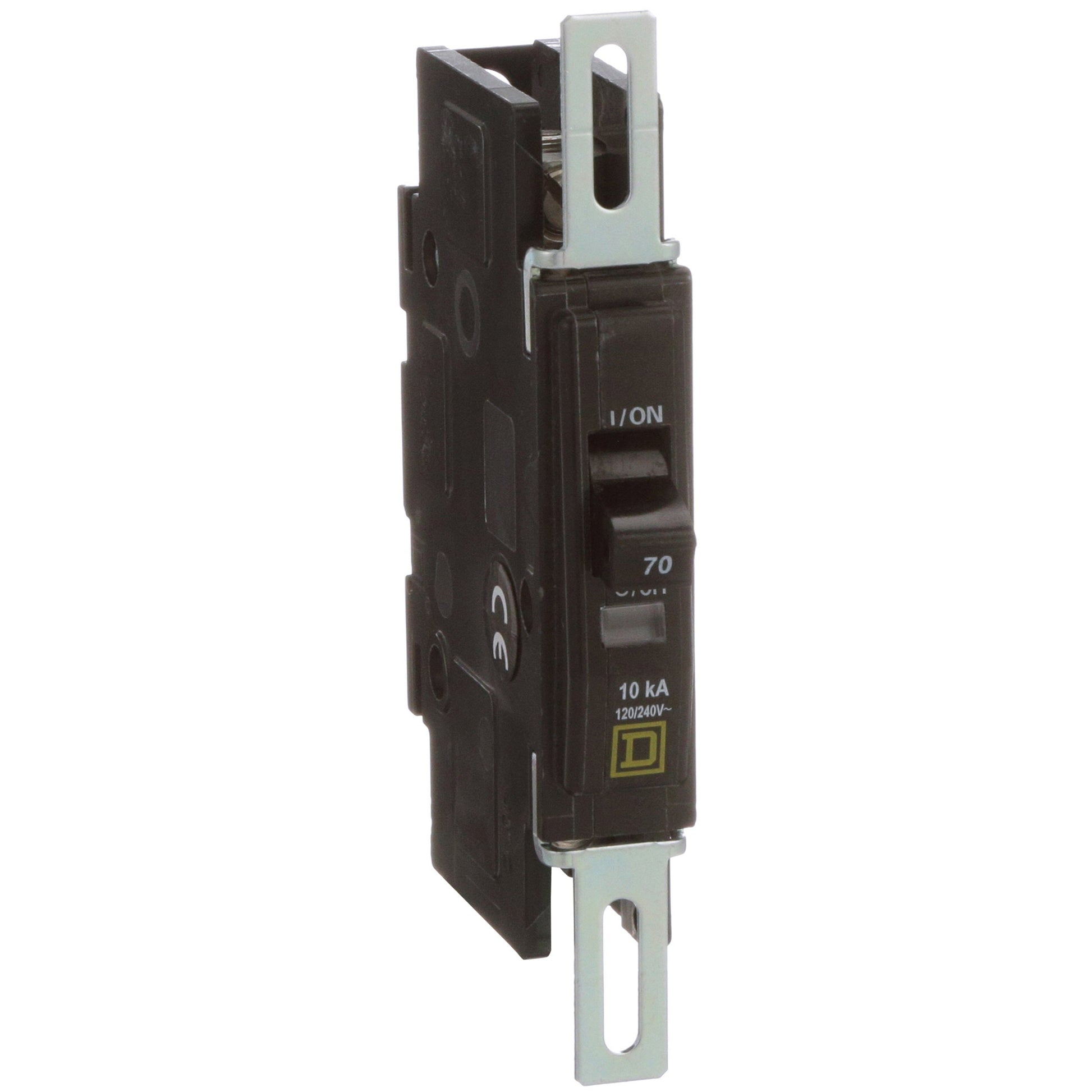

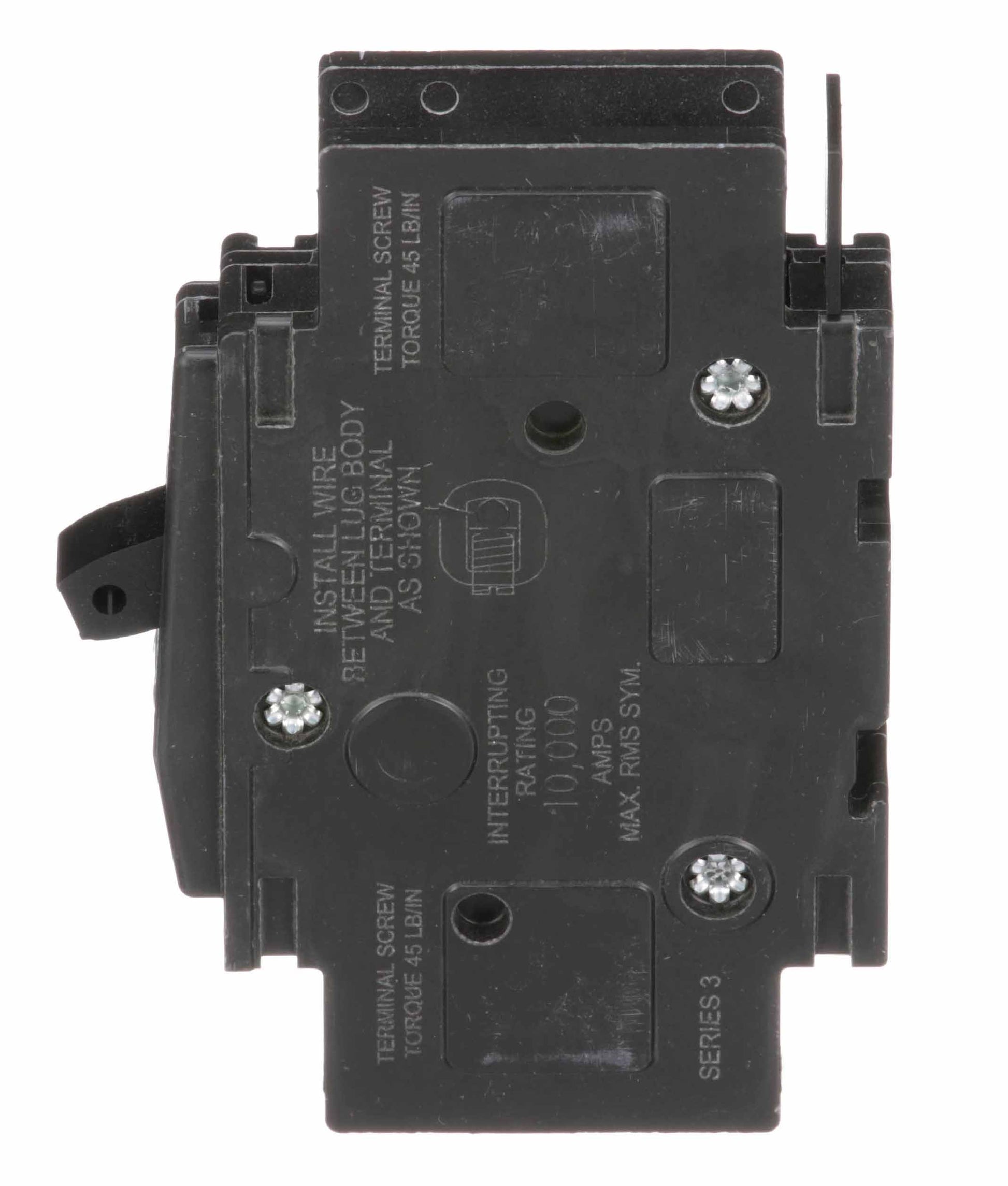

Square D QOU170 Circuit Breaker | 120/240V 70A 1P 10kA@120V Unit Mount QOU Series

Product Description:

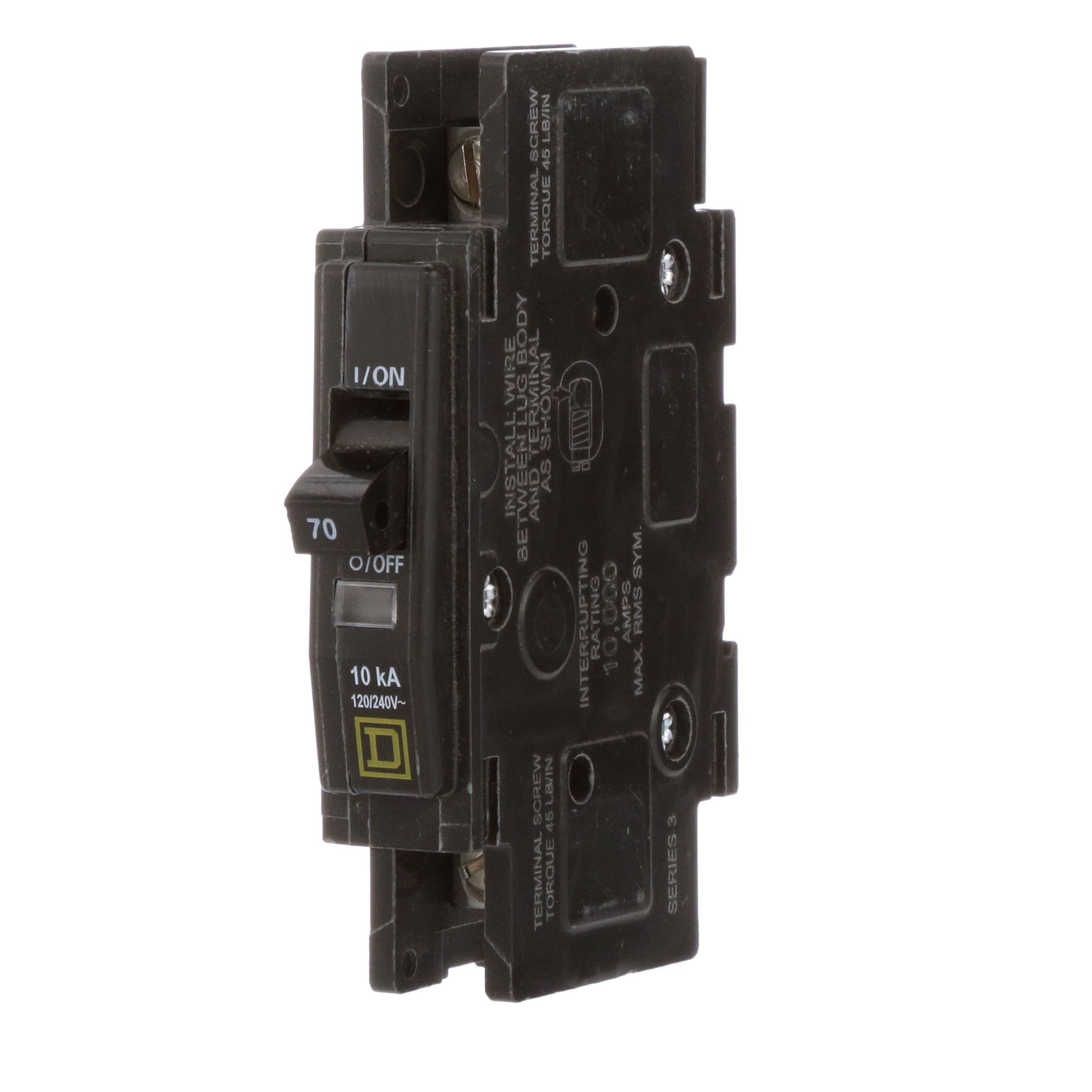

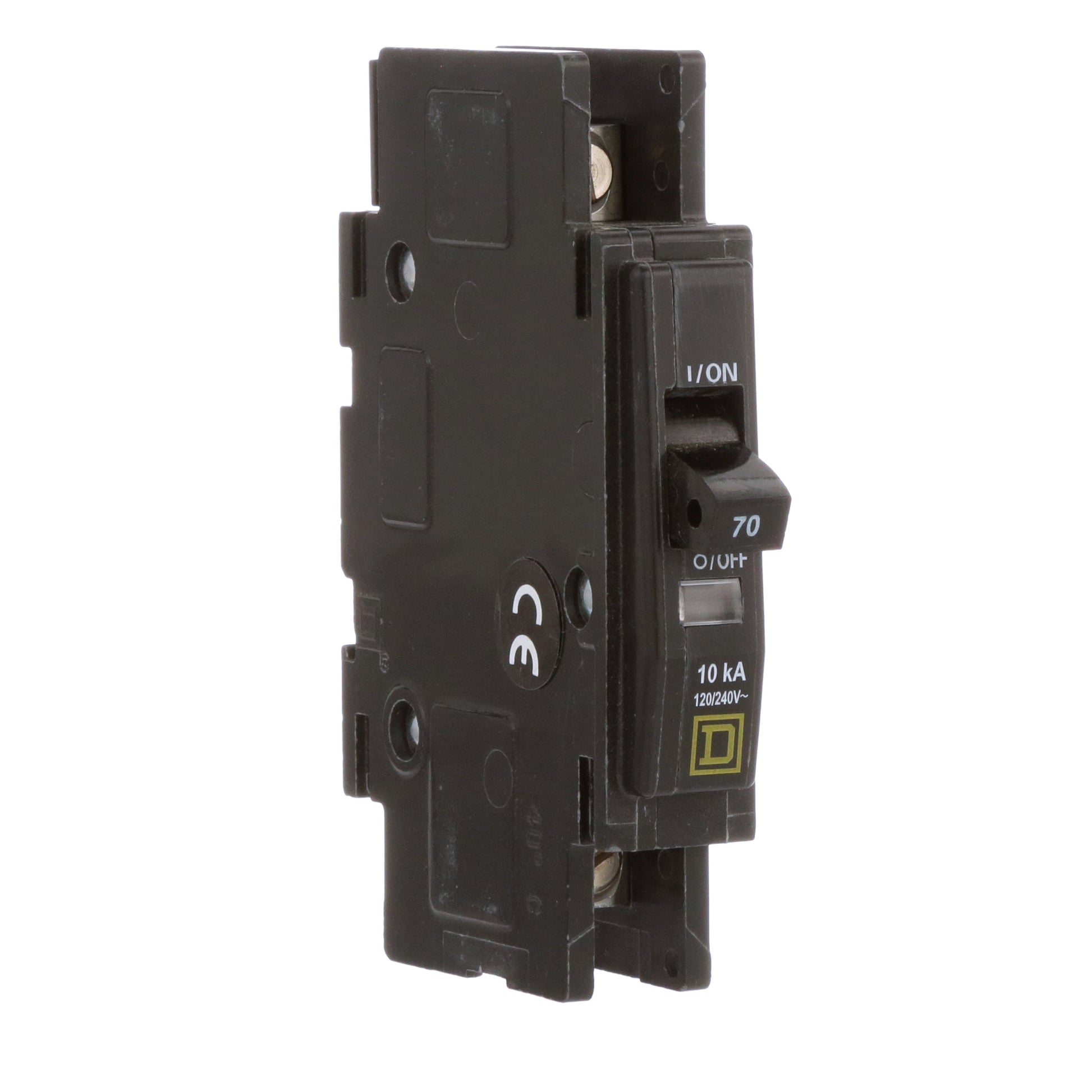

The Square D QOU170 is a Molded Case Circuit Breaker from the QOU Series. It is a 1-pole, 70 amp breaker rated for 120/240 volts with an AIC rating of 10kA@120V. This unit features thermal magnetic protection and uses a unit mount connection for secure installation.

Key Features:
✔ Part Number: QOU170
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120/240
✔ Amperage: 70
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Unit Mount
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901509868
✔ GTIN: 00785901509868
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 4.05 in x 4.05 in
✔ Weight: 0.37
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
✔ Wire Size: AWG 12...AWG 2/0 aluminum/copper
