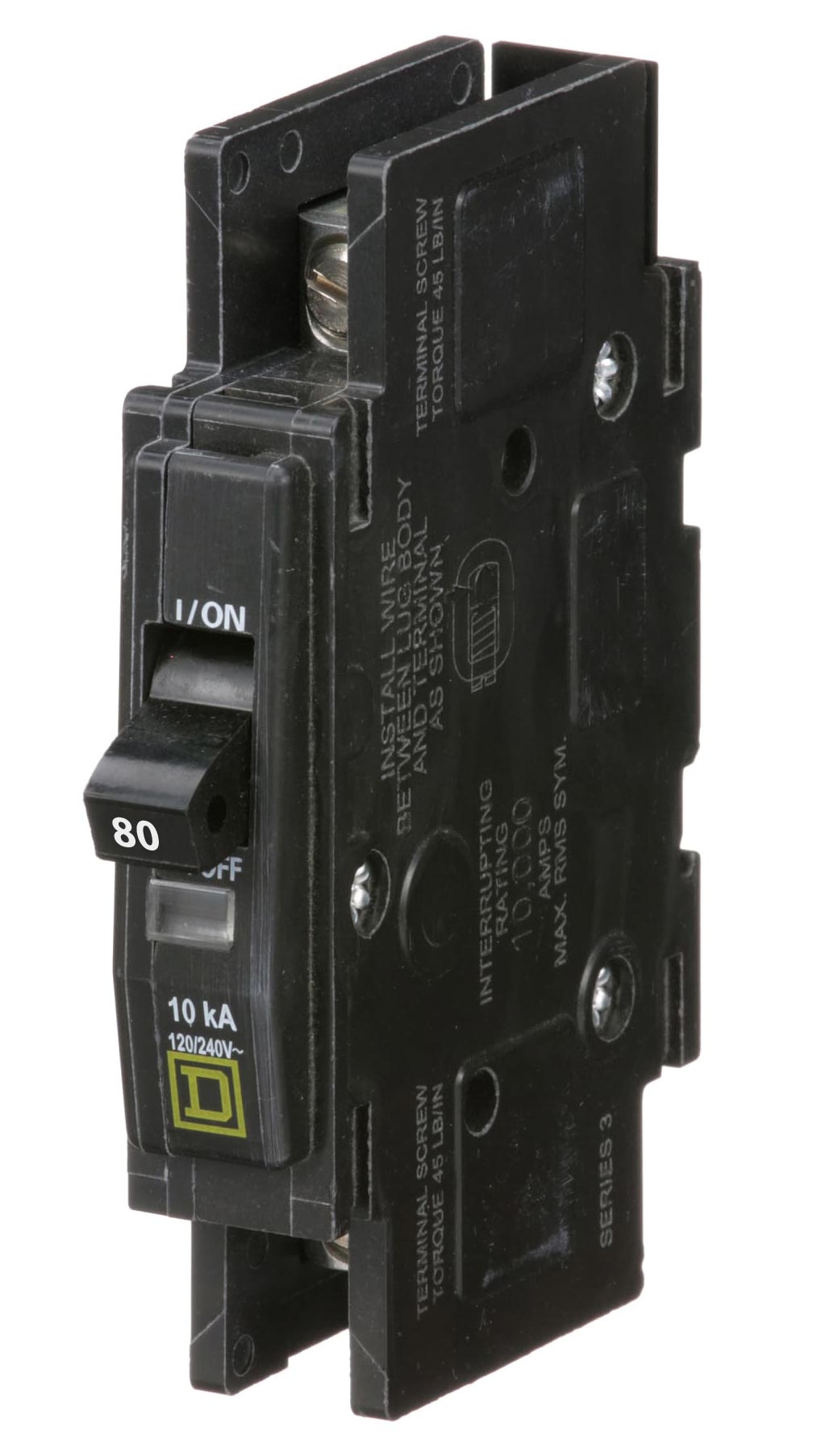

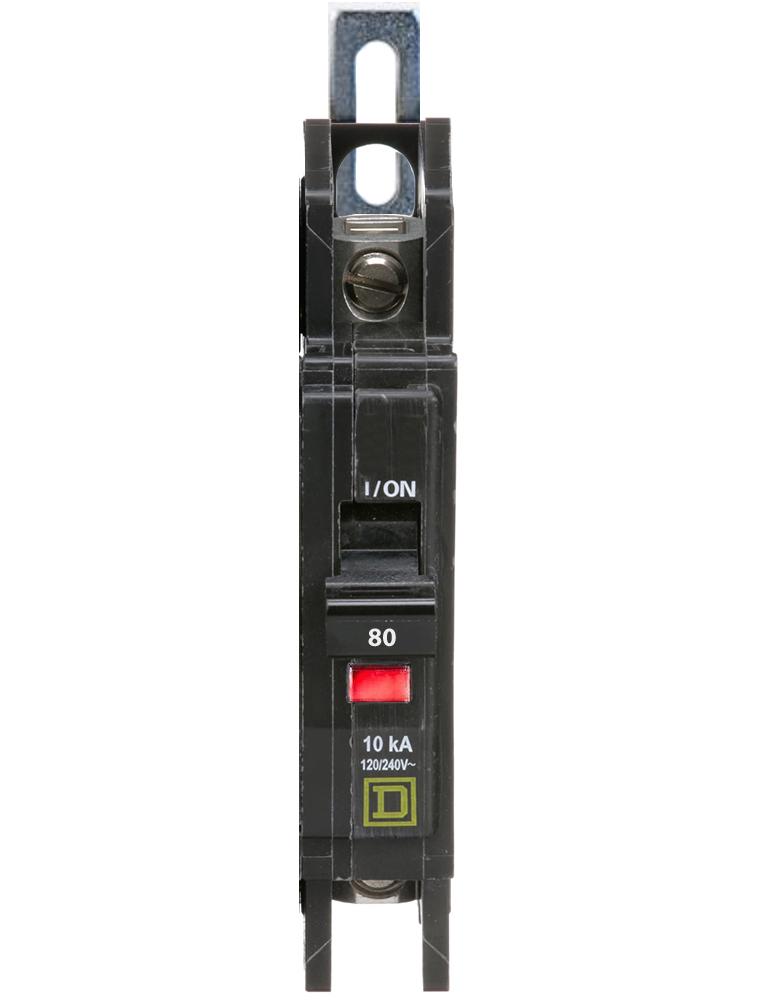

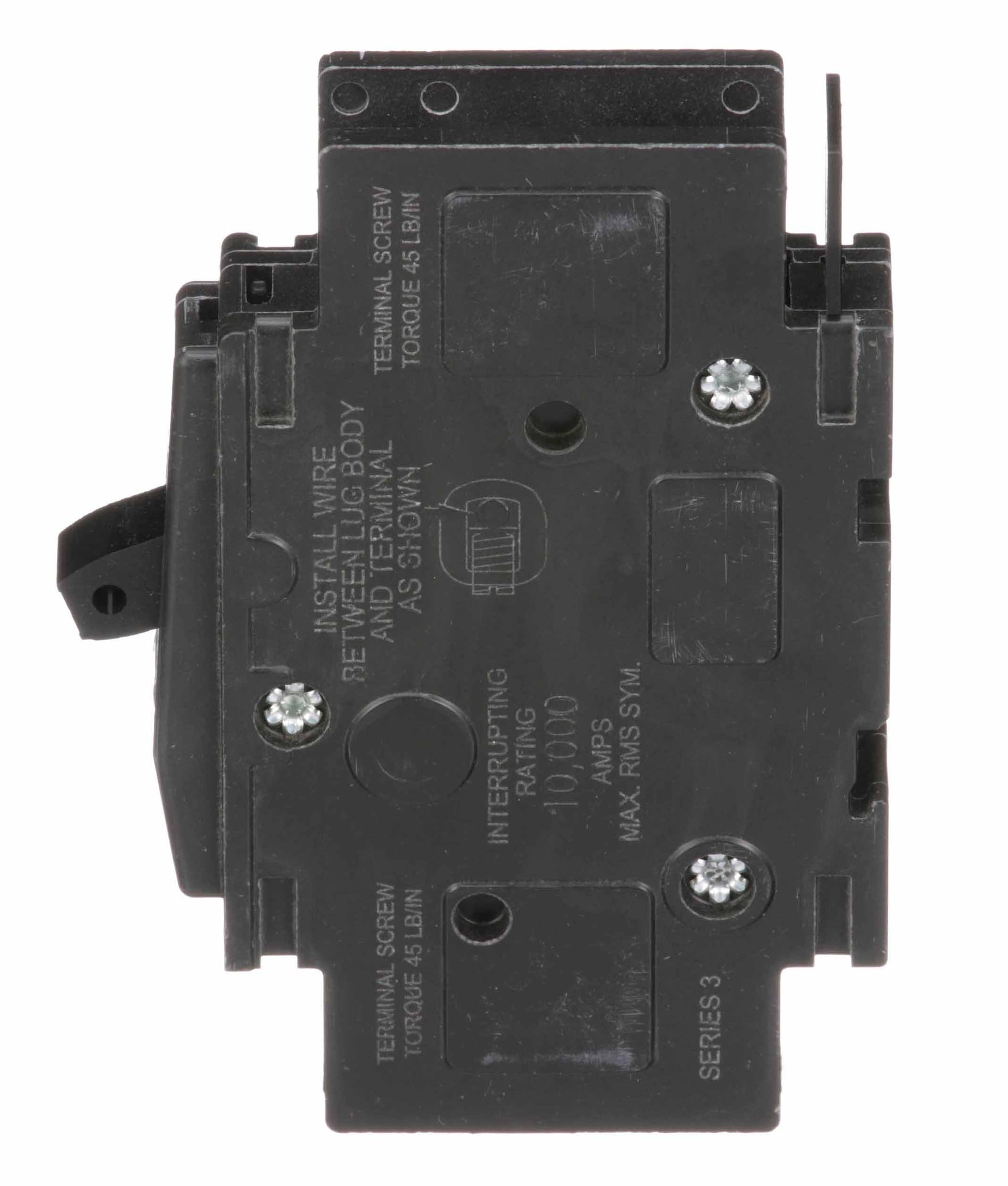

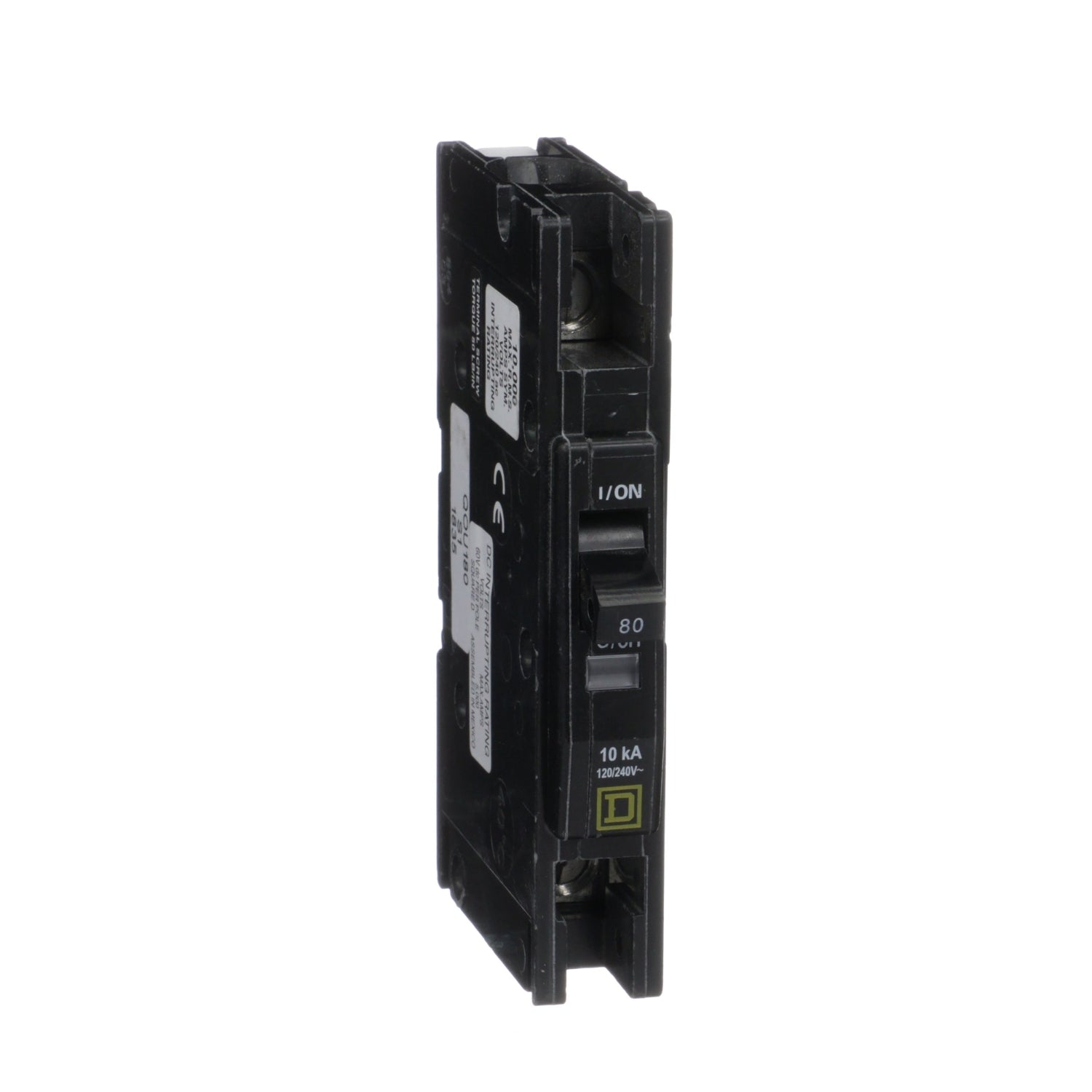

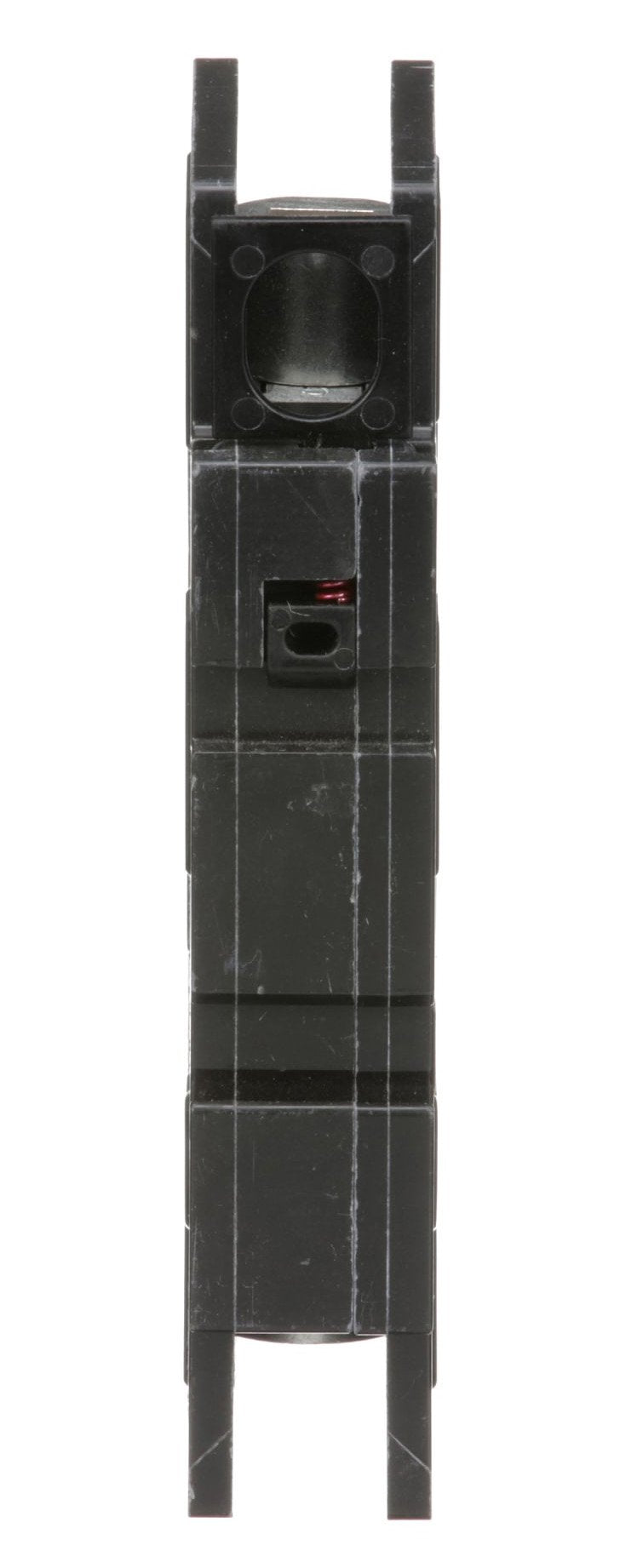

Square D QOU180 Circuit Breaker | 120/240V 80A 1P 10kA@120V Unit Mount QOU Series
Square D QOU180 Circuit Breaker | 120/240V 80A 1P 10kA@120V Unit Mount QOU Series
Price:
Sale
Sold out
Regular price
$78.87 USD
Regular price
$176.00 USD
Sale price
$78.87 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 1 left
Couldn't load pickup availability
Product Description:
The Square D QOU180 is a Molded Case Circuit Breaker from the QOU Series. It is a 1-pole, 80 amp breaker rated for 120/240 volts with a 10kA interrupting capacity at 120V. This unit features thermal magnetic protection and uses a unit mount connection for secure installation.
Key Features:
✔ Part Number: QOU180
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120/240
✔ Amperage: 80
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 10kA@120V
✔ Connection: Unit Mount
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Non-Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ Wire Size: Min. 12 AWG Max. 2/0 AWG
✔ Protection: Thermal Magnetic
✔ UPC: 785901175902
✔ GTIN: 00785901175902
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 4.45 in x 4.45 in
✔ Weight: 0.48
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
The Square D QOU180 is a Molded Case Circuit Breaker from the QOU Series. It is a 1-pole, 80 amp breaker rated for 120/240 volts with a 10kA interrupting capacity at 120V. This unit features thermal magnetic protection and uses a unit mount connection for secure installation.
Key Features:
✔ Part Number: QOU180
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120/240
✔ Amperage: 80
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 10kA@120V
✔ Connection: Unit Mount
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Non-Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ Wire Size: Min. 12 AWG Max. 2/0 AWG
✔ Protection: Thermal Magnetic
✔ UPC: 785901175902
✔ GTIN: 00785901175902
✔ Country of Origin: Mexico
✔ Dimensions: 0.75 in x 4.45 in x 4.45 in
✔ Weight: 0.48
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
