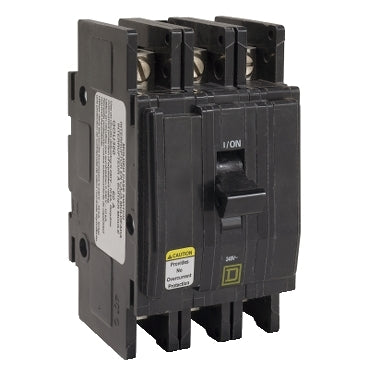

Square D QOU300 Circuit Breaker | 240V 60A 3P 10kA@240V Unit Mount QO Series

Product Description:
The Square D QOU300 is a Molded Case Circuit Breaker from the QO Series family. It is a 3-pole, 240 Volt, 60 amp rated breaker with an AIC rating of 10kA@240V. This unit features a Unit Mount connection and provides non-automatic protection. It is designed for reliable electrical circuit management.

Key Features:
✔ Part Number: QOU300
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QO Series
✔ Type: QOU
✔ Voltage: 240
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Unit Mount
✔ Functions: NA - No Overcurrent Protection
✔ Terminal Connection: Slotted Box Lug
✔ MCM Size: Min. Wire Size 12 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
✔ Protection: Non-Automatic
✔ UPC: 785901489238
✔ GTIN: 00785901489238
✔ Country of Origin: Mexico
✔ Dimensions: 2-1/4 in x 4.05 in
✔ Weight: 1.06
✔ Standards: UL Listed, CSA
✔ Certification: UL Listed, CSA
✔ Wire Size: AWG 12...AWG 2/0 aluminum/copper
