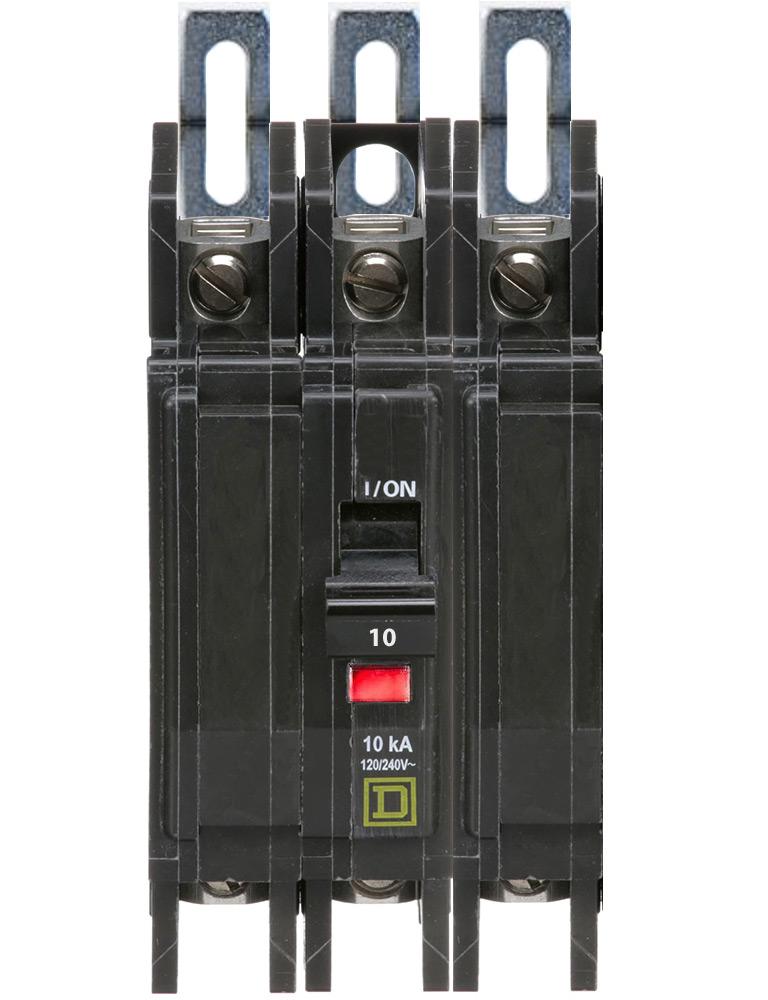

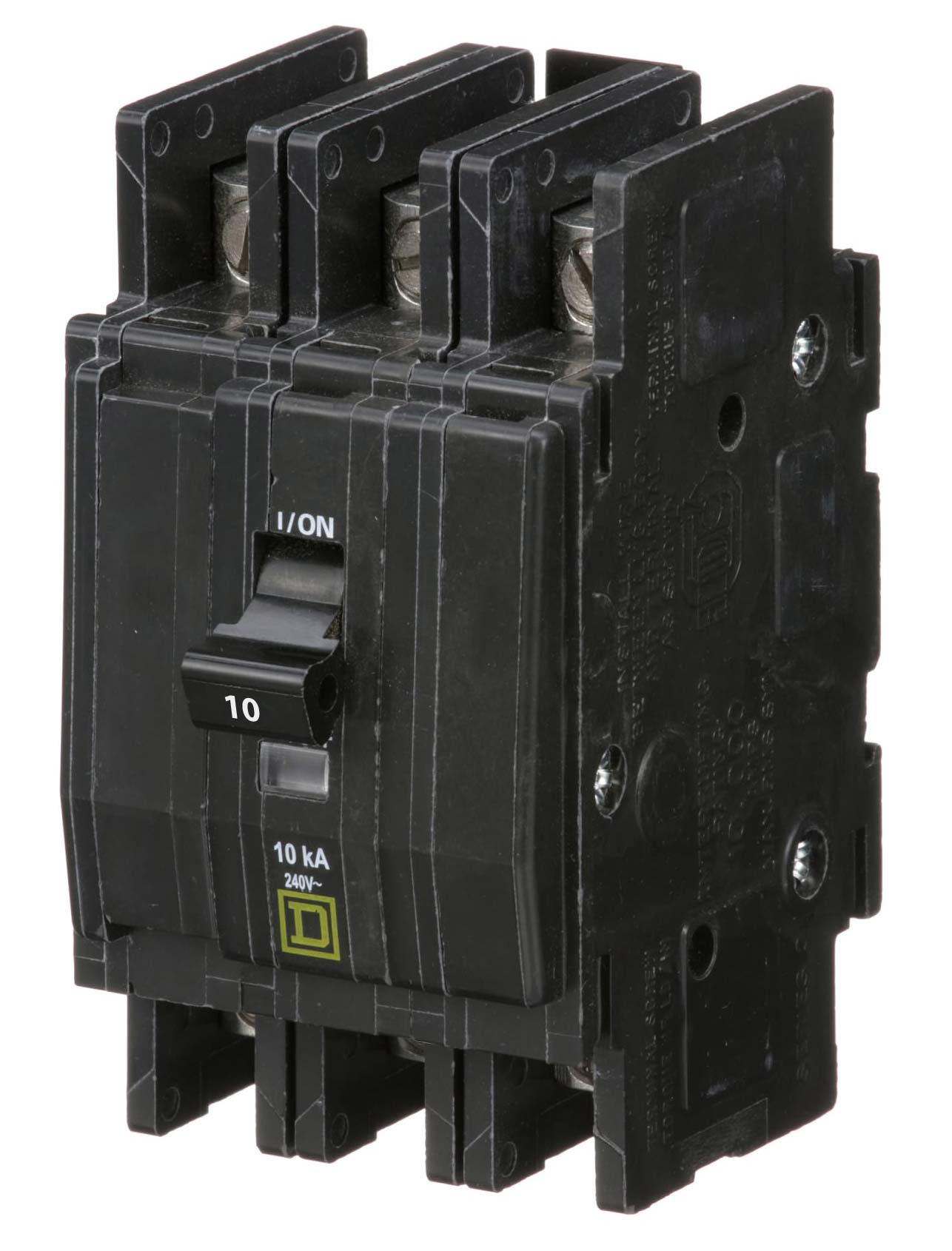

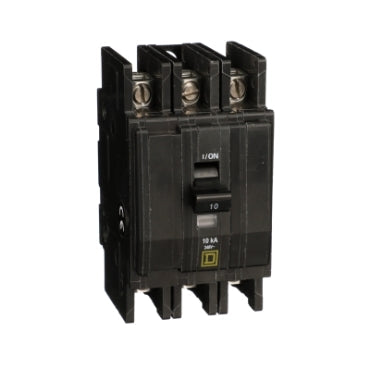

Square D QOU310 Circuit Breaker | 240V 10A 3P 10kA@240V Bolt-On QOU Series
Square D QOU310 Circuit Breaker | 240V 10A 3P 10kA@240V Bolt-On QOU Series
Price:
Sale
Sold out
Regular price
$113.75 USD
Regular price
$307.80 USD
Sale price
$113.75 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
Product Description:
The Square D QOU310 is a Molded Case Circuit Breaker from the QOU Series. It is a 3-pole, 240 Volt, 10 amp breaker with a 10kA@240V AIC rating and uses a Bolt-On connection. This model provides Thermal Magnetic protection for reliable circuit interruption.
Key Features:
✔ Part Number: QOU310
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 240
✔ Amperage: 10
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901489245
✔ GTIN: 00785901489245
✔ Country of Origin: Mexico
✔ Dimensions: 2.25 in x 4.05 in x 4.05 in
✔ Weight: 1
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
✔ Wire Size: AWG 14...AWG 2 aluminum/copper
The Square D QOU310 is a Molded Case Circuit Breaker from the QOU Series. It is a 3-pole, 240 Volt, 10 amp breaker with a 10kA@240V AIC rating and uses a Bolt-On connection. This model provides Thermal Magnetic protection for reliable circuit interruption.
