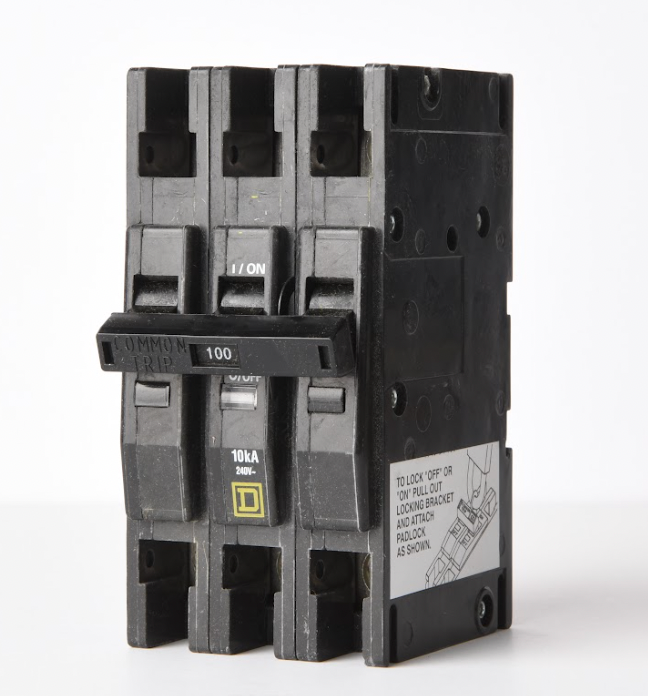

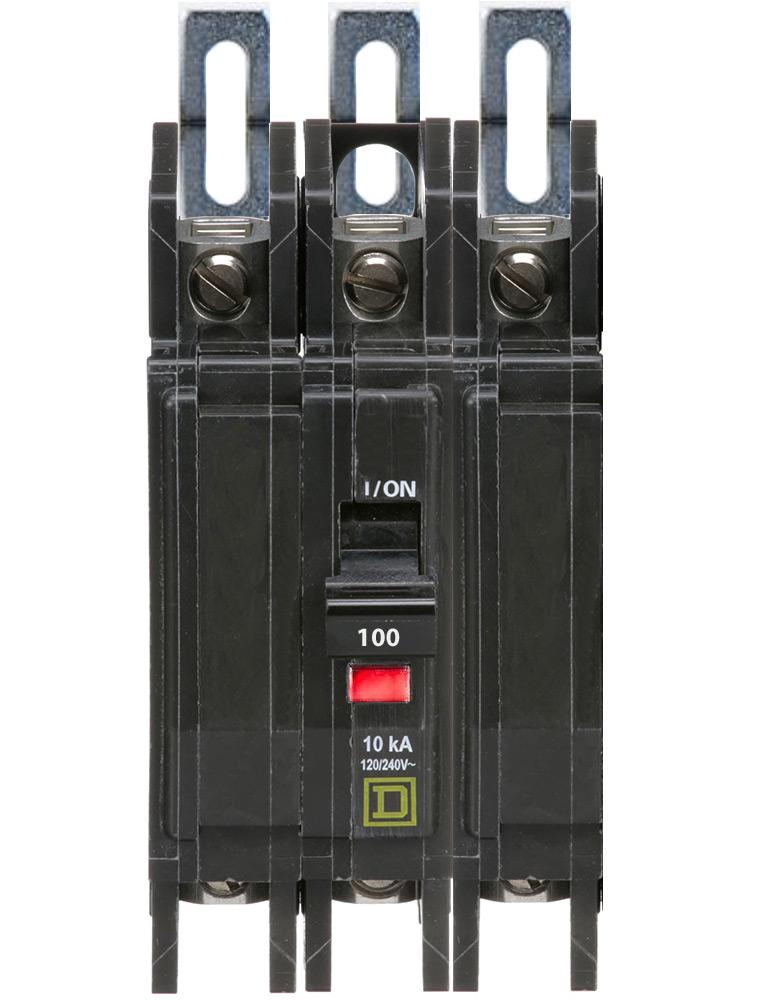

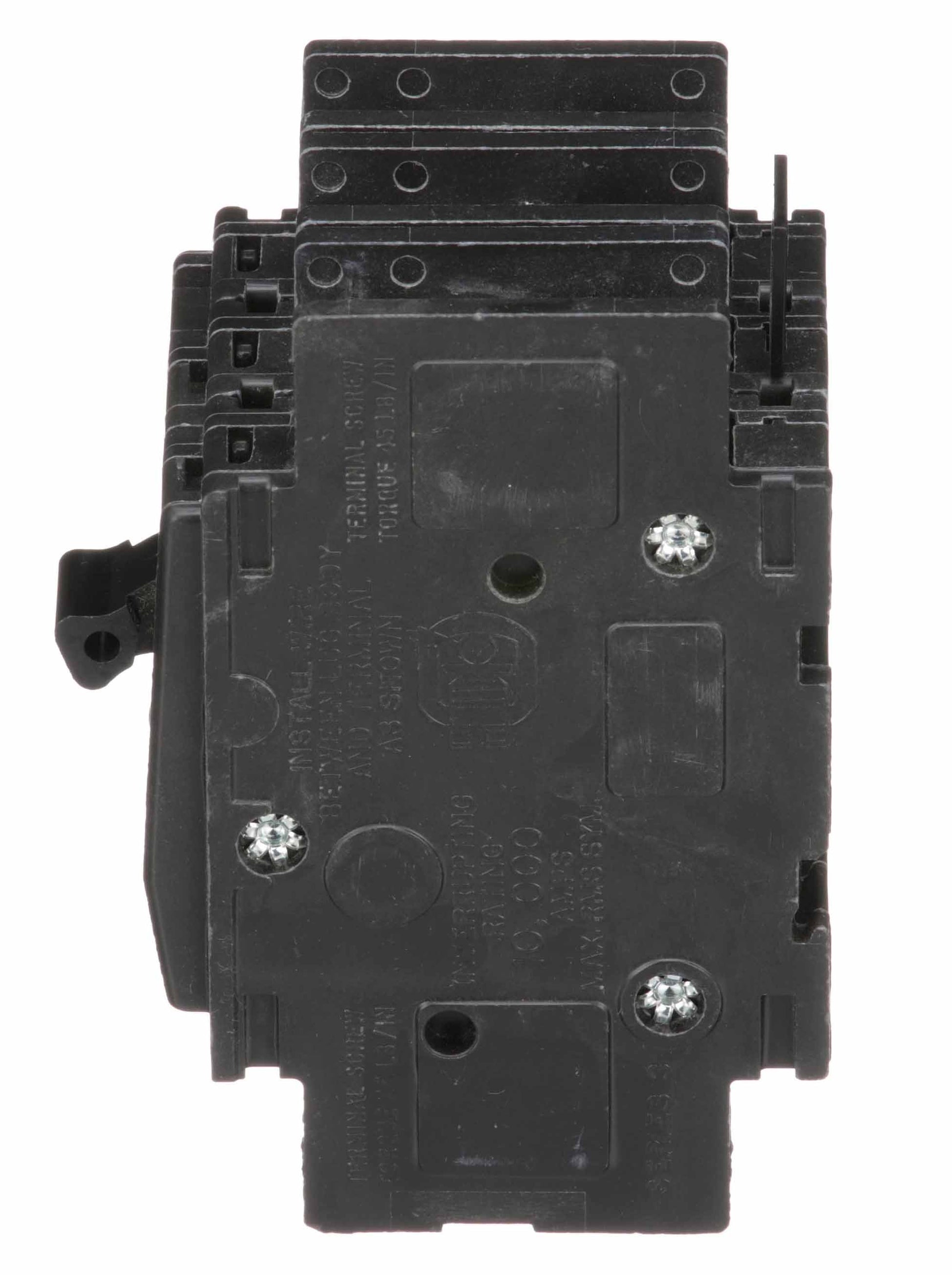

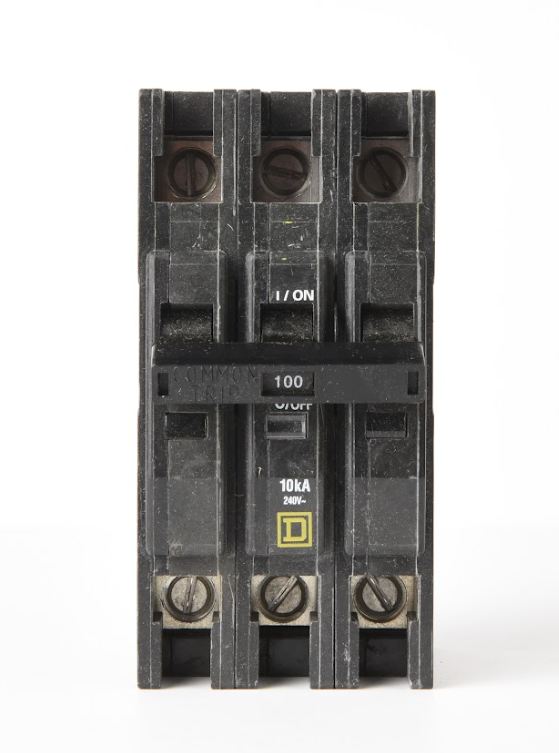

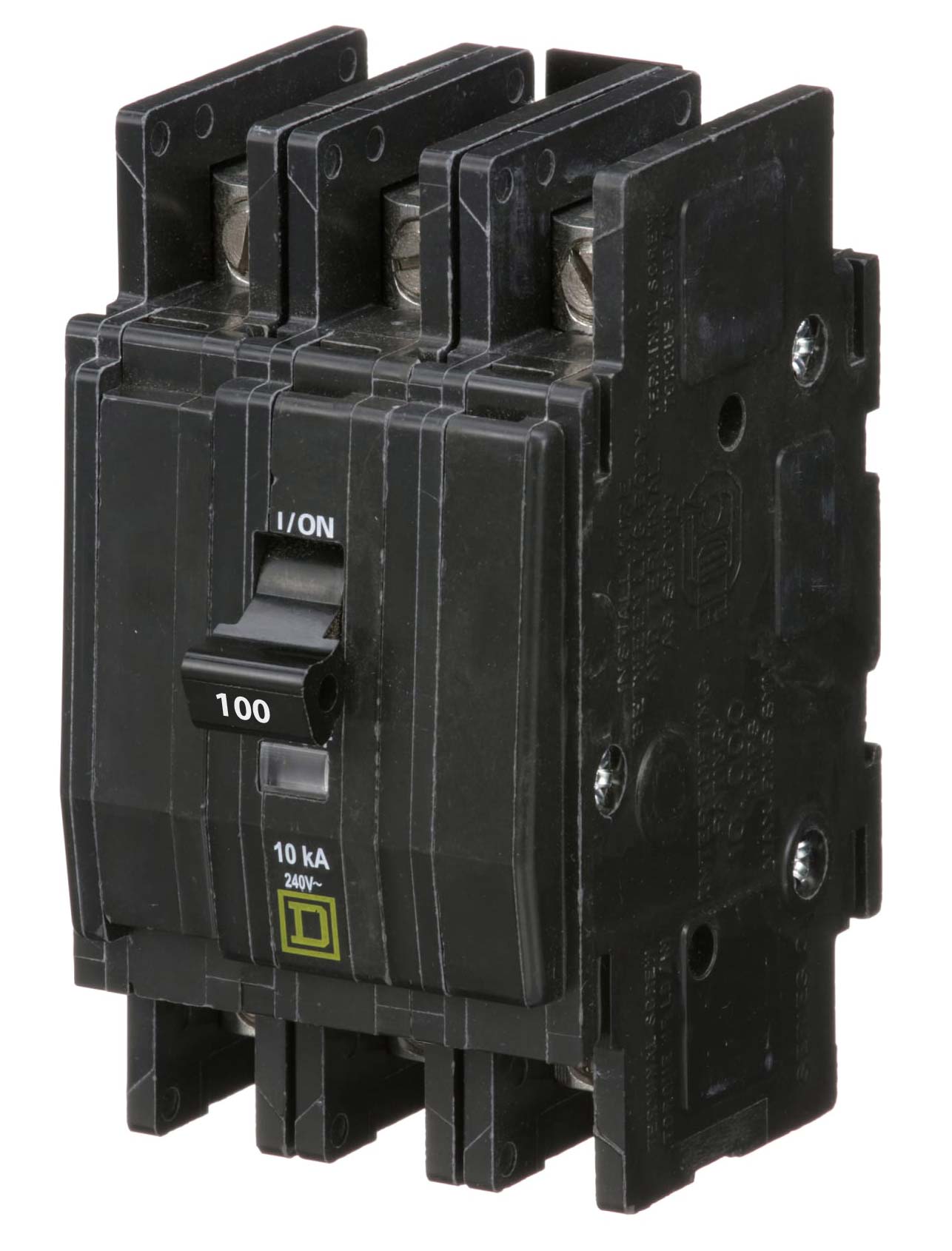

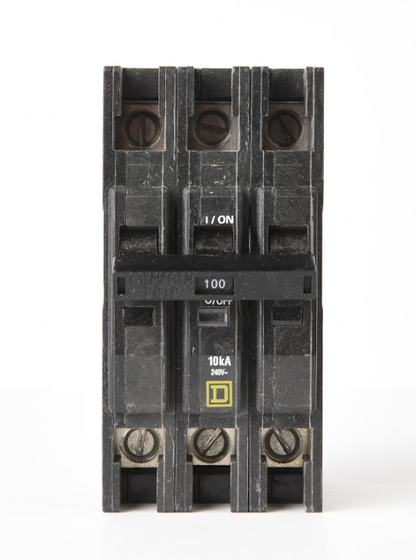

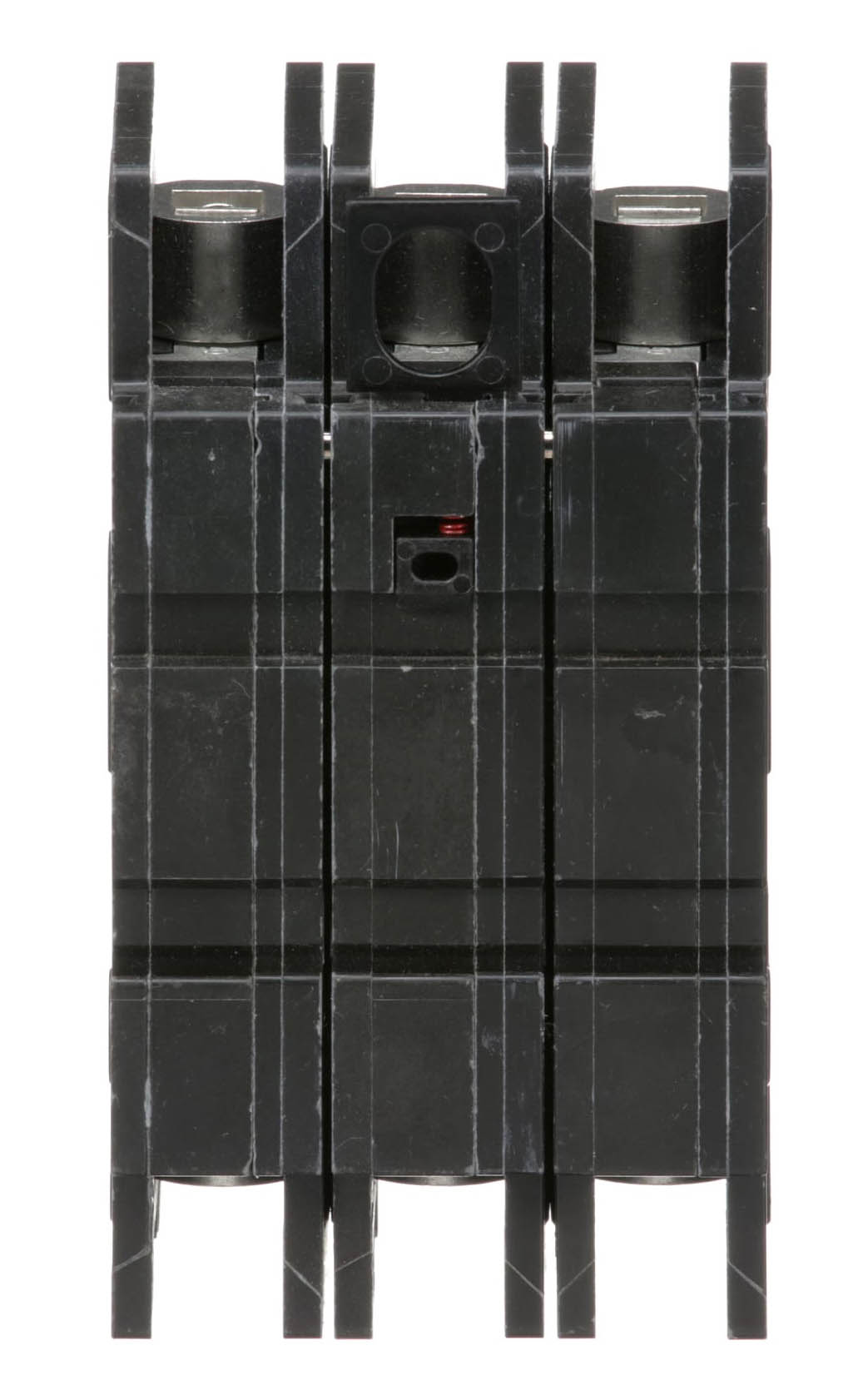

Square D QOU3100 Circuit Breaker | 240V 100A 3P 10kA@240V Unit Mount QOU Series

Product Description:
The Square D QOU3100 is a 3-pole molded case circuit breaker rated for 100 amps and 240 volts. It features thermal magnetic protection and a 10kA interrupting capacity at 240V. This unit mount breaker is designed for reliable performance in commercial and industrial electrical systems. It complies with UL and CSA standards for safety and quality.

Key Features:
✔ Part Number: QOU3100
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 240
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Unit Mount
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Non-Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ MCM Size: Min. Wire Size 12 AWG Max. Wire Size 2/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901060338
✔ GTIN: 00785901060338
✔ Country of Origin: Mexico
✔ Dimensions: 2.25 in x 4.45 in x 4.45 in
✔ Weight: 1
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
✔ Wire Size: AWG 12...AWG 2/0 aluminum/copper
