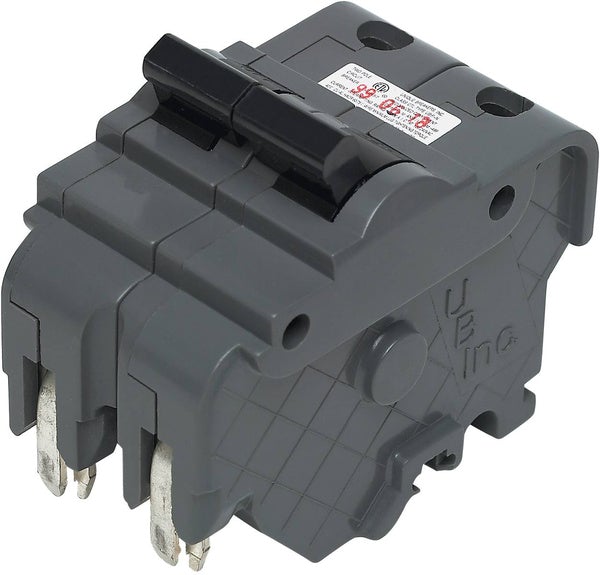

Connecticut Electric UBIF220N Circuit Breaker | 240V 20A 2P 10kA@240V Plug-In Thick Series

Product Description:
The UBIF220N is a molded case circuit breaker designed for reliable electrical protection. It is a 2-pole, 20 amp breaker rated for 120/240 volts with a 10kA interrupting capacity. This plug-in style breaker features thermal magnetic protection and is compatible with Federal Pacific load centers. It is ETL and UL listed for safety and compliance.

Key Features:
✔ Part Number: UBIF220N
✔ Manufacturer: Connecticut Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Thick Series
✔ Type: UBIFN
✔ Voltage: 120/240
✔ Amperage: 20
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Protection: Thermal Magnetic
✔ Frame Size: 70A/HACR
✔ Wire Size: Min. 14 AWG Max. 6 AWG
✔ Panel Type: Federal Pacific Load Centers
✔ Certification: ETL Listed, UL Listed
✔ UPC: 094925019407
✔ GTIN: 00094925019407
✔ Country of Origin: China
✔ Dimensions: 2 in x 3.36 in x 3.36 in
✔ Weight: 2
