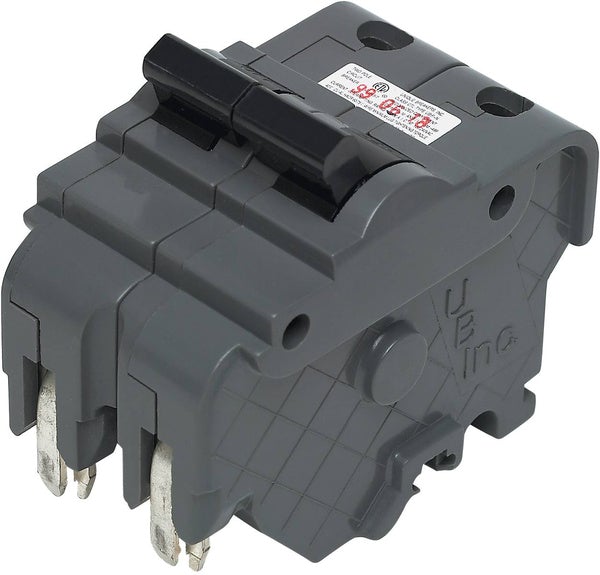

Connecticut Electric UBIF230N Circuit Breaker 2P 30A 240V 10kA@240V Plug-In Thick Series

Product Description:
The UBIF230N is a molded case circuit breaker designed for reliable electrical protection. It is rated for 120/240 volts and 30 amps, featuring thermal magnetic protection for both long-time and instantaneous overcurrent conditions. This 2-pole breaker uses a plug-in connection and is compatible with Federal Pacific load centers. It is ETL and UL listed for safety and performance assurance.

Key Features:
✔ Part Number: UBIF230N
✔ Manufacturer: Connecticut Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Thick Series
✔ Type: UBIFN
✔ Voltage: 120/240
✔ Amperage: 30
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 70A/HACR
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 6 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 094925019414
✔ GTIN: 00094925019414
✔ Country of Origin: China
✔ Dimensions: 2 in x 3.36 in x 3.36 in
✔ Weight: 2
✔ Panel Type: Federal Pacific Load Centers
✔ Standards: ETL Listed, UL Listed
✔ Certification: ETL Listed, UL Listed
