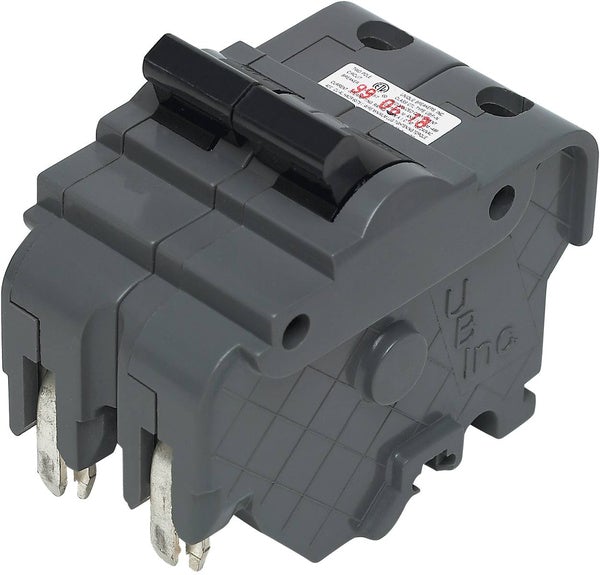

Ferraz Shawmut UBIF240N Molded Case Circuit Breaker | 120/240V 40A 2P 10kA@240V Plug-In Thick Series

Product Description:
The Ferraz Shawmut UBIF240N is a Molded Case Circuit Breaker from the Thick Series family. It is a 2-pole, 40 amp breaker rated for 120/240 volts with an AIC rating of 10kA@240V. This model uses a plug-in connection and provides thermal magnetic protection for reliable circuit safety.

Key Features:
✔ Part Number: UBIF240N
✔ Manufacturer: Connecticut Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Thick Series
✔ Type: UBIFN
✔ Voltage: 120/240
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 70A/HACR
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 6 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 094925019421
✔ GTIN: 00094925019421
✔ Country of Origin: China
✔ Dimensions: 2 in x 3.36 in x 3.36 in
✔ Weight: 2
✔ Panel Type: Federal Pacific Load Centers
✔ Standards: ETL Listed, UL Listed
✔ Certification: ETL Listed, UL Listed
