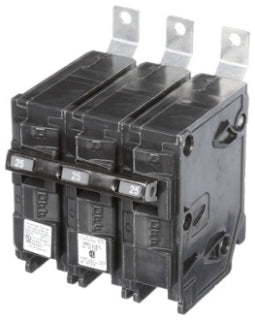

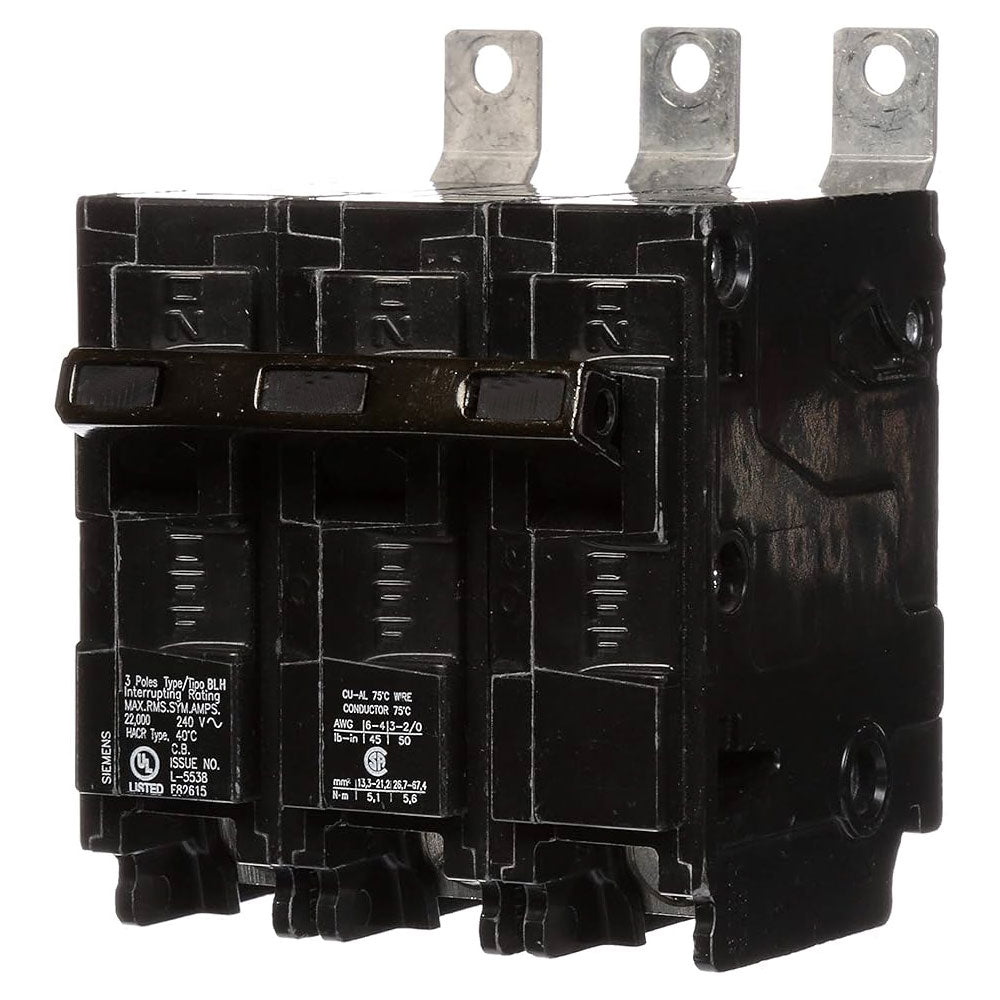

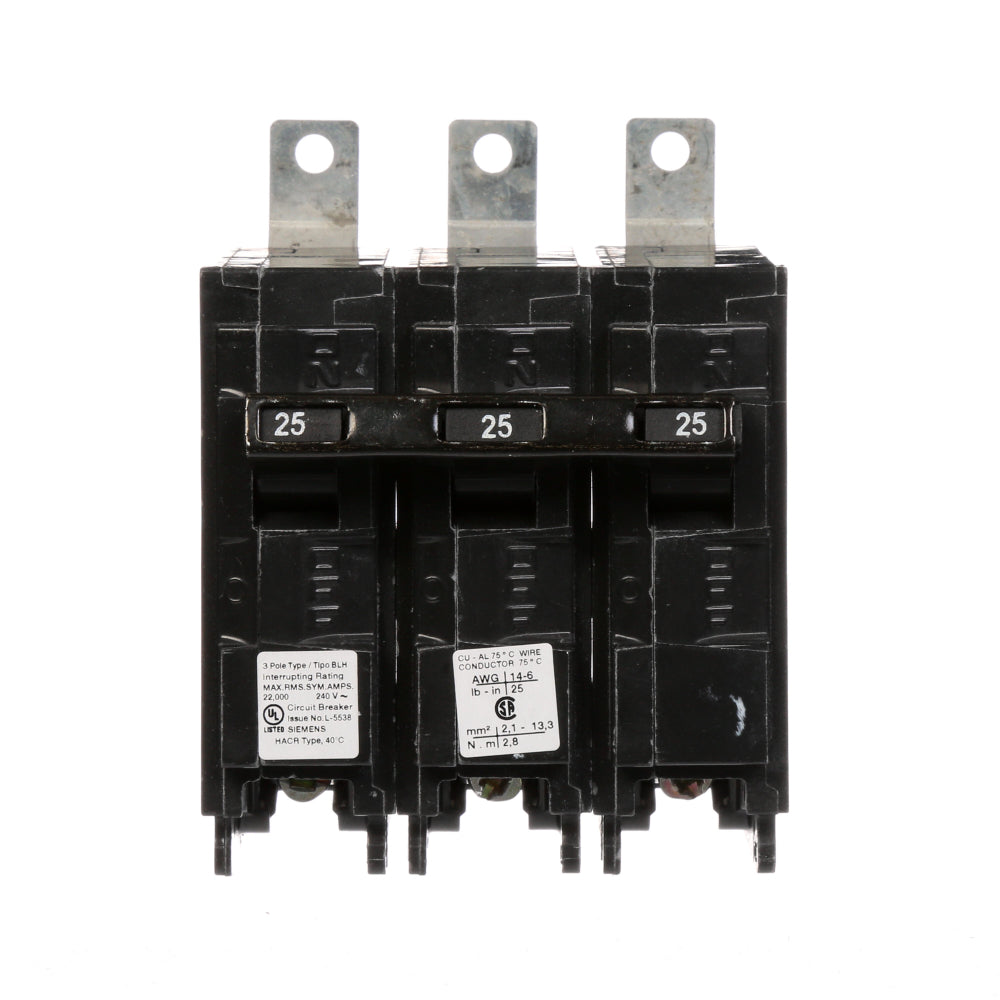

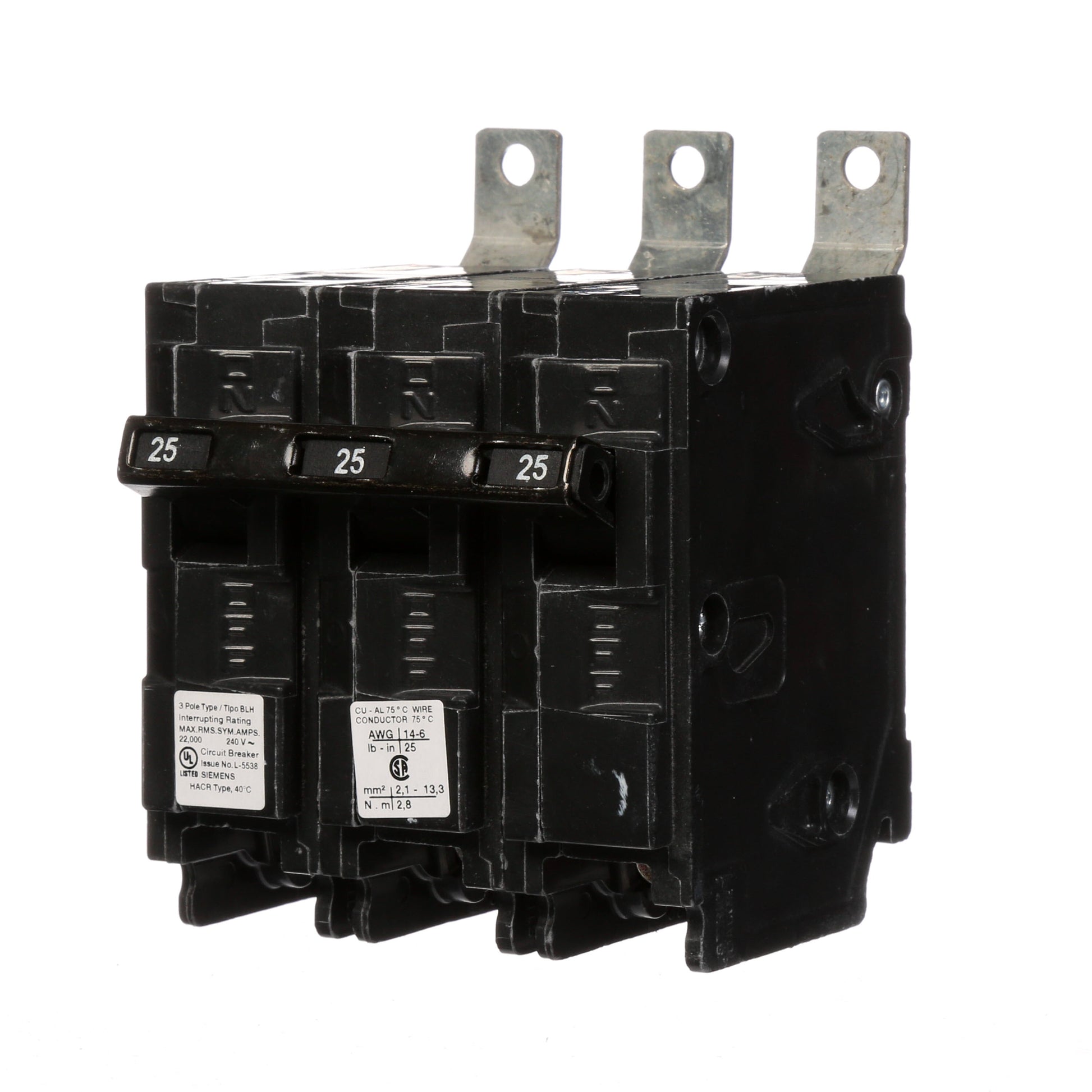

Siemens B325H Circuit Breaker | 240V 25A 3P 22kA@240V Bolt-on BL Series

Product Description:
The Siemens B325H is a Molded Case Circuit Breaker from the BL Series family. It is a 3-pole, 25 amp breaker rated for 240 volts with an AIC rating of 22kA@240V. This model features a bolt-on connection and provides thermal magnetic protection. It is designed for use in Siemens P1 Panelboards.

Key Features:
✔ Part Number: B325H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 240
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BLH
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643306318
✔ GTIN: 00783643306318
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 3 in x 3 in
✔ Weight: 1.04
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
