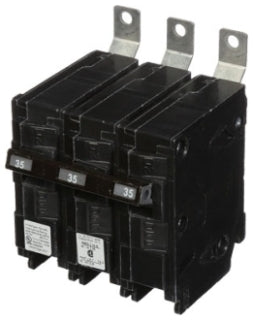

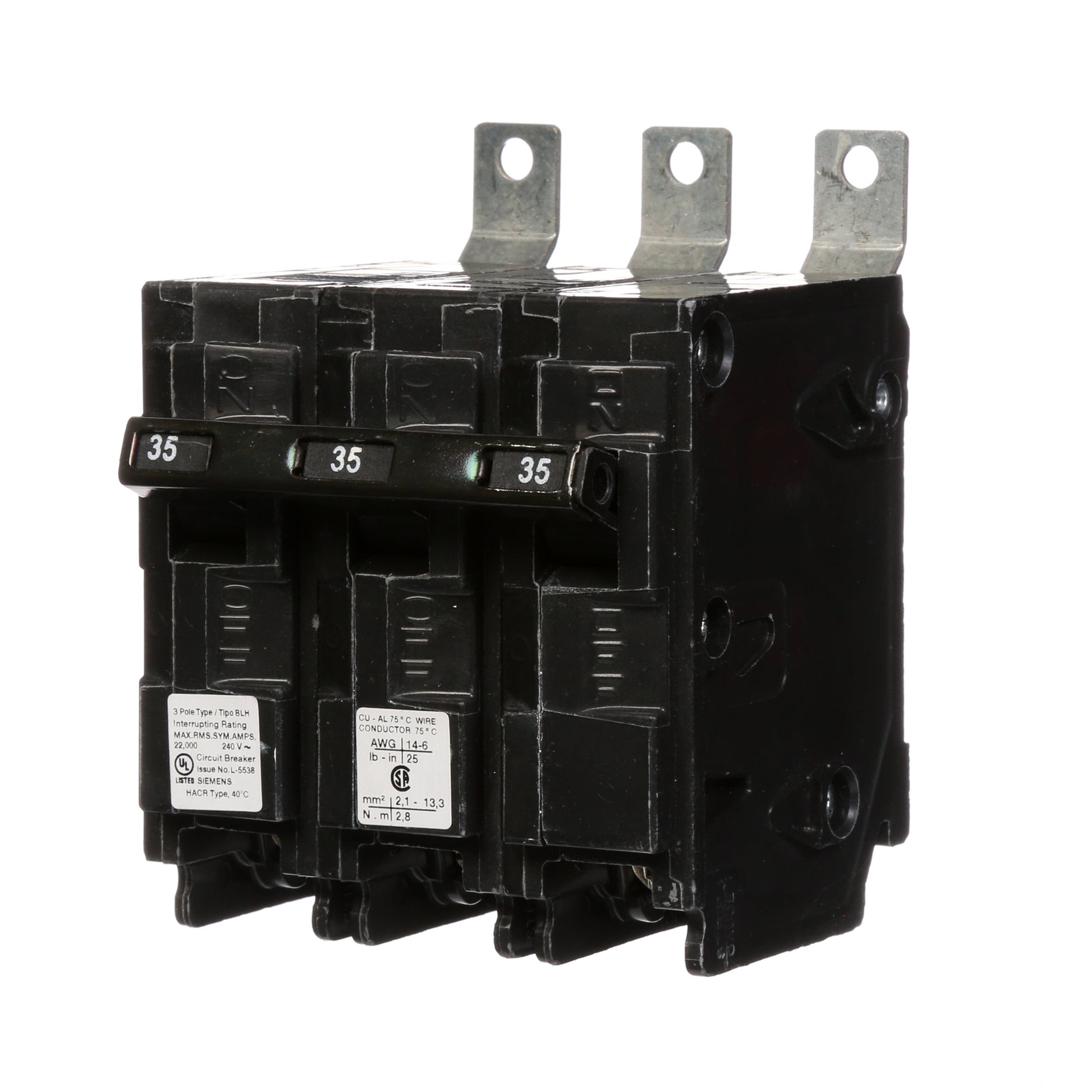

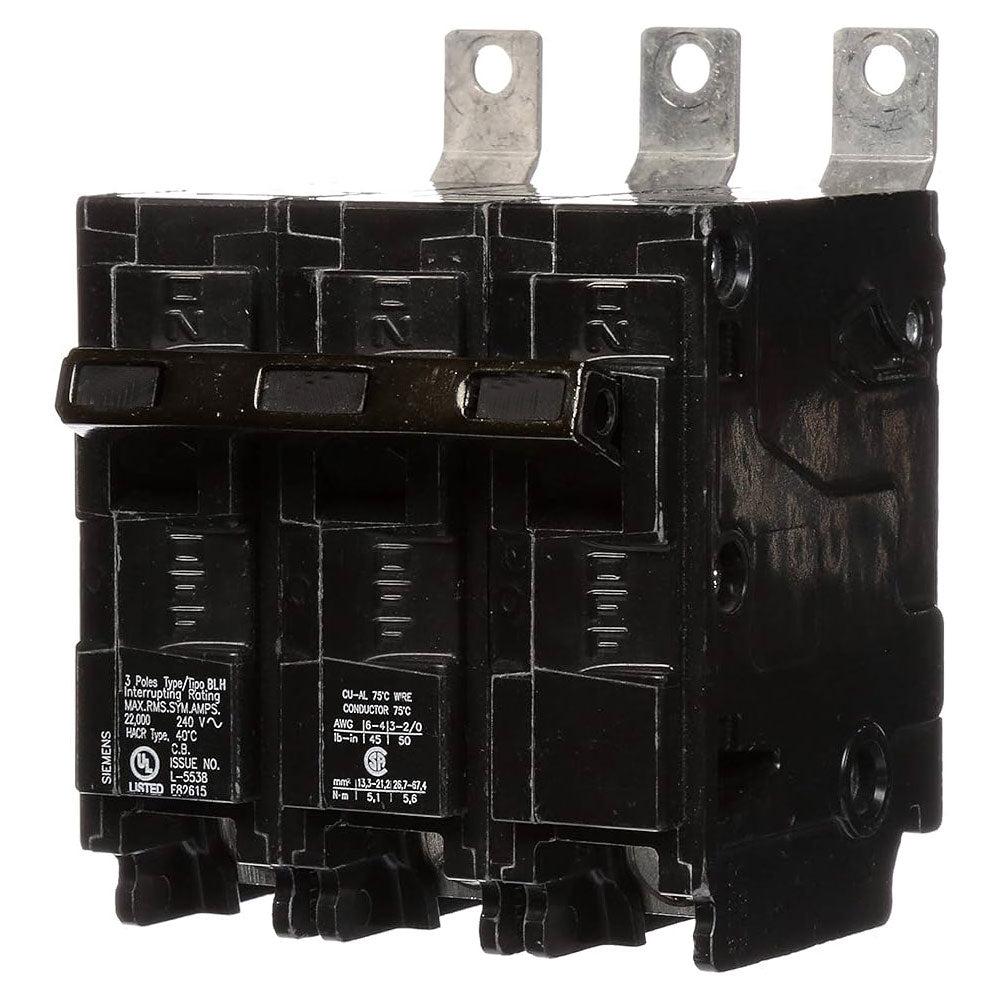

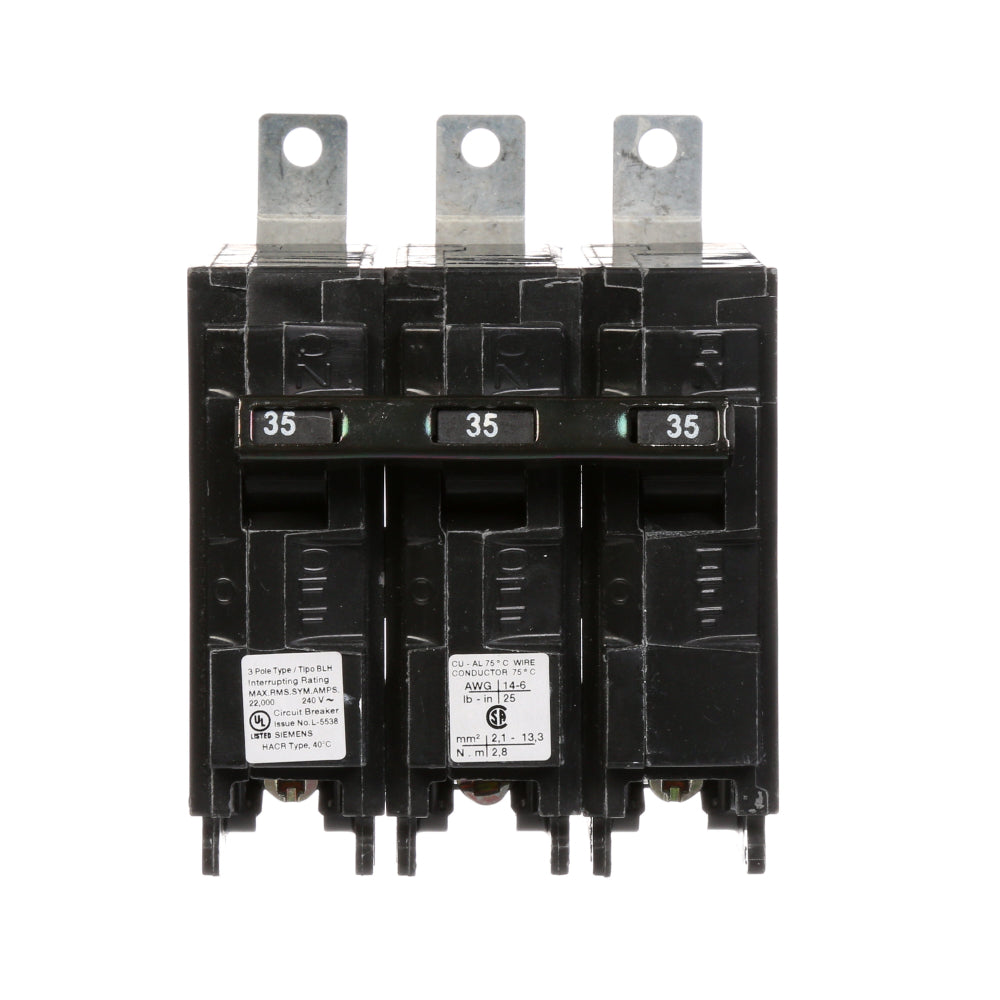

Siemens B335H Circuit Breaker | 240V 35A 3P 22kA@240V Bolt-on BL Series

Product Description:
The Siemens B335H is a molded case circuit breaker designed for reliable electrical protection in industrial and commercial settings. It features a 3-pole configuration with a 240V voltage rating and 35A amperage capacity. This thermal magnetic breaker offers long-time and instantaneous protection and is built to meet UL 489 standards.

Key Features:
✔ Part Number: B335H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 240
✔ Amperage: 35
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 78364330633
✔ GTIN: 00783643306332
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 3 in x 3 in
✔ Weight: 1.06
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: UL 489
✔ Certification: UL 489
