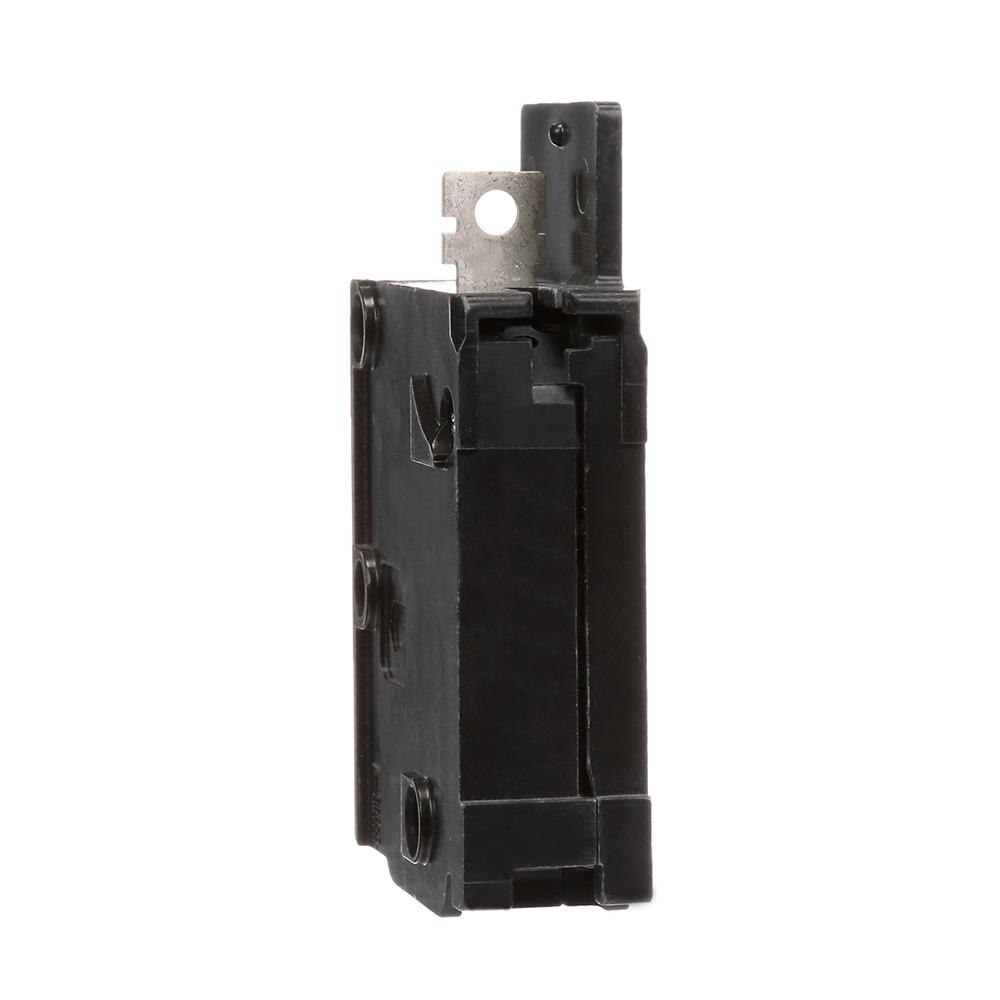

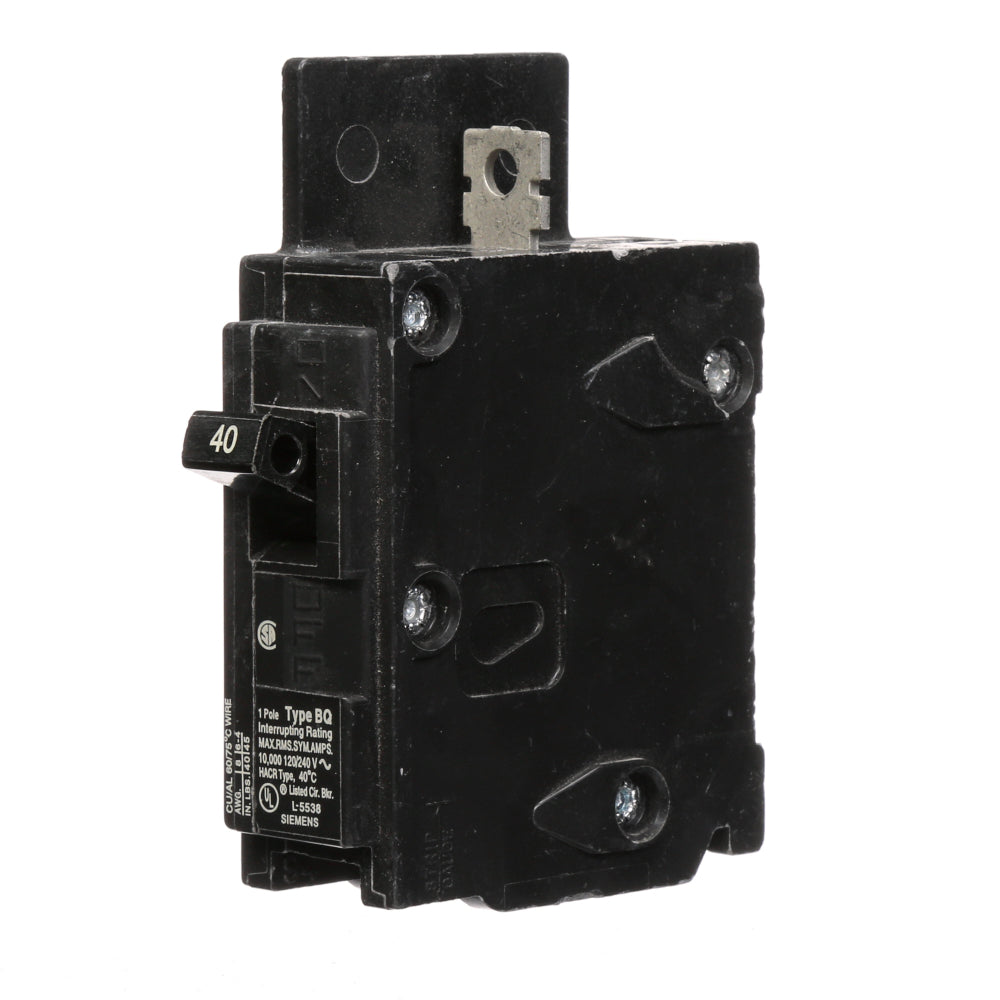

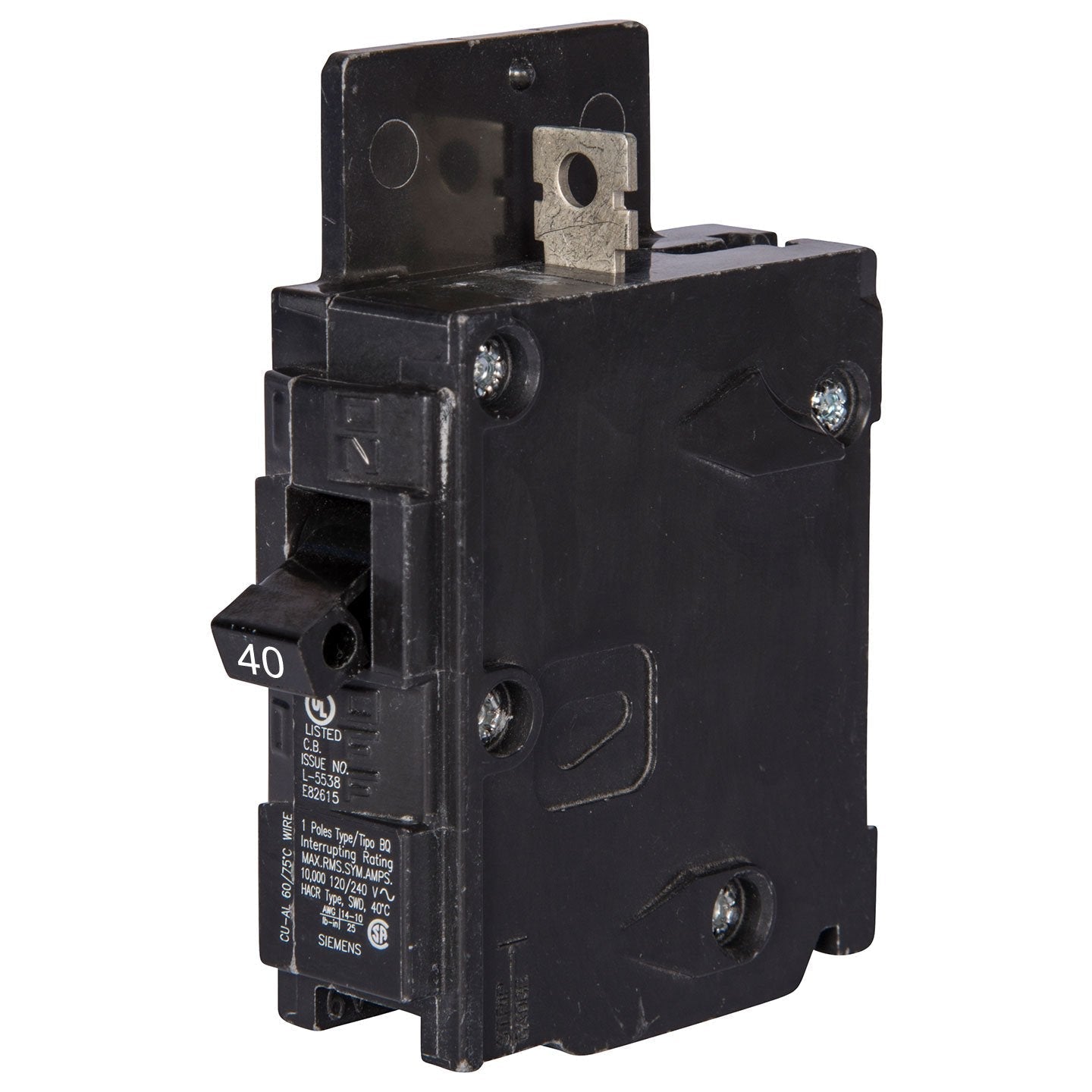

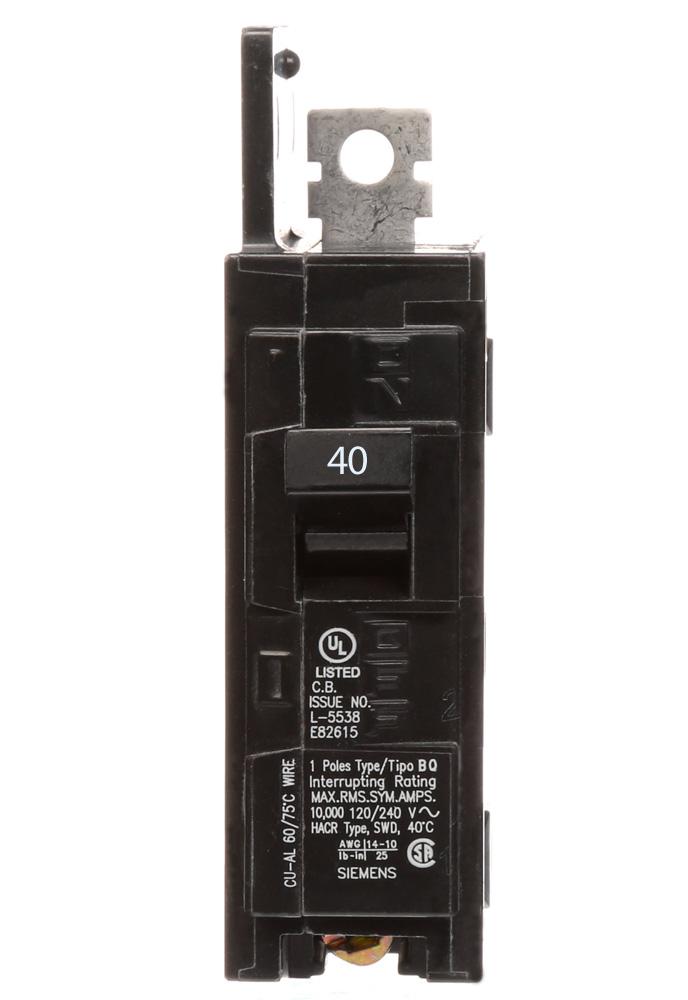

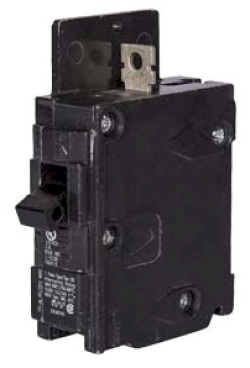

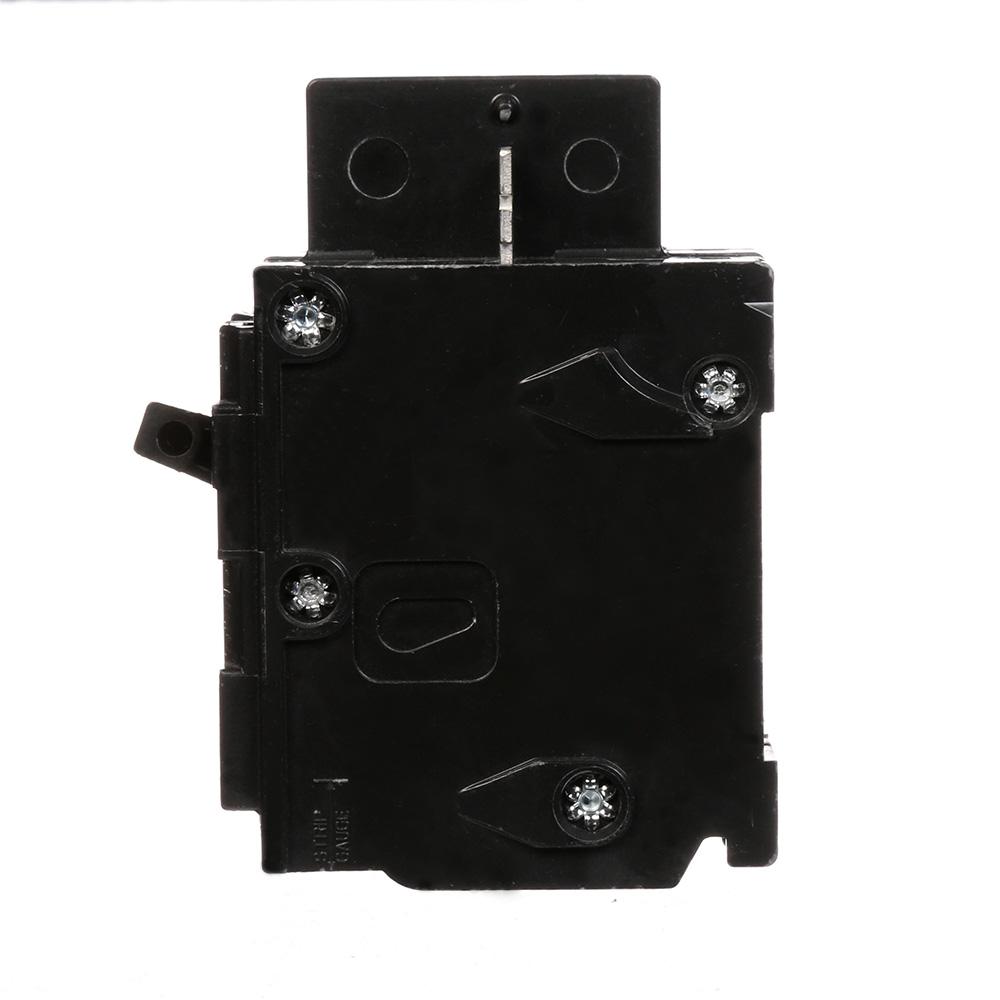

Siemens BQ1B040 Circuit Breaker | 120V 40A 1P 10kA@120V Bolt-on BQ Series

Product Description:
The Siemens BQ1B040 is a Molded Case Circuit Breaker designed for reliable electrical protection. It features a 1-pole configuration with a 40 amp rating and operates at 120 volts. This breaker includes thermal magnetic protection and is suitable for use in Siemens panelboards. It meets industry standards with CSA certification, HACR rating, and UL listing.

Key Features:
✔ Part Number: BQ1B040
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 120
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQ
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643102361
✔ GTIN: 00783643102361
✔ Country of Origin: Mexico
✔ Dimensions: 1 in x 4 in x 4 in
✔ Weight: 0.44
✔ Panel Type: Siemens Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
