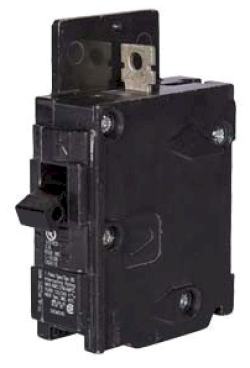

Siemens BQ1B060 Circuit Breaker | 120V 60A 1 Pole 10kA@120V Bolt-on BQ Series

Product Description:
The Siemens BQ1B060 is a Molded Case Circuit Breaker from the BQ Series. It is a 1-pole, 60 amp breaker rated for 120V with a 10kA interrupting capacity. This thermal magnetic circuit breaker features a bolt-on connection for secure installation.

Key Features:
✔ Part Number: BQ1B060
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 120
✔ Amperage: 60
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQ
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643161177
✔ GTIN: 00783643161177
✔ Country of Origin: Mexico
✔ Dimensions: 1 in x 4 in x 4 in
✔ Weight: 0.3
✔ Panel Type: Siemens Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
