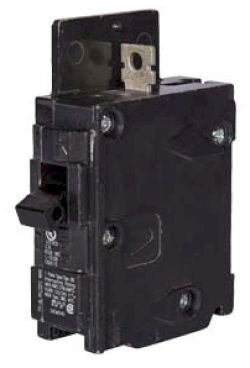

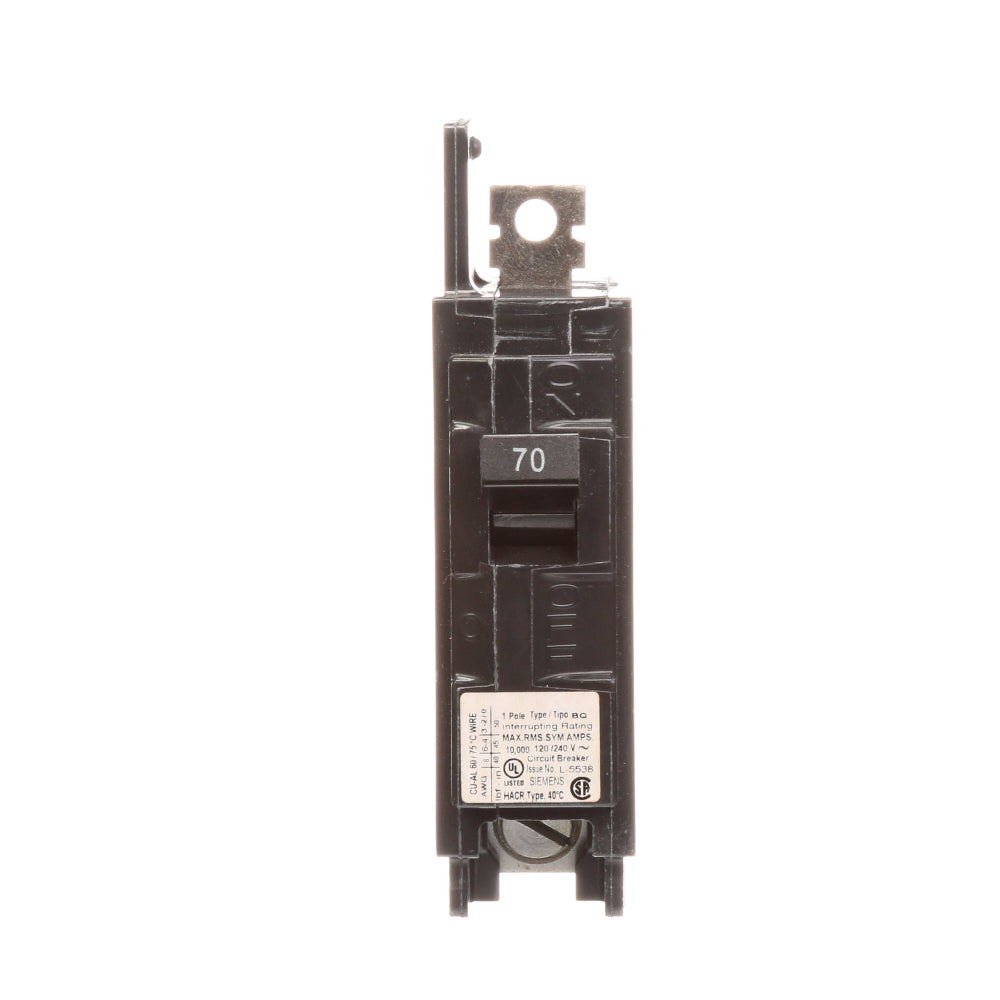

Siemens BQ1B070 Circuit Breaker | 120V 70A 1 Pole 10kA@120V Bolt-on BQ Series

Product Description:
The Siemens BQ1B070 is a molded case circuit breaker designed for reliable electrical protection. It features a 1-pole configuration with a 70 amp rating and 120V voltage capacity. This thermal magnetic breaker offers both long-time and instantaneous protection functions. It is compatible with Siemens panelboards and meets industry standards for safety and performance.

Key Features:
✔ Part Number: BQ1B070
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 120
✔ Amperage: 70
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQ
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643161184
✔ GTIN: 00783643161184
✔ Country of Origin: Mexico
✔ Dimensions: 1 in x 1 in x 4 in
✔ Weight: 0.35
✔ Panel Type: Siemens Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
