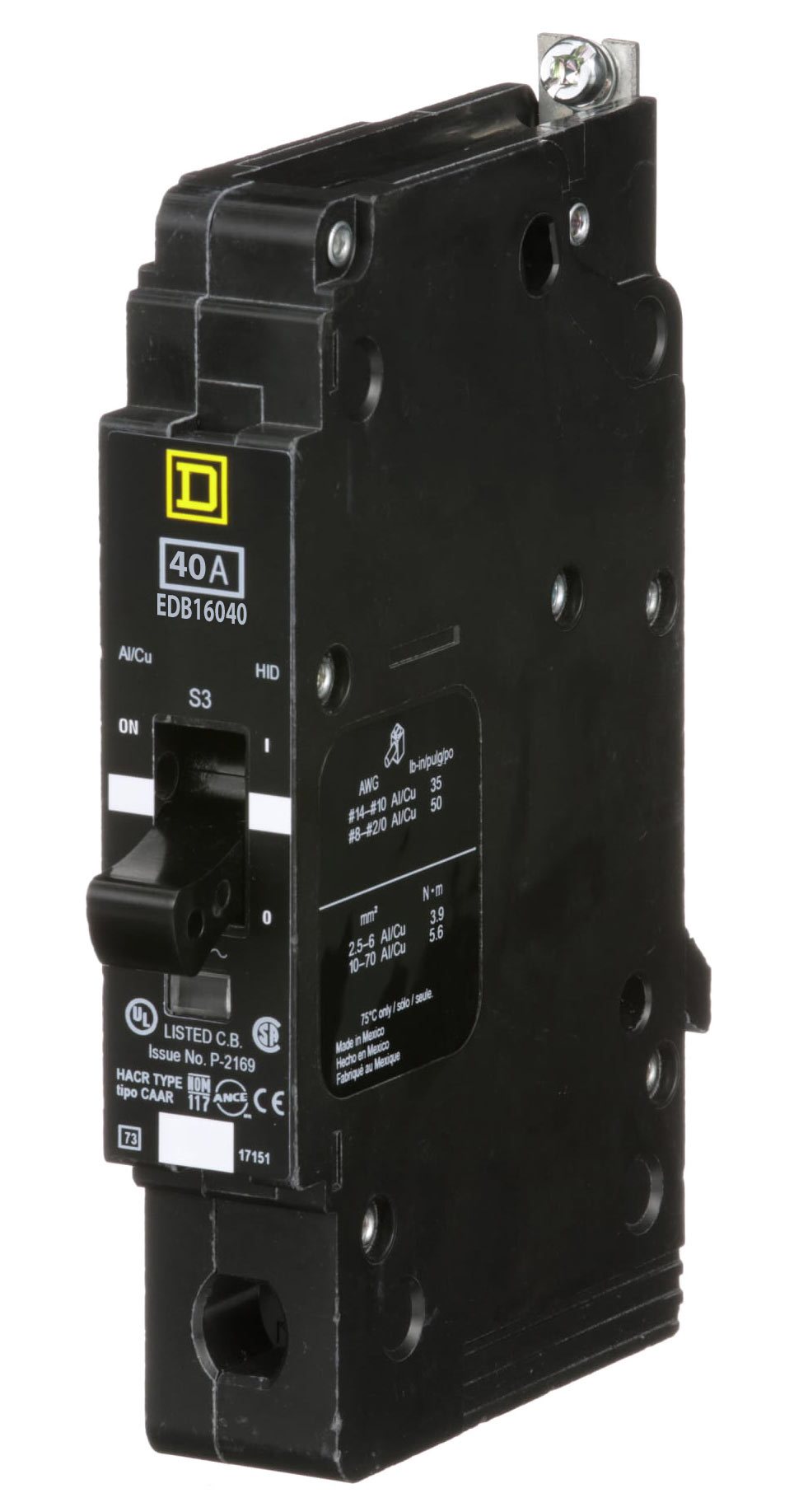

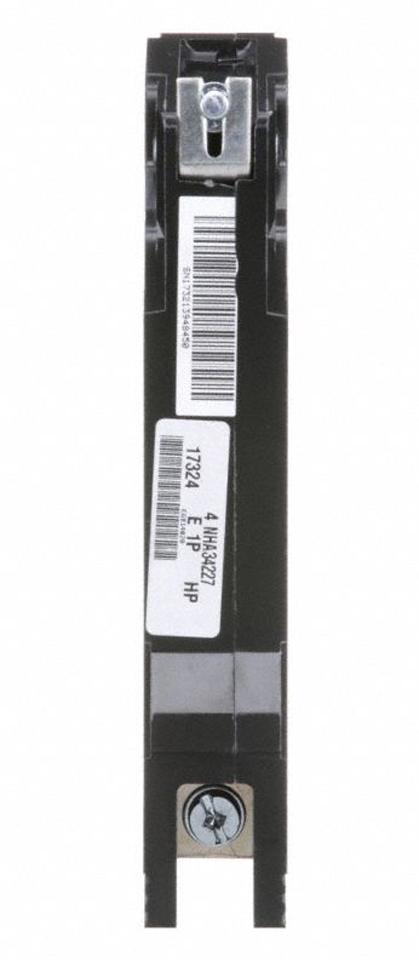

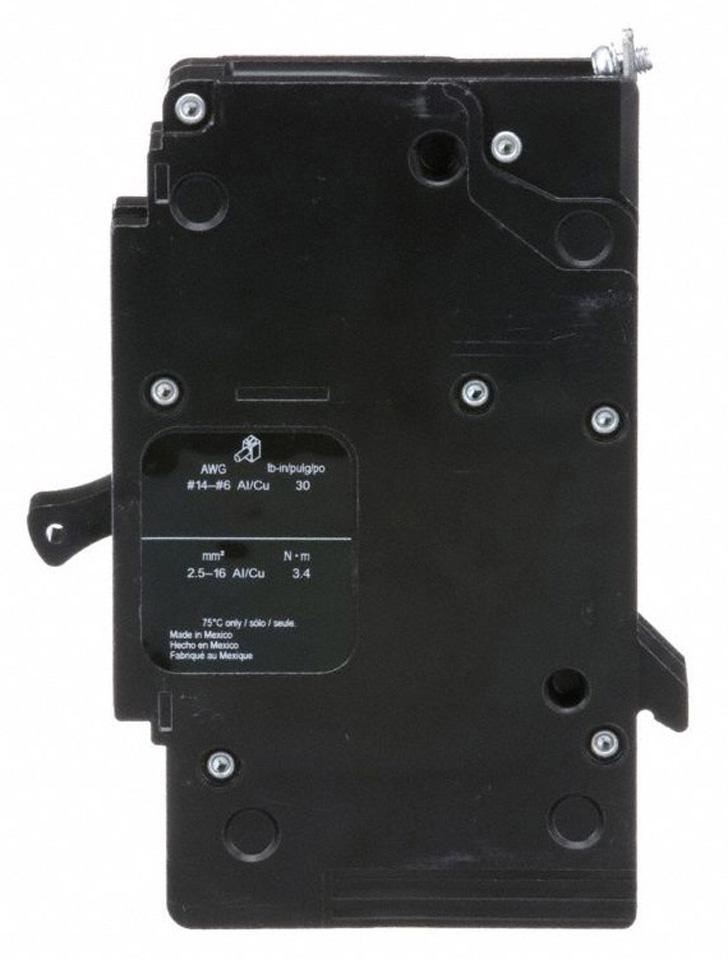

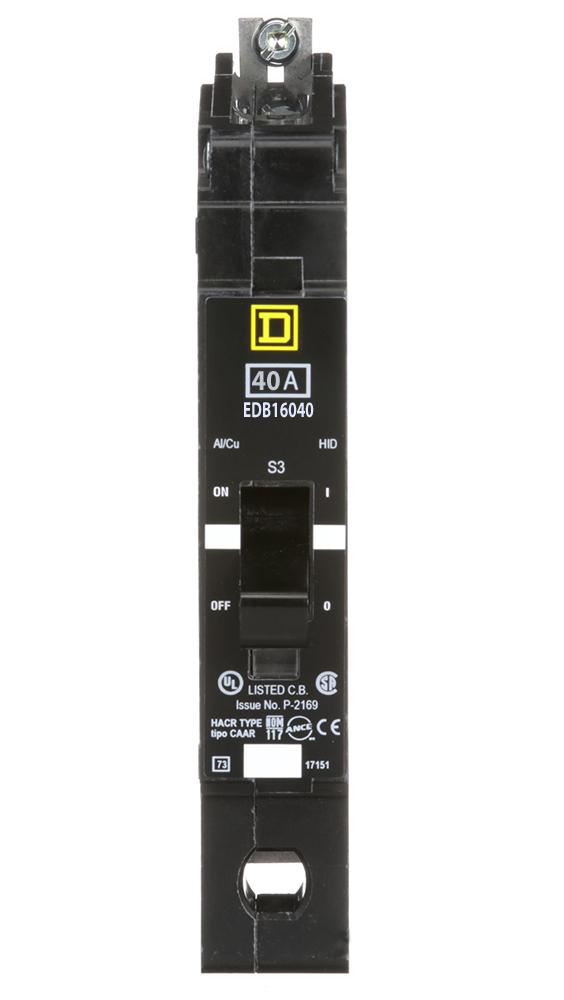

Square D EDB16040 Circuit Breaker | 600V 40A 1P 18kA@480V Bolt-On EDB Series

Product Description:
The Square D EDB16040 is a Molded Case Circuit Breaker from the EDB Series. It features a 1 pole design with a 600 Volt and 40 amp rating, plus an AIC rating of 18kA@480V. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: EDB16040
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EDB Series
✔ Type: EDB
✔ Voltage: 600
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 060648614329
✔ GTIN: 03606486143292
✔ Dimensions: Height 5.66 in (143.76 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Panel Type: NF panelboard
✔ Certification: IEC - cULus
✔ Wire Size: AWG 12...AWG 2/0 aluminum, AWG 14...AWG 2/0 copper
