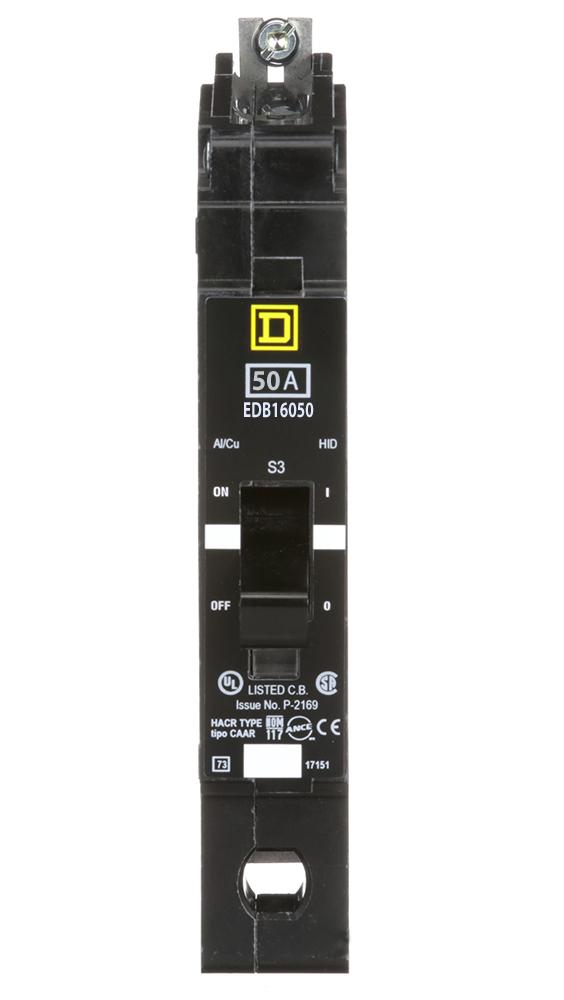

Square D EDB16050 Circuit Breaker | 600V 50A 1P 18kA@480V Bolt-On EDB Series

Product Description:
The Square D EDB16050 is a Molded Case Circuit Breaker from the EDB Series. It features 1 pole, 600V voltage, and a 50 amp rating with an AIC rating of 18kA@480V. This breaker uses a Bolt-On connection and provides Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: EDB16050
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EDB Series
✔ Type: EDB
✔ Voltage: 600
✔ Amperage: 50
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Protection: Thermal Magnetic
✔ UPC: 060648614331
✔ GTIN: 03606486143315
✔ Dimensions: Height 5.66 in (143.76 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Panel Type: NF panelboard
✔ Certification: IEC - cULus
✔ Wire Size: AWG 12...AWG 2/0 aluminum, AWG 14...AWG 2/0 copper
