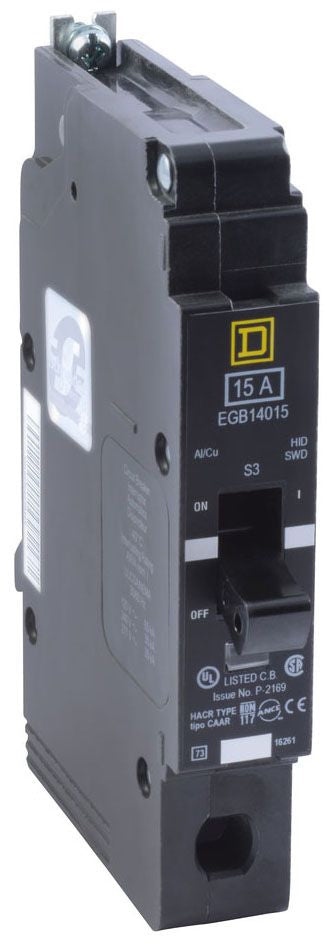

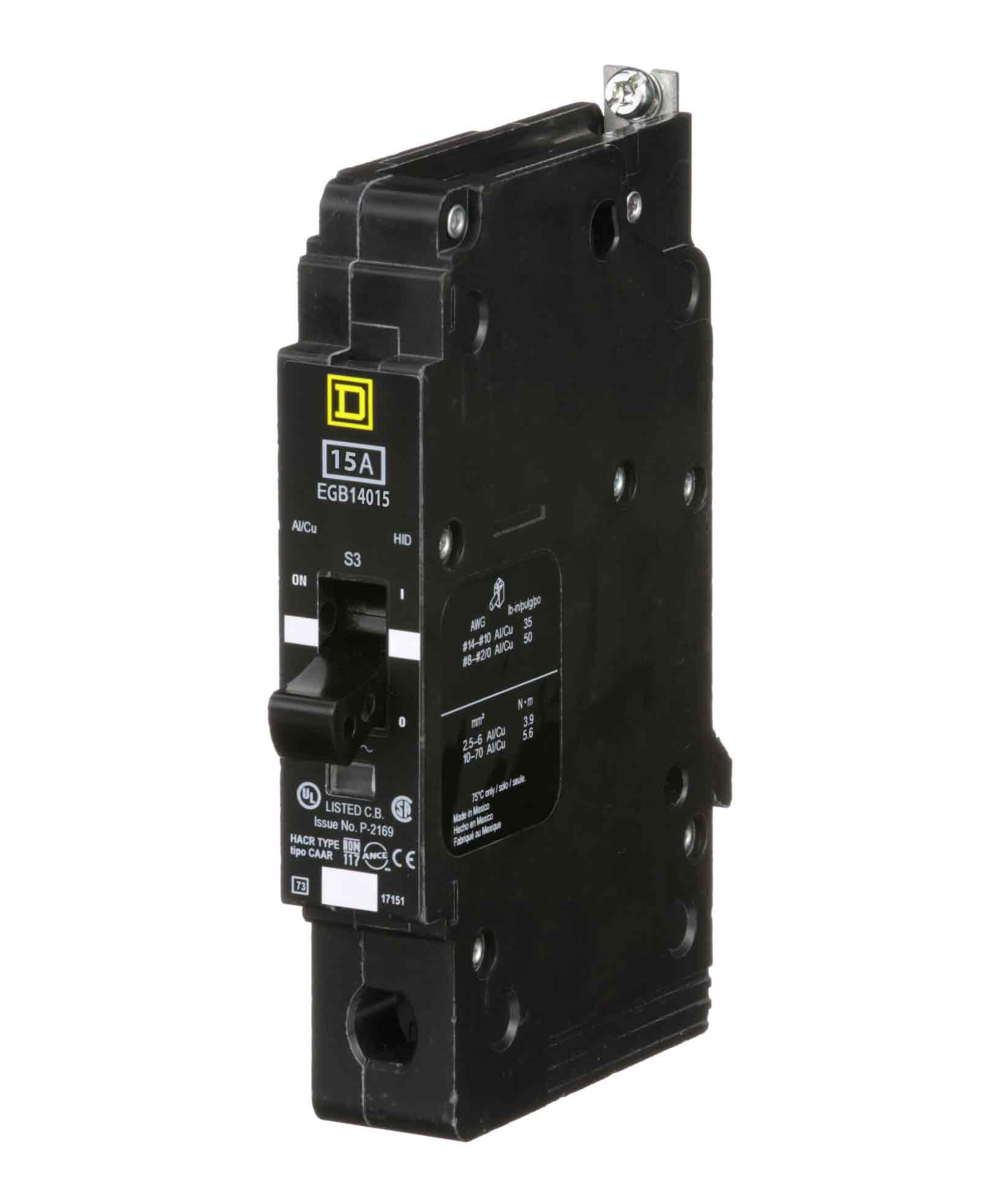

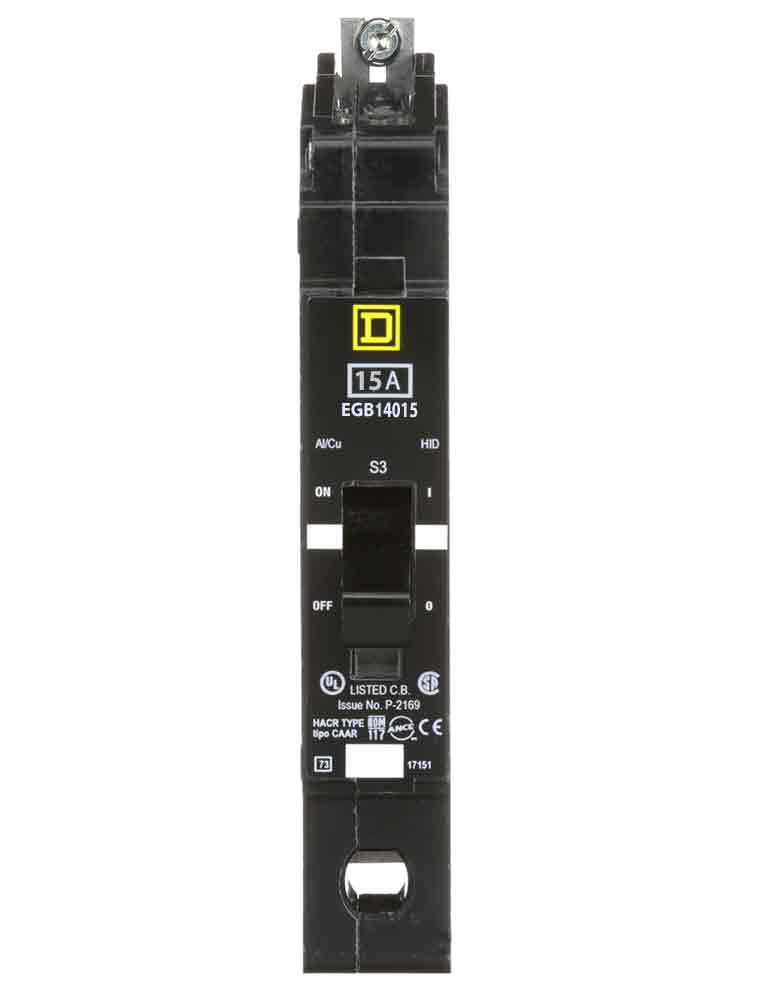

Square D EGB14015 Circuit Breaker | 277V 15A 1P 35kA@480V Bolt-On EGB Series

Product Description:
The Square D EGB14015 is a Molded Case Circuit Breaker from the EGB Series. It is a 1-pole, 15 amp breaker rated for 277 volts with a 35kA interrupting capacity at 480V. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation. It is designed for use in NF panelboards and is cULus certified.

Key Features:
✔ Part Number: EGB14015
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Type: EGB
✔ Voltage: 277
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/EGB
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901324980
✔ GTIN: 00785901324980
✔ Country of Origin: Mexico
✔ Dimensions: 0.98 in x 5.66 in x 5.66 in
✔ Weight: 0.64
✔ Panel Type: NF panelboard
✔ Standards: cULus
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 6 aluminum, AWG 14...AWG 6 copper
