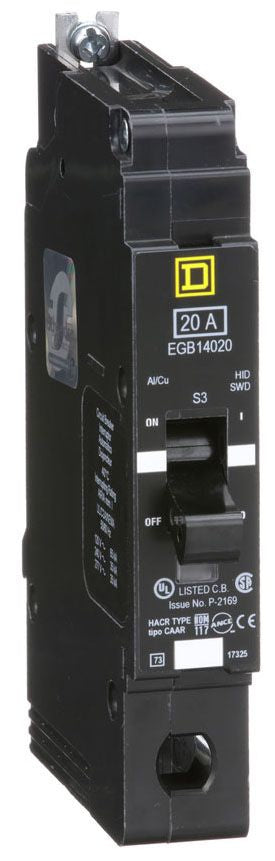

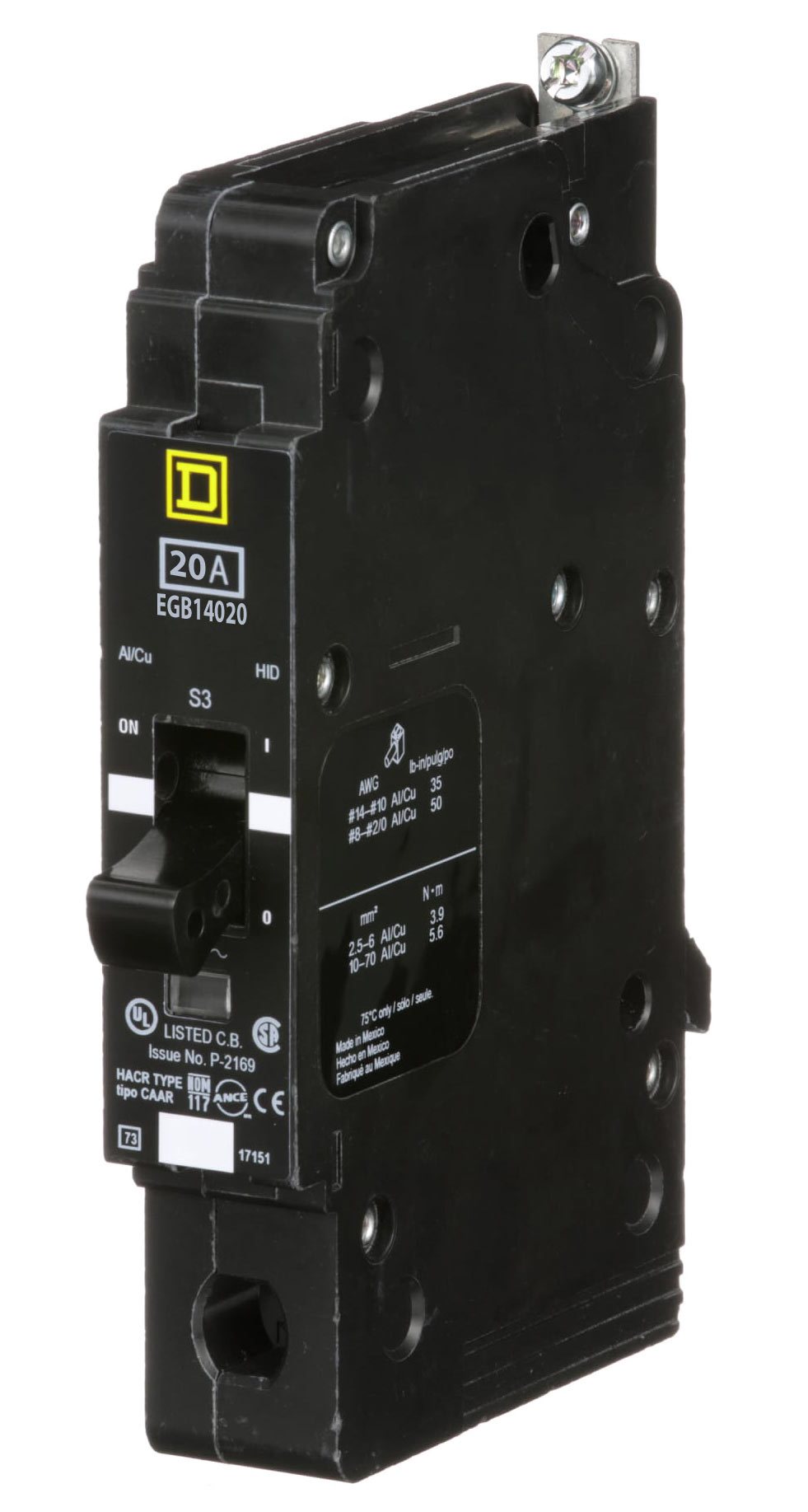

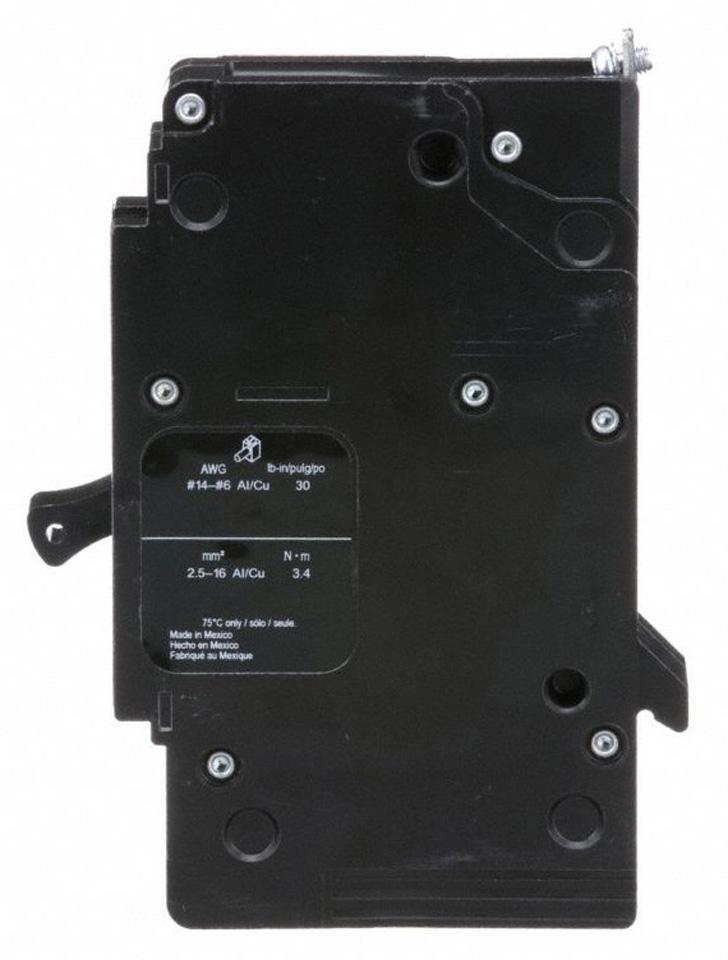

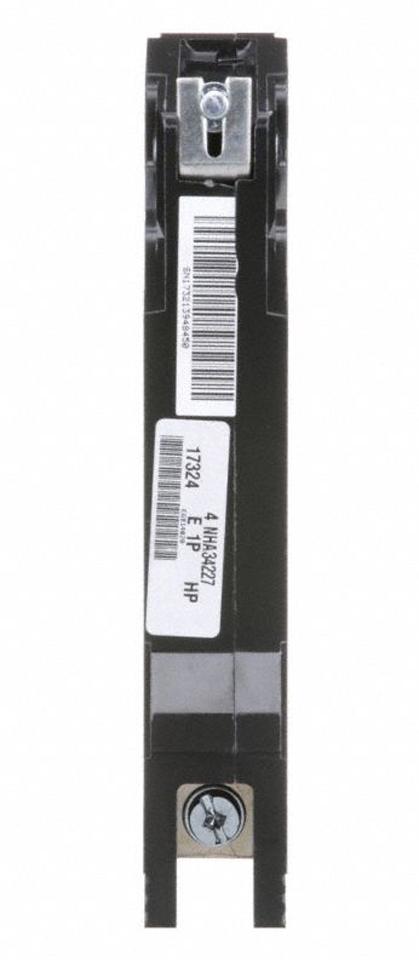

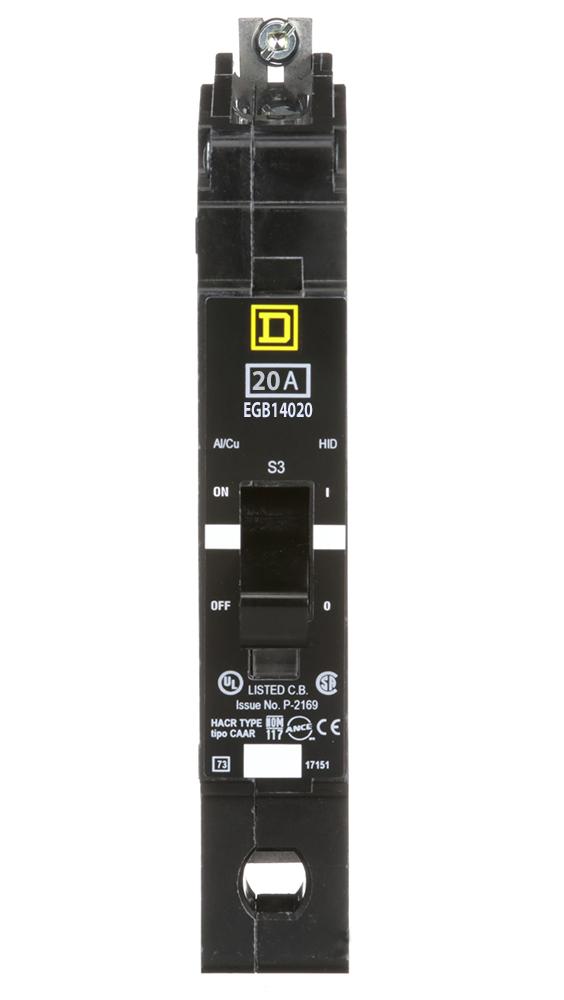

Square D EGB14020 Circuit Breaker | 277V 20A 1P 35kA@480V Bolt-on EGB Series

Product Description:
The Square D EGB14020 is a Molded Case Circuit Breaker from the EGB Series. It features a 1-pole design with a 277V, 20A rating and a 35kA@480V AIC rating. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation. It is suitable for NF panelboards and complies with cULus standards.

Key Features:
✔ Part Number: EGB14020
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Type: EGB
✔ Voltage: 277
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: G; E-Frame
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901072973
✔ GTIN: 00785901072973
✔ Country of Origin: Mexico
✔ Dimensions: 0.98 in x 5.66 in
✔ Weight: 1 lb
✔ Panel Type: NF panelboard
✔ Standards: cULus
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 6 aluminum, AWG 14...AWG 6 copper
