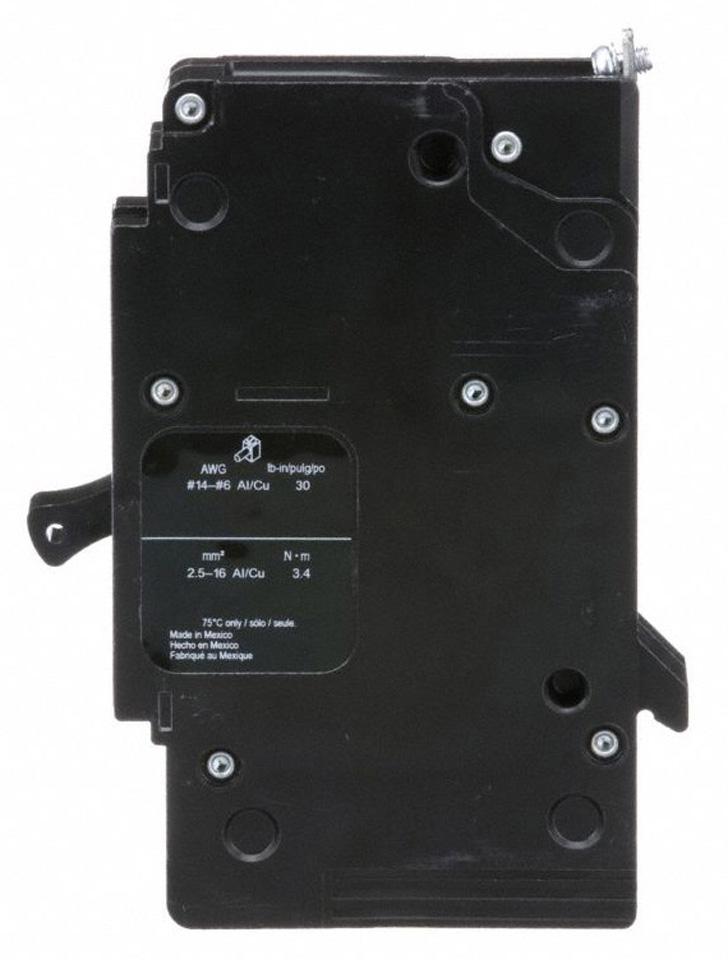

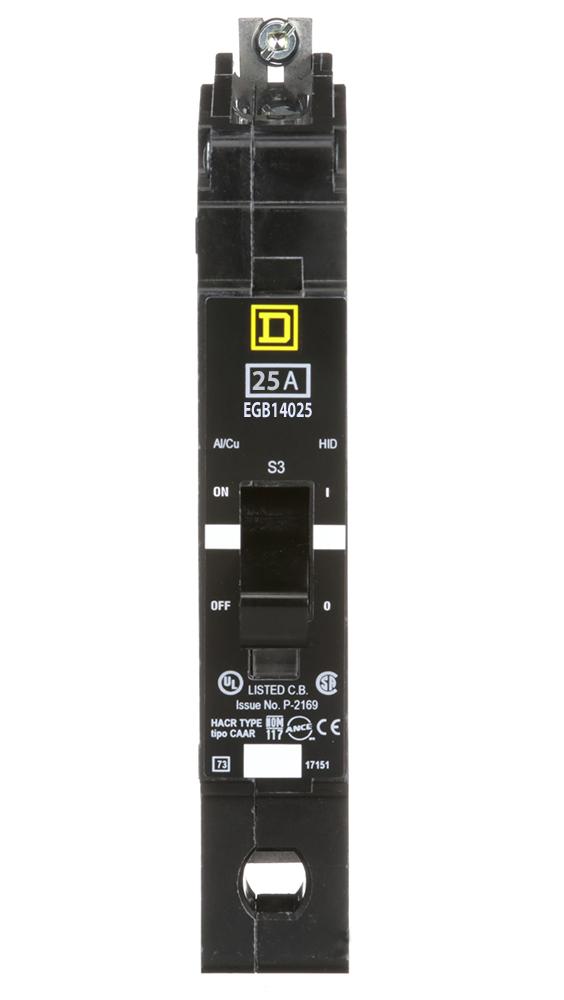

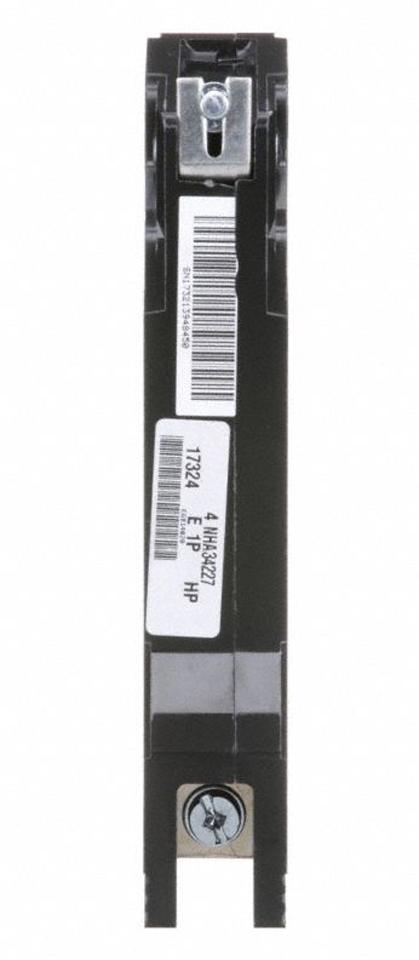

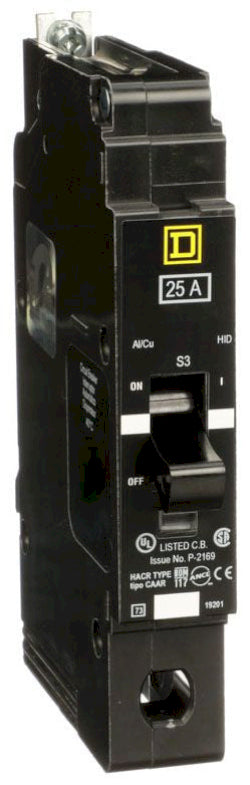

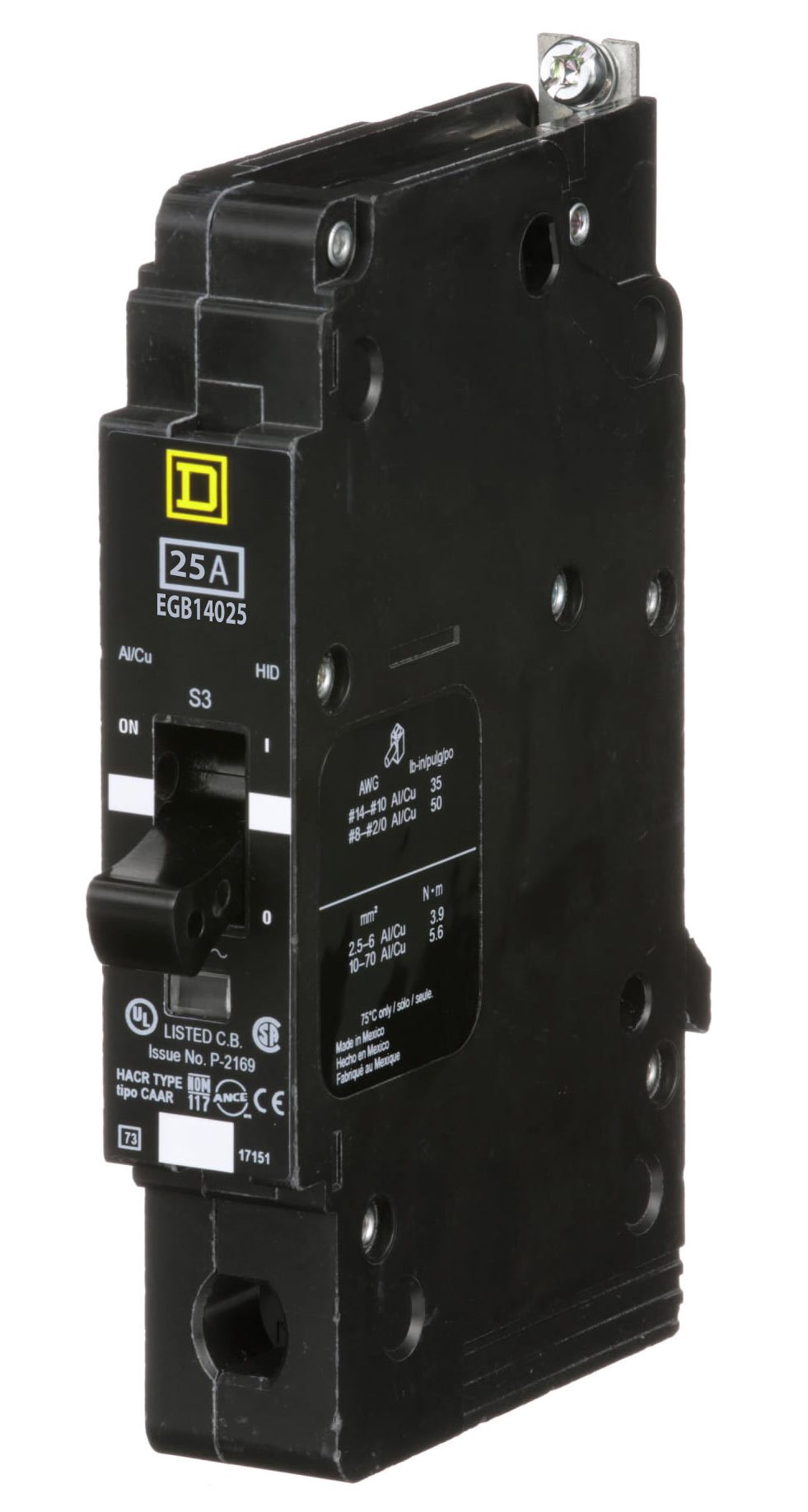

Square D EGB14025 Circuit Breaker | EGB Series EGB 277V 25A

Product Description:

The Square D EGB14025 is a 1-pole Molded Case Circuit Breaker designed for 277 Volt applications with a 25 amp rating. It features a high AIC rating of 35kA@480V and utilizes a Bolt-On connection for secure installation. This circuit breaker includes Thermal Magnetic protection and is part of the EGB Series family, manufactured by Square D.

Key Features:
✔ Part Number: EGB14025
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Type: EGB
✔ Voltage: 277
✔ Amperage: 25
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Protection: Thermal Magnetic
✔ UPC: 785901335177
✔ GTIN: 00785901335177
✔ Country of Origin: Mexico
✔ Dimensions: Height 5.66 in (143.76 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 2
✔ Panel Type: NF panelboard
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 6 aluminum, AWG 14...AWG 6 copper
