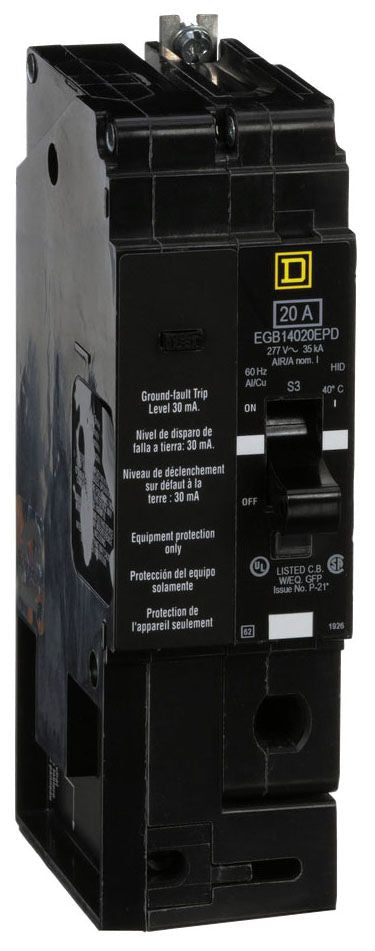

Square D EGB14020EPD Circuit Breaker | 277V 20A 1P 35kA@480V Bolt-On EGB Series

Product Description:
The Square D EGB14020EPD is a Molded Case Circuit Breaker from the EGB Series. It features a 1-pole design with a 277V, 20A rating and a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance. It is suitable for NF panelboards and complies with cULus standards.

Key Features:
✔ Part Number: EGB14020EPD
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Type: EGB
✔ Voltage: 277
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: G; E-Frame
✔ MCM Size: Min. Wire Size 14 AWG (Cu), 12 AWG (Al) Max. Wire Size 6 AWG (Cu), 4 AWG (Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901470458
✔ GTIN: 00785901470458
✔ Country of Origin: Mexico
✔ Dimensions: 1.96 in x 6.64 in
✔ Weight: 2
✔ Panel Type: NF panelboard
✔ Standards: cULus
✔ Certification: cULus
✔ Wire Size: AWG 14...AWG 6 copper, AWG 12...AWG 4 aluminum
