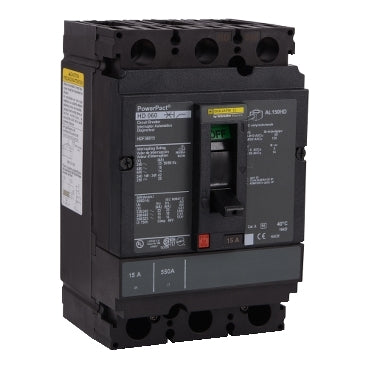

Square D HDF36035 Circuit Breaker | 600V 35A 3P 18kA@480V Bolt-On Powerpact

Product Description:
The Square D HDF36035 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 35A rating and an 18kA@480V AIC rating. This breaker uses a bolt-on connection and offers thermal magnetic protection. It does not include lugs, which must be ordered separately if needed.

Key Features:
✔ Part Number: HDF36035
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDF
✔ Voltage: 600
✔ Amperage: 35
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: H Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901944621
✔ GTIN: 00785901944621
✔ Dimensions: Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.81
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
