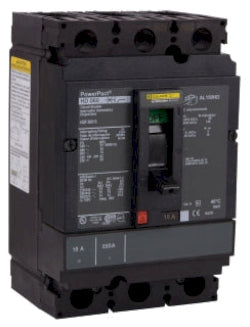

Square D HDF36050 Circuit Breaker | 600V 50A 3P 18kA@480V Bolt-On Powerpact

Product Description:
The Square D HDF36050 is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 50 amp rating with an 18kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection. It does not include lugs, but they can be sourced separately.

Key Features:
✔ Part Number: HDF36050
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDF
✔ Voltage: 600
✔ Amperage: 50
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Busbar Connection
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901634539
✔ GTIN: 00785901634539
✔ Country of Origin: Mexico
✔ Dimensions: 104 mm x 163 mm
✔ Weight: 1.9
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
