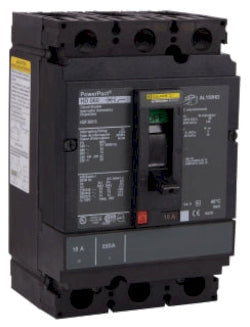

Square D HDF36060 Circuit Breaker | 600V 60A 3P 18kA@480V Bolt-On Powerpact HDF

Product Description:
The Square D HDF36060 is a Powerpact HDF series molded case circuit breaker designed for robust electrical protection.
It is a 3-pole, 60 amp breaker rated for 600 volts with an 18kA interrupting capacity at 480V.
This thermal magnetic circuit breaker features a bolt-on connection for secure installation and reliable performance.
It supports a wide range of wire sizes from 14 AWG to 3/0 AWG for both copper and aluminum conductors.

Key Features:
✔ Part Number: HDF36060
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDF
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Busbar Connection
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901387053
✔ GTIN: 00785901387053
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.81
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
