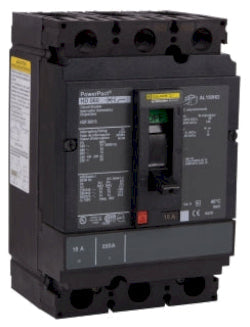

Square D HDF36125 Circuit Breaker | 600V 125A 3P 18kA@480V Bolt-On Powerpact

Product Description:
The Square D HDF36125 is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and 125A amperage with an 18kA@480V AIC rating. This thermal magnetic breaker uses a bolt-on connection and is suitable for busbar applications. It supports wire sizes from 14 AWG to 3/0 AWG for both copper and aluminum terminals.

Key Features:
✔ Part Number: HDF36125
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDF
✔ Voltage: 600
✔ Amperage: 125
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Busbar Connection
✔ Frame Size: H
✔ Wire Size: AWG 14...AWG 3/0 aluminum/copper terminal
✔ UPC: 785901437420
✔ GTIN: 00785901437420
✔ Country of Origin: United States
✔ Dimensions: 4.12 in x 6.4 in
✔ Weight: 1.81
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
