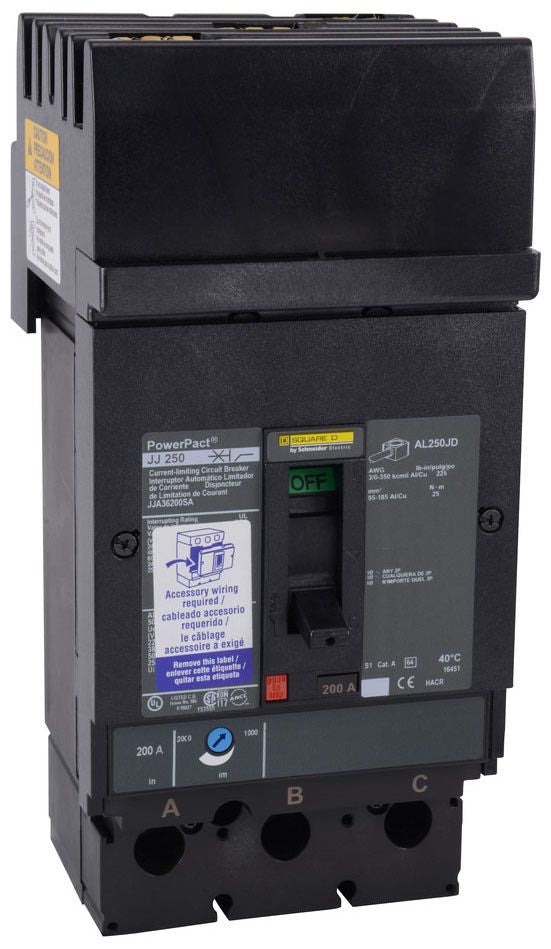

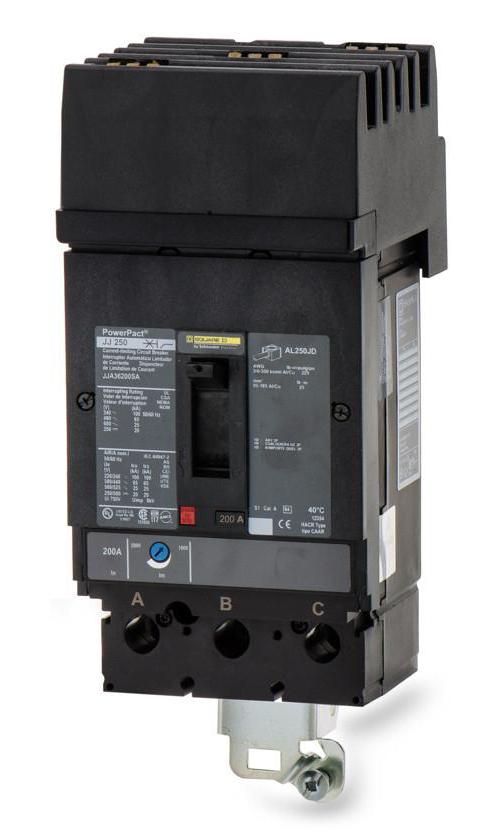

Square D JJA36200SA Circuit Breaker | 600V 200A 3P 65kA@480V I-Line Plug-In Powerpact

Product Description:
The Square D JJA36200SA is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 200 amp breaker rated for 600 Volts with an AIC rating of 65kA@480V. This unit features a convenient I-Line Style Plug-In connection and provides reliable Thermal Magnetic protection for electrical systems.

Key Features:
✔ Part Number: JJA36200SA
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJA
✔ Voltage: 600
✔ Amperage: 200
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 350 kcmil (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901428633
✔ GTIN: 00785901428633
✔ Country of Origin: United States
✔ Dimensions: 4.09 in x 7.52 in
✔ Weight: 5.3
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
