Square D JJA36200YP Circuit Breaker | 600V 200A 3P 65kA@480V I-Line Plug-In Powerpact

Product Description:

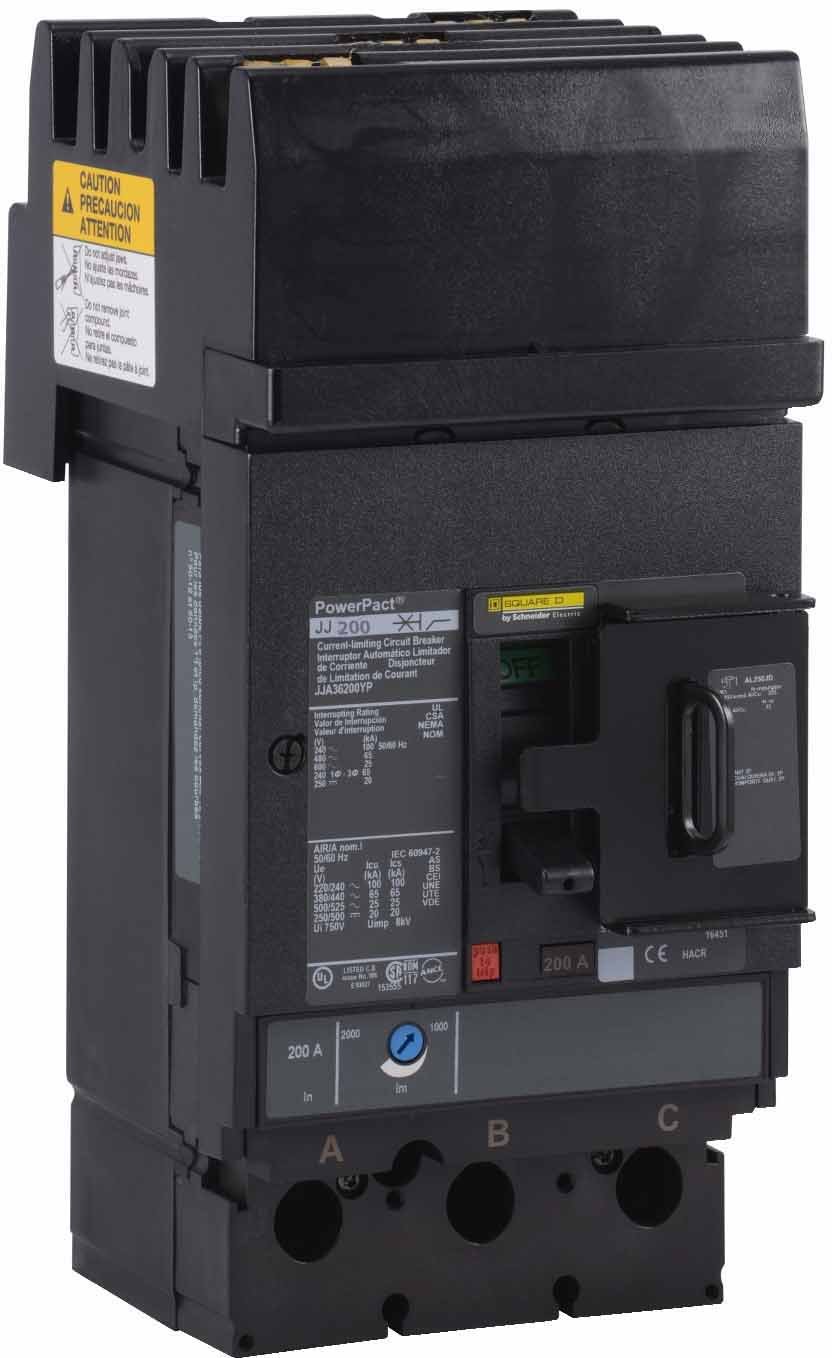

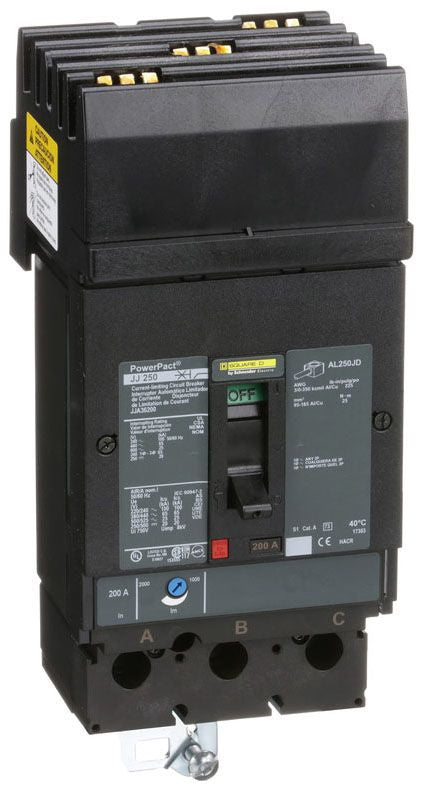

The Square D JJA36200YP is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 200 amps and 600 volts, with an AIC rating of 65kA@480V. This model features an I-Line Style Plug-In connection and provides Thermal Magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: JJA36200YP
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJA
✔ Voltage: 600
✔ Amperage: 200
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: J Frame
✔ Protection: Thermal Magnetic
✔ UPC: 060648628335
✔ GTIN: 03606486283356

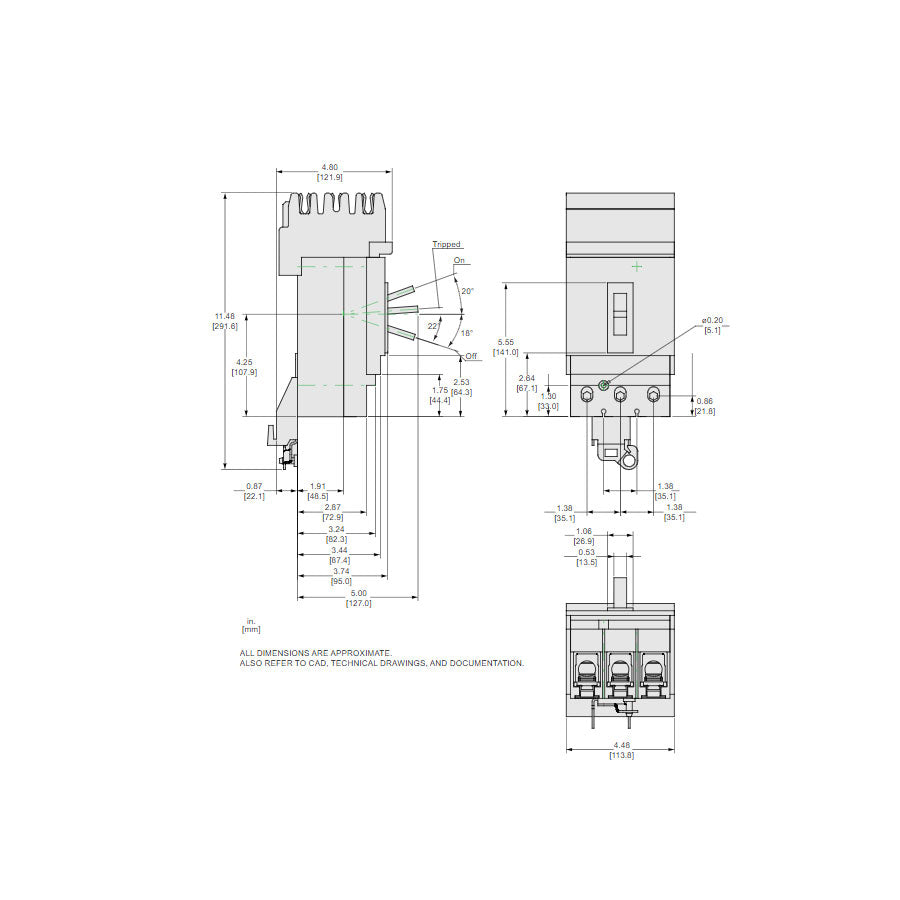

✔ Dimensions: Height 7.52 in (191 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 5.3
✔ Wire Size: AWG 3/0...350 kcmil aluminum/copper terminals
