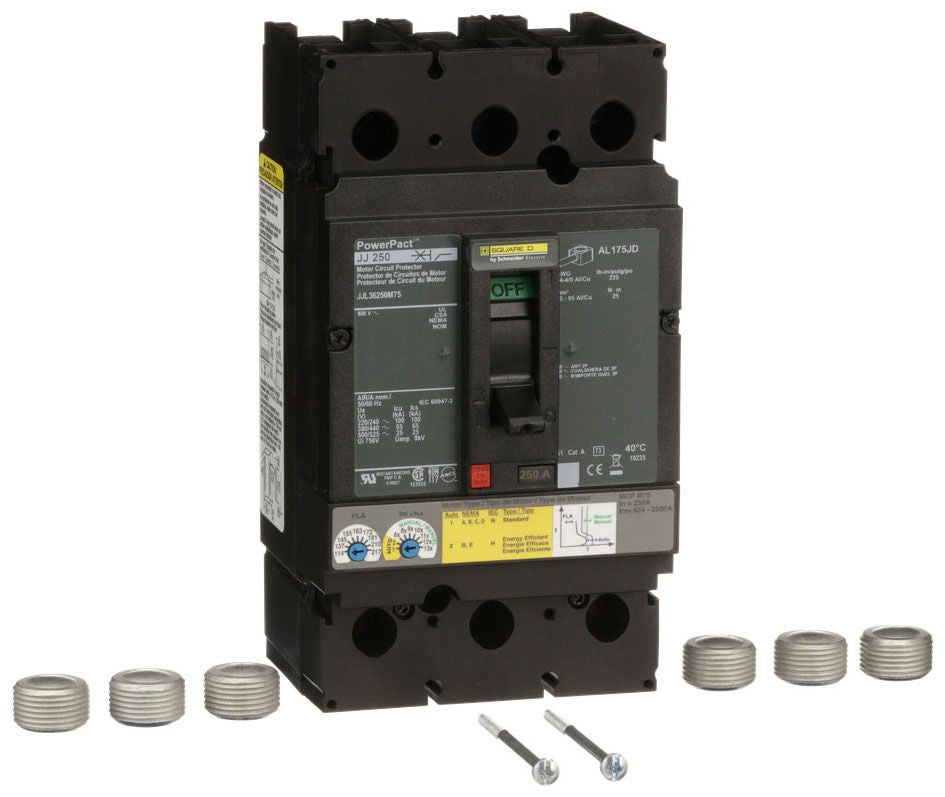

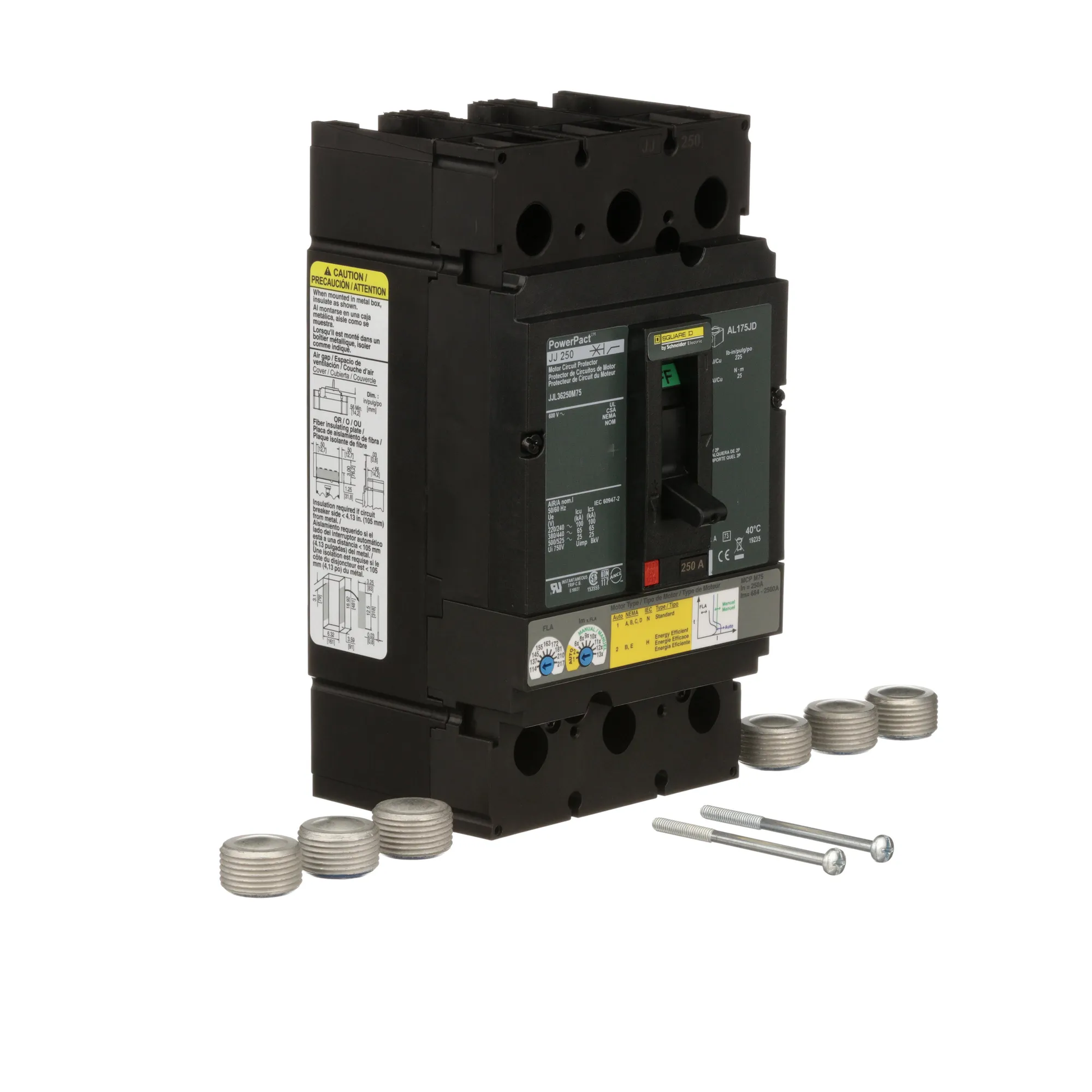

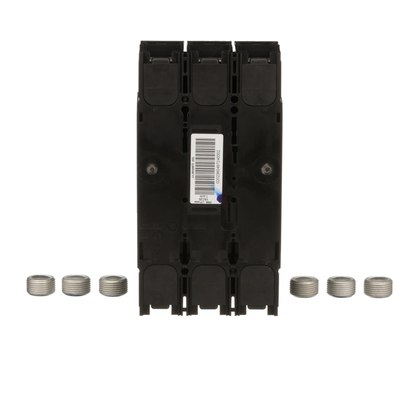

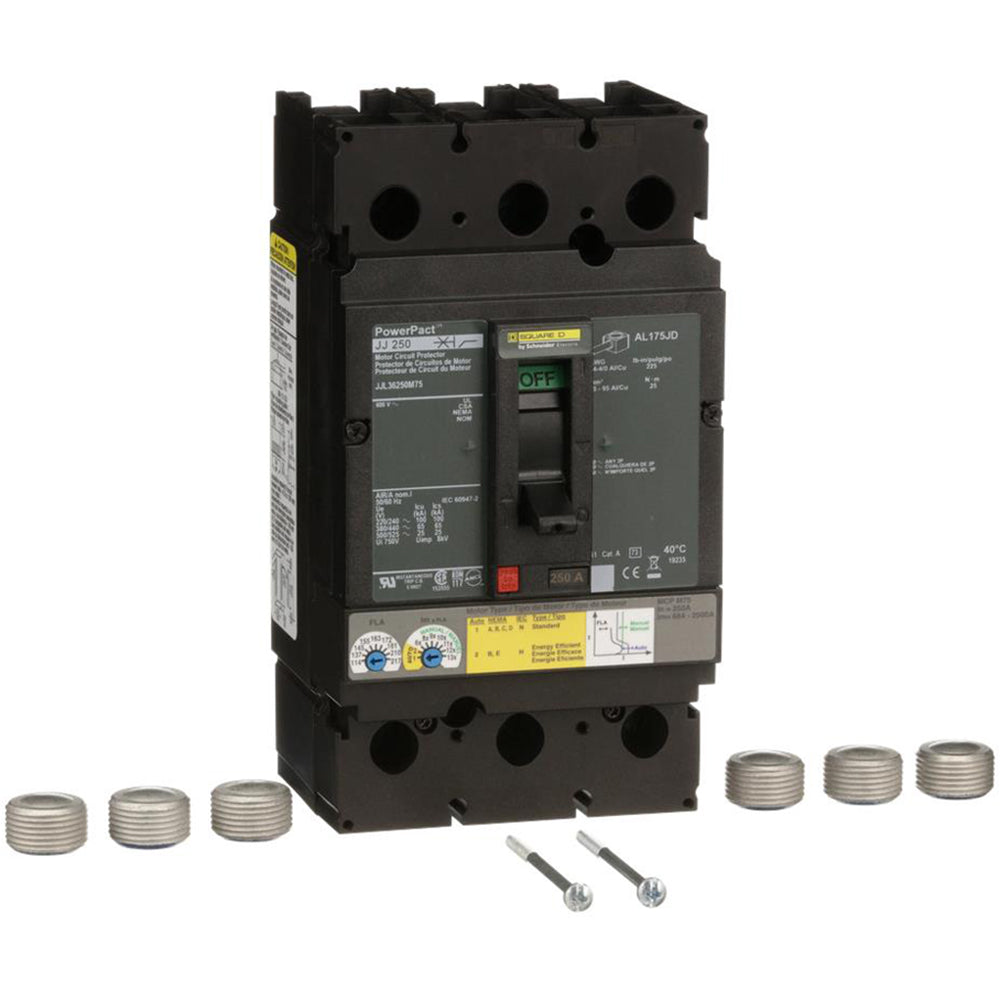

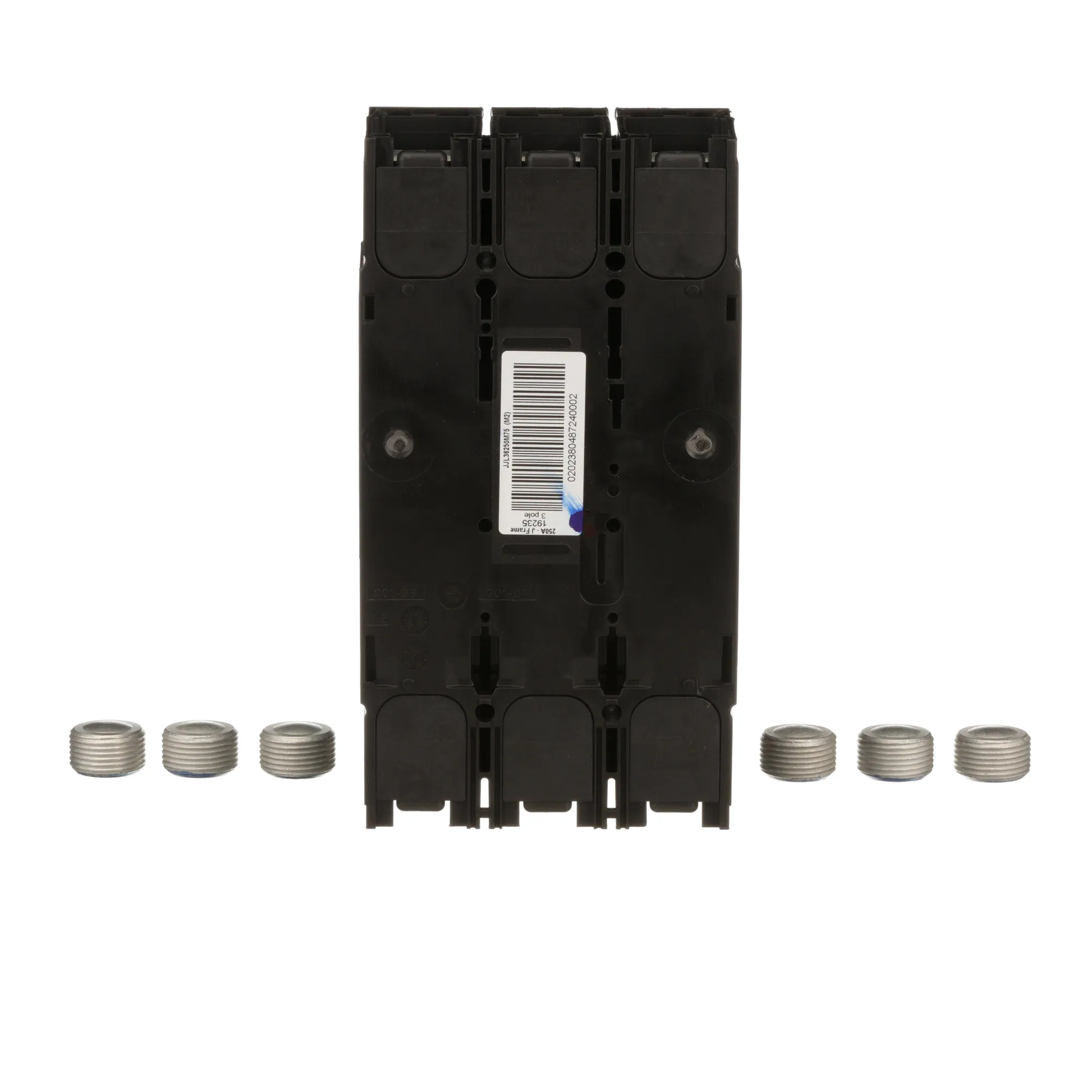

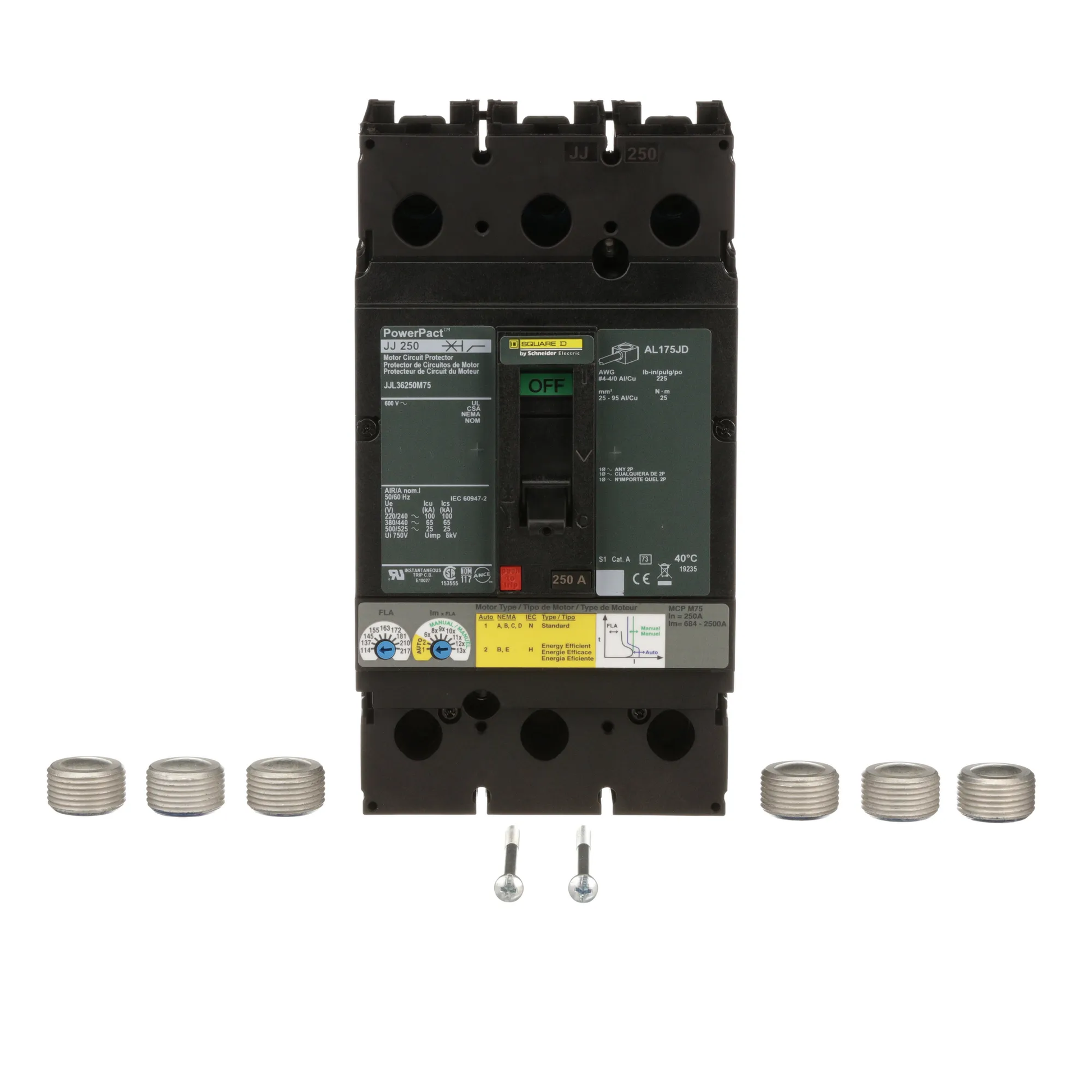

Square D JJL36250M75 Circuit Breaker | 600V 250A 3P 65kA@480V Feed-Thru Powerpact

Product Description:
The Square D JJL36250M75 is a Powerpact family molded case circuit breaker designed for robust electrical protection. It is a 3-pole, 250 amp breaker rated for 600 volts with a 65kA interrupting capacity at 480V. This model features a feed-thru connection and magnetic-only protection, making it suitable for motor circuit applications.

Key Features:
✔ Part Number: JJL36250M75
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JJL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: I - Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 250A/JJ
✔ Wire Size: Min. Wire Size 3 AWG Max. Wire Size 350 MCM
✔ Breaker Type: Motor Circuit Protector
✔ Protection: Magnetic Only
✔ Phase Connection: ABC
✔ UPC: 785901541134
✔ GTIN: 00785901541134
✔ Country of Origin: Mexico

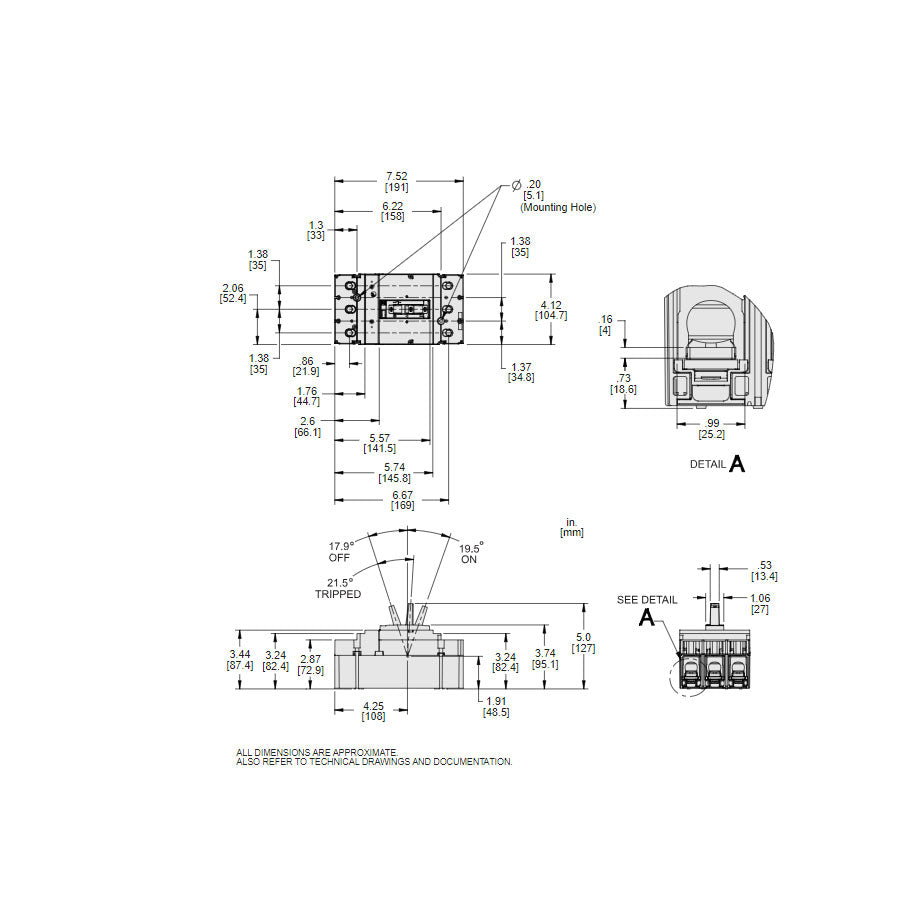

✔ Dimensions: 4.12 in x 7.52 in
✔ Weight: 2.32
✔ Standards: CCC, CE, IEC, UR
✔ Certification: CCC, CE, IEC, UR
