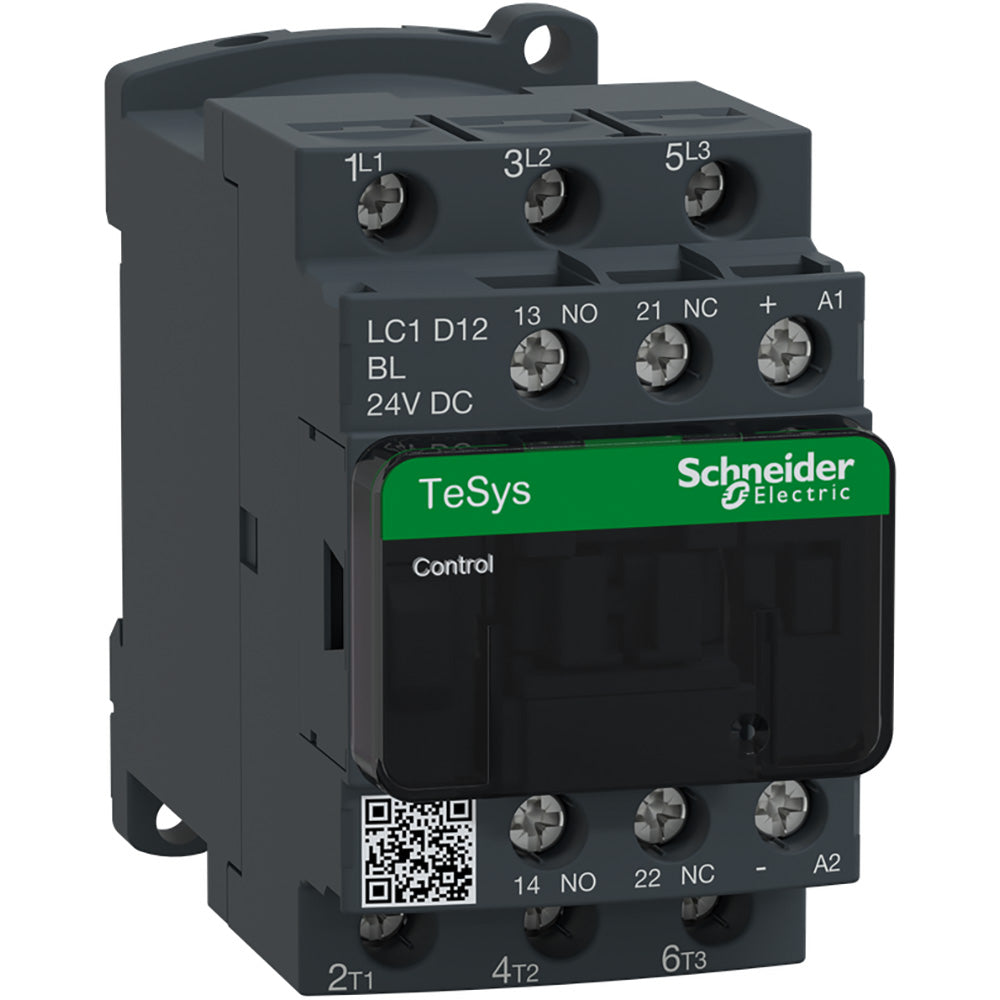

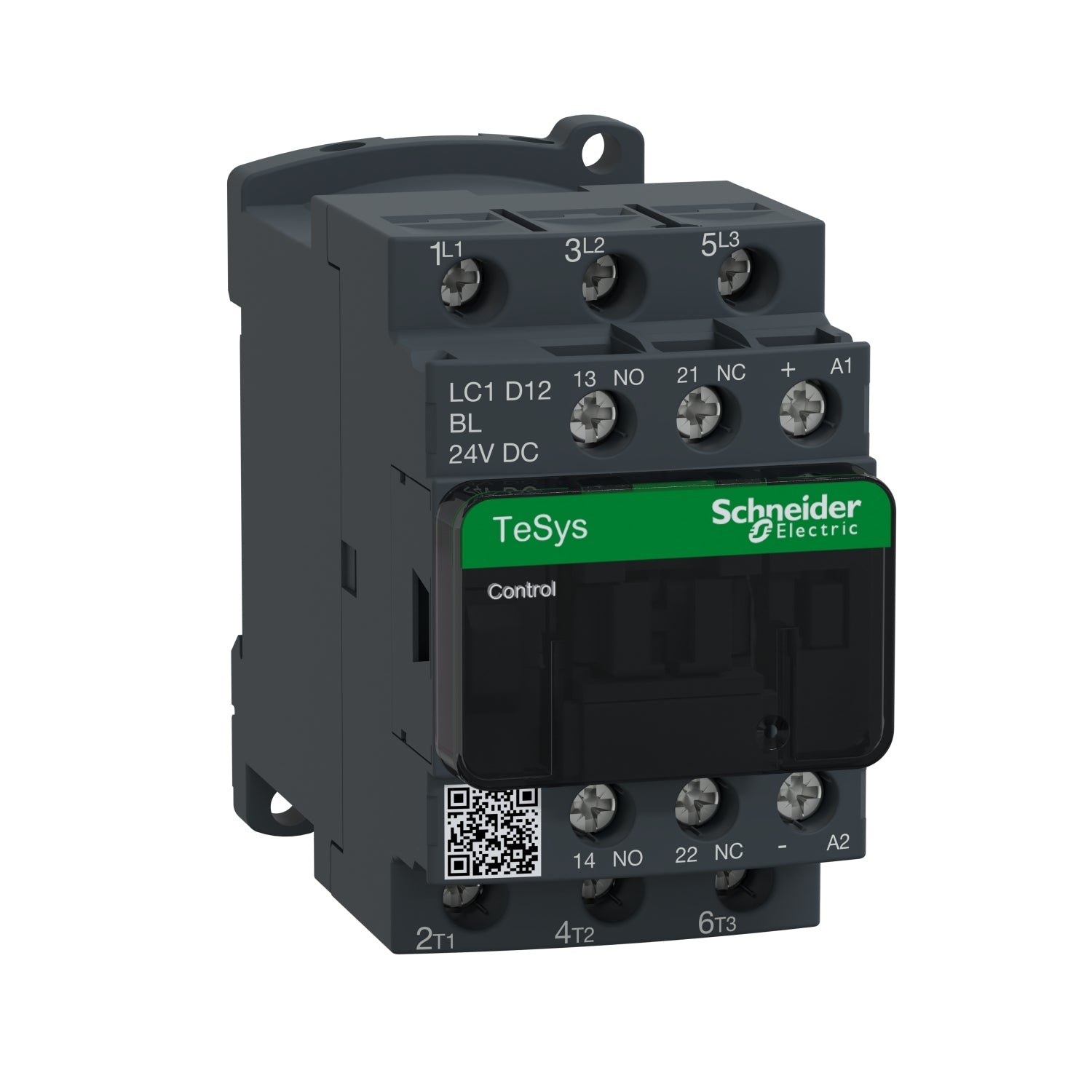

Schneider Electric LC1D12BL Contactor 3 Pole 690V 24VDC TeSys D

Product Description:
The Schneider Electric LC1D12BL is a 3-pole contactor designed for motor control applications with a maximum voltage rating of 690V. It features a 24 VDC coil and is suitable for a wide range of horsepower ratings across different voltages and motor phases. This TeSys D IEC contactor is built for reliable performance in industrial environments.

Key Features:
✔ Part Number: LC1D12BL
✔ Manufacturer: Telemecanique/Schneider Electric
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 690
✔ Poles: 3
✔ Horse Power: 0.5 hp at 115 V AC 50/60 Hz for 1 phase motors-2 hp at 230/240 V AC 50/60 Hz for 1 phase motors-3 hp at 200/208 V AC 50/60 Hz for 3 phases motors-3 hp at 230/240 V AC 50/60 Hz for 3 phases motors-7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors-10 hp at 575/600 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 3 NO
✔ UPC: 038911036146
✔ GTIN: 03389110361469
✔ Country of Origin: Indonesia
✔ Dimensions: 1.77 in x 3.03 in
✔ Weight: 1.18
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
