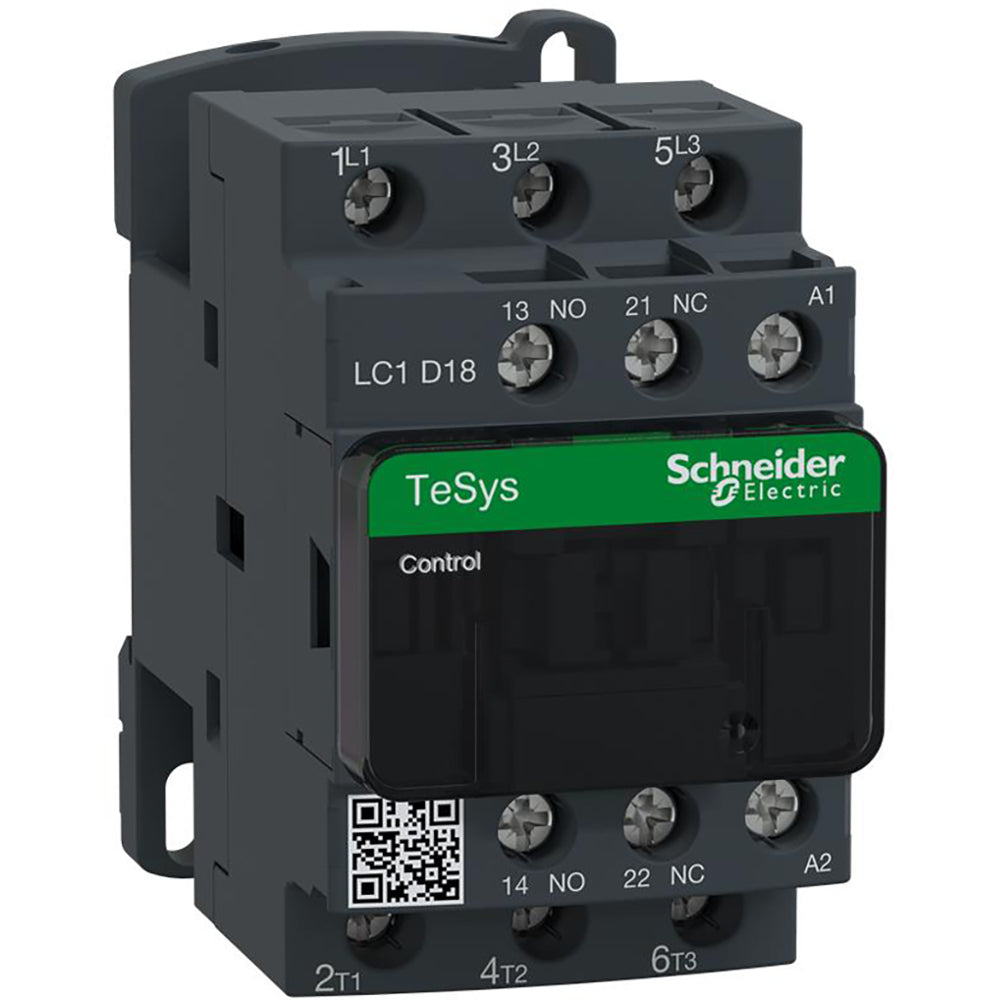

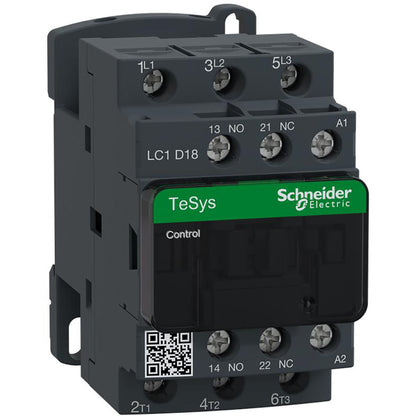

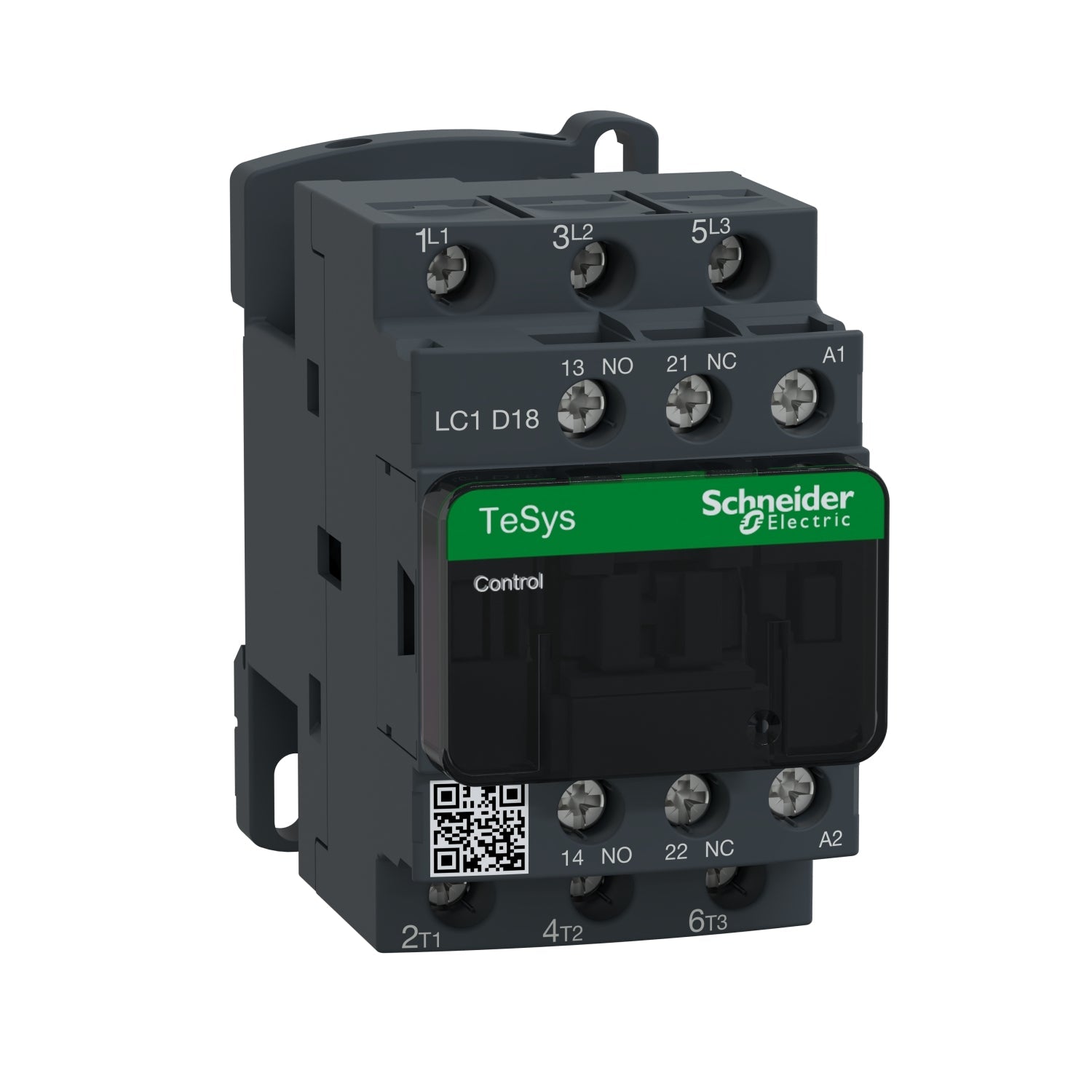

Schneider Electric LC1D18F7 Contactor 3P 600V 32A 110V Coil TeSys D

Product Description:
This Schneider Electric LC1D18F7 is a 3-pole contactor designed for motor starting applications. It operates at 600V and 32A, with a 110V AC coil. The contactor supports a range of horsepower ratings for both single-phase and three-phase motors across various voltages.

Key Features:
✔ Part Number: LC1D18F7
✔ Manufacturer: Schneider Electric/Telemecanique
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 600
✔ Amperage: 32
✔ Poles: 3
✔ Horse Power: 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 110
✔ Coil Voltage Minimum: 110
✔ Frequency: 50/60 Hz
✔ UPC: 038911034945
✔ GTIN: 03389110349450
✔ Country of Origin: France
✔ Dimensions: 1.77 in (45 mm) x 3.03 in (77 mm)
✔ Weight: 0.8
✔ Certification: CSA C22.2 No 14; EN 60947-4-1; EN 60947-5-1; IEC 60947-4-1; IEC 60947-5-1; UL 508; IEC 60335-1
