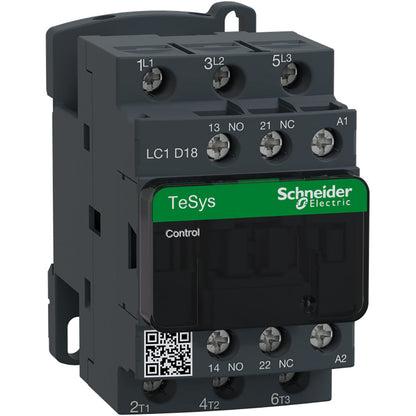

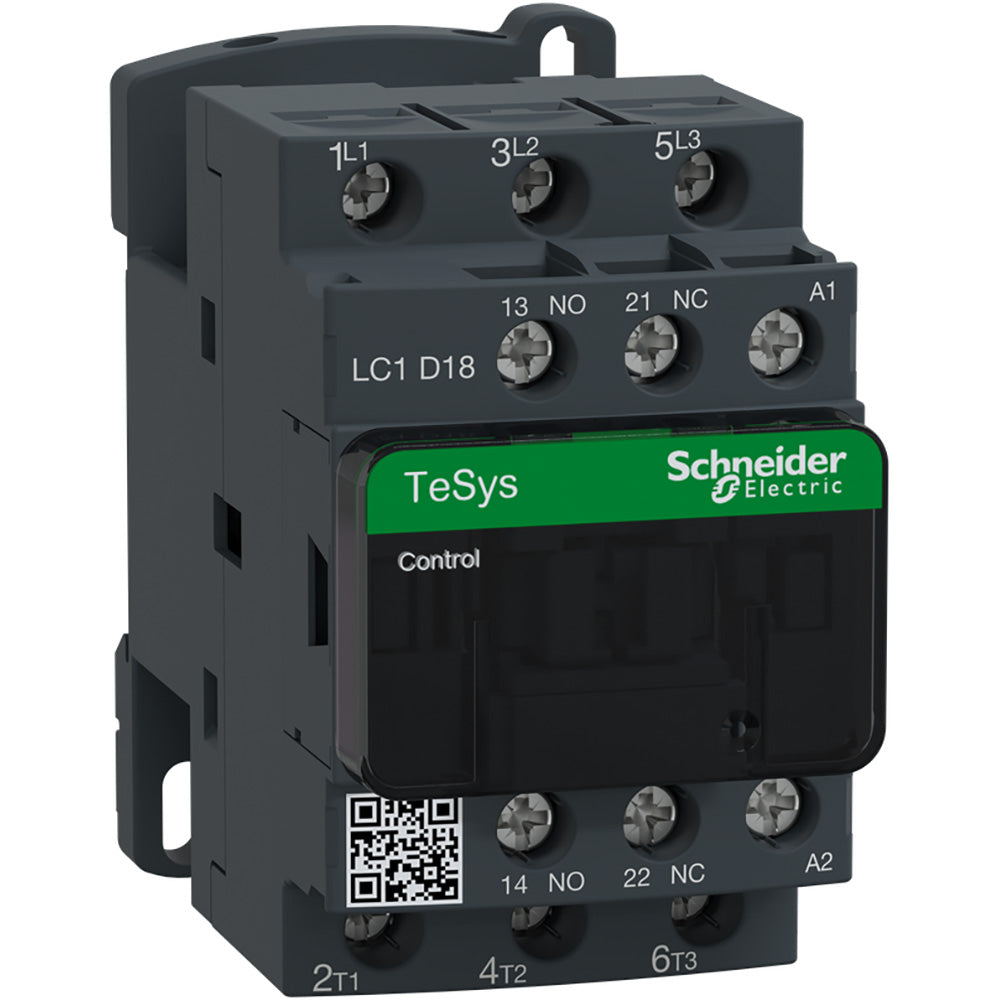

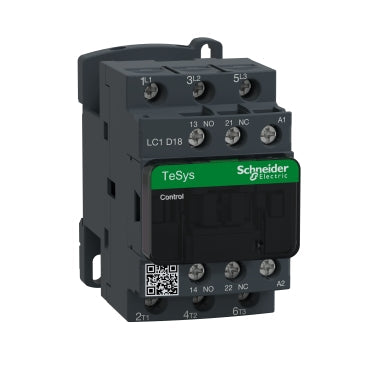

Square D LC1D18G7 Contactor | 3P 3-Phase 600V 32A 110V Coil TeSys D

Product Description:
The Square D LC1D18G7 TeSys D Contactor is a 3-phase, 3-pole starter rated for 600V and 32A. It is designed for motor control applications with a 110V coil and supports various horsepower ratings depending on voltage and phase. This non-reversing contactor includes 1NO/1NC auxiliary contacts for enhanced control flexibility.

Key Features:
✔ Part Number: LC1D18G7
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: TeSys D
✔ Type: LC
✔ Voltage: 600
✔ Amperage: 32
✔ Phase: 3
✔ Poles: 3
✔ Configuration: Non reversing
✔ Aux Contacts: 1NO/1NC
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: Full Load Amps-Inductive 18A Full Load Amps-Resistive 32A
✔ Coil Voltage Minimum: 110
✔ UPC: 785901207108
✔ GTIN: 03389110349474
✔ Country of Origin: Indonesia
✔ Dimensions: 3.03 in x 1.8 in x 3.4 in
✔ Weight: 0.8 lb
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
