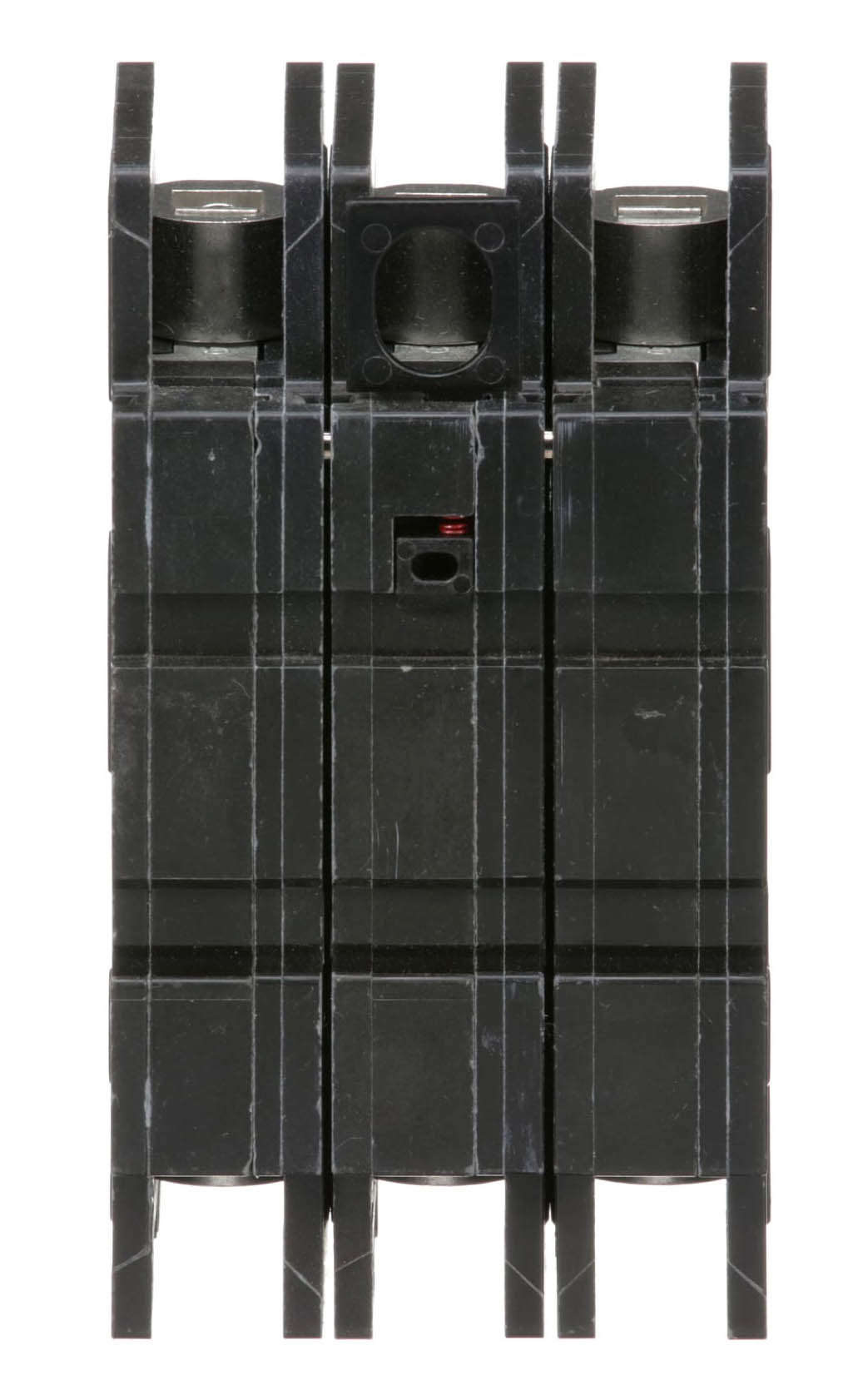

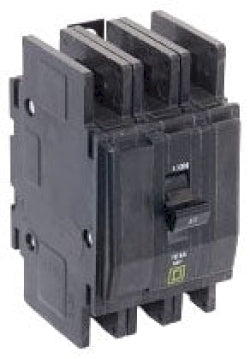

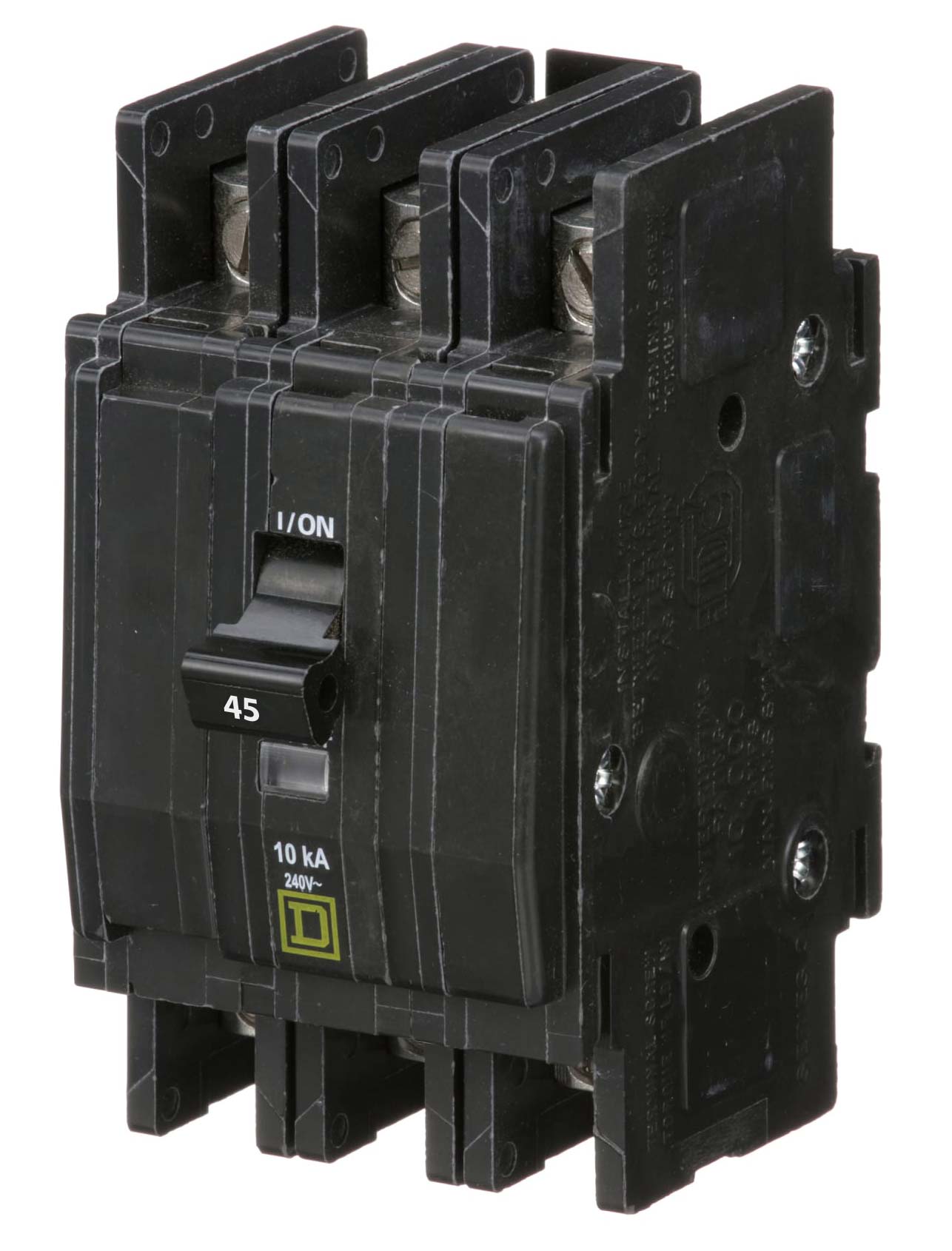

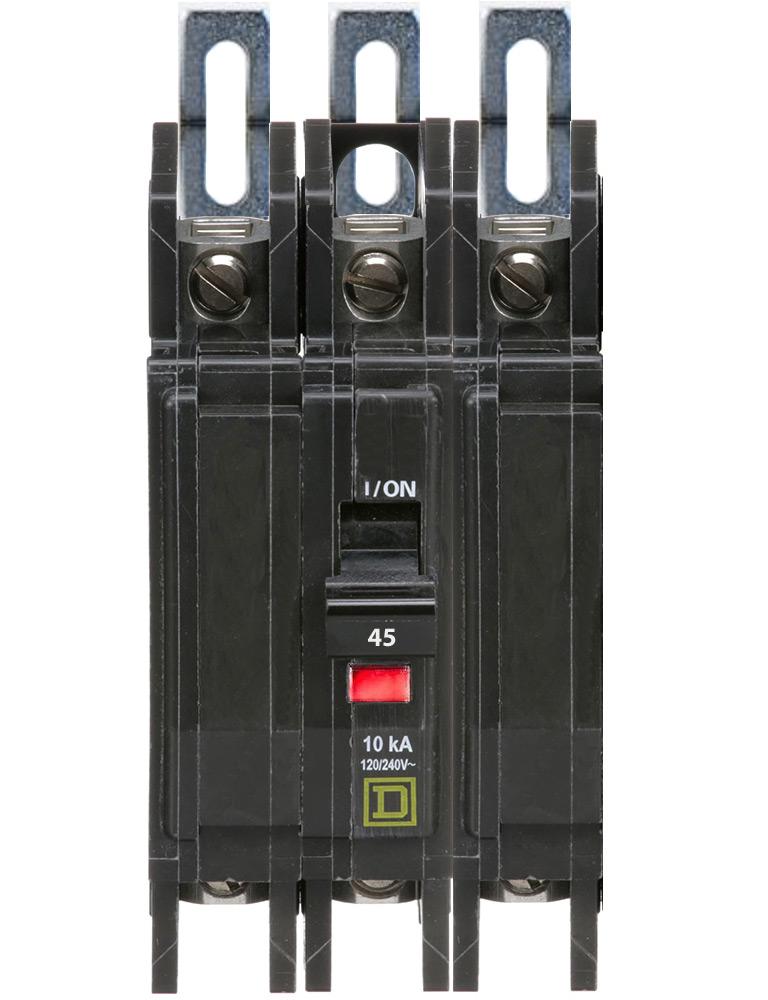

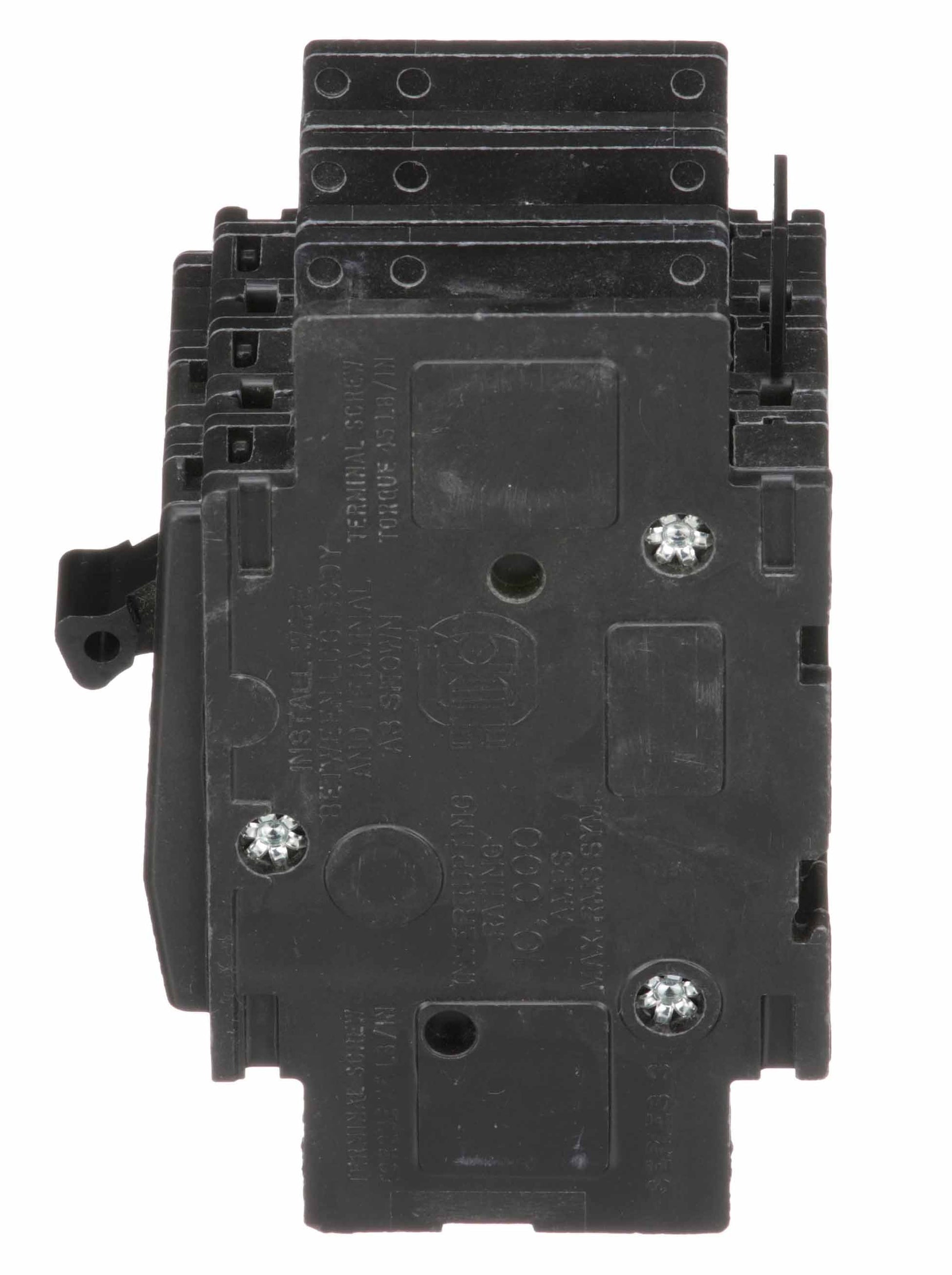

Square D QOU345 Circuit Breaker | 240V 45A 3P 10kA@240V Bolt-On QOU Series

Product Description:
The Square D QOU345 is a Molded Case Circuit Breaker from the QOU Series, designed for reliable circuit protection. It is a 3-pole, 45 amp breaker rated for 240 volts with a 10kA interrupting capacity. This model features thermal magnetic protection and a bolt-on connection for secure installation.

Key Features:
✔ Part Number: QOU345
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 240
✔ Amperage: 45
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901489191
✔ GTIN: 00785901489191
✔ Country of Origin: Mexico
✔ Dimensions: 2.25 in x 4.05 in x 4.05 in
✔ Weight: 1
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
✔ Wire Size: AWG 14...AWG 2 aluminum/copper
