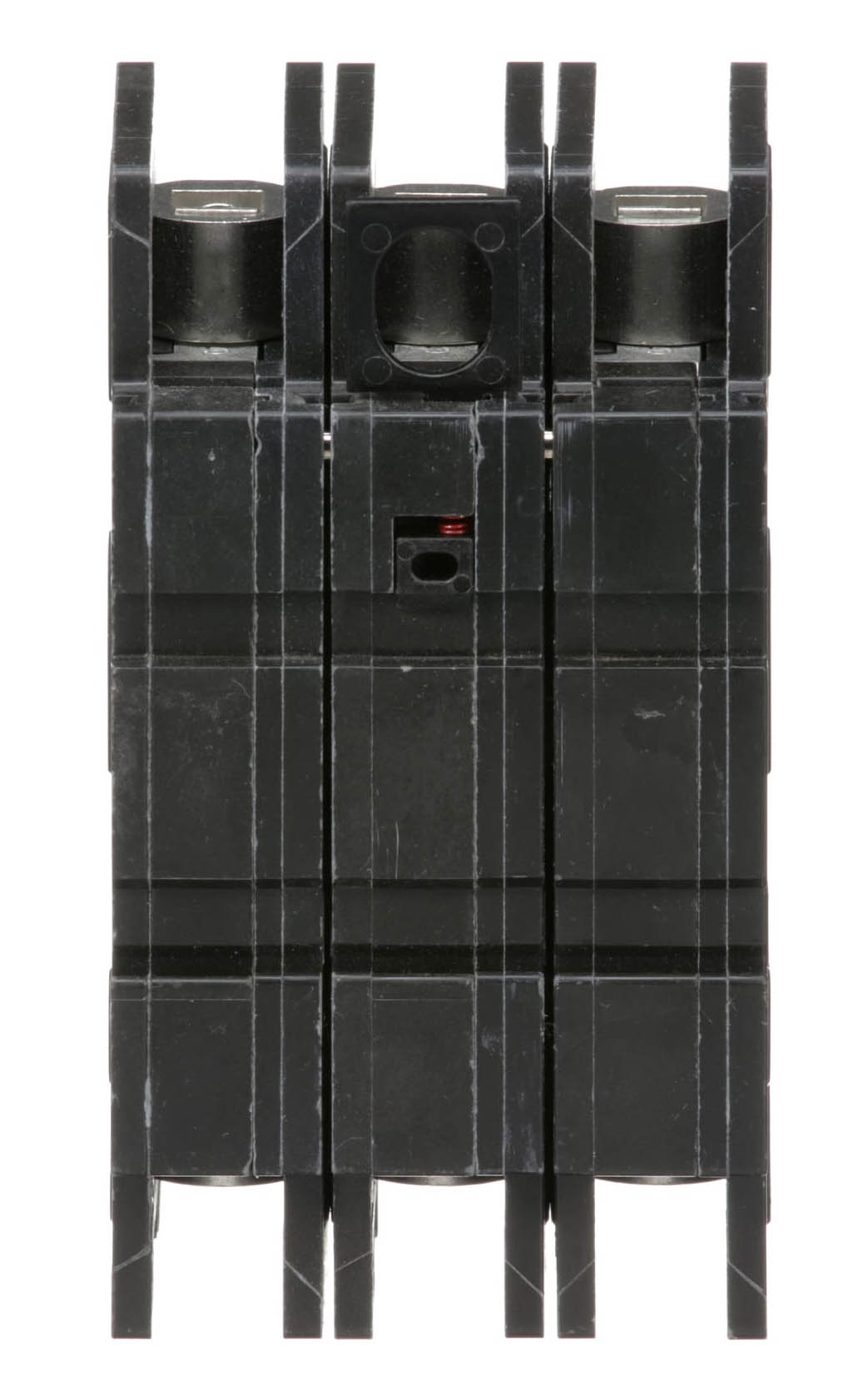

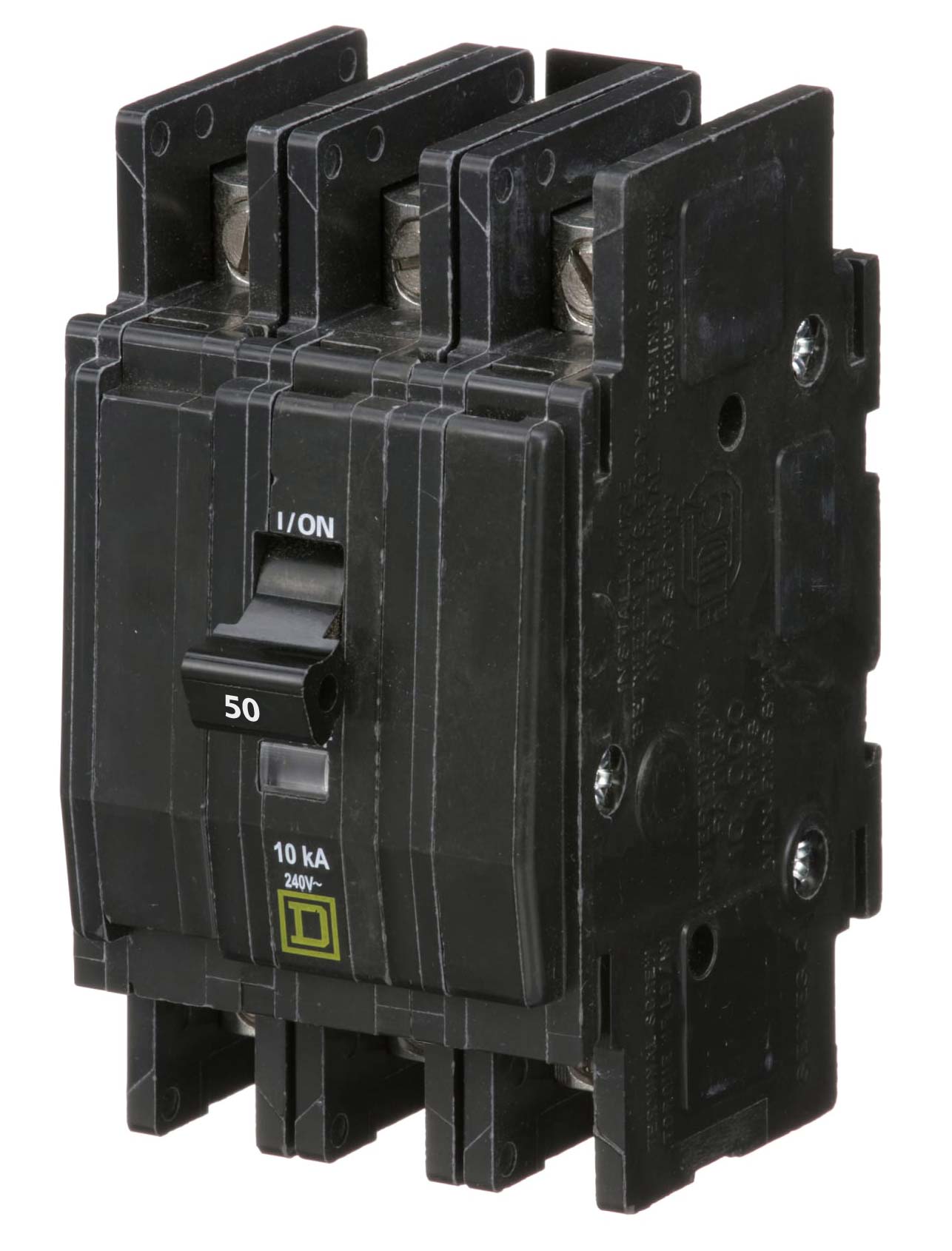

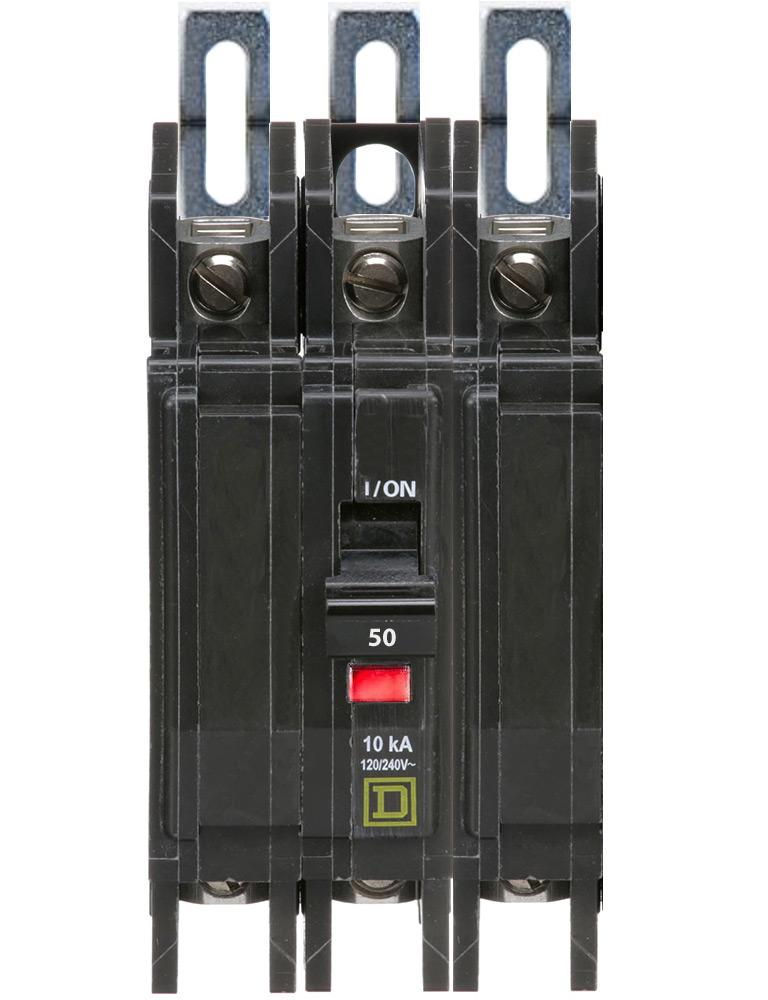

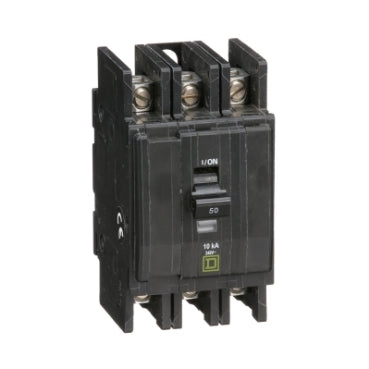

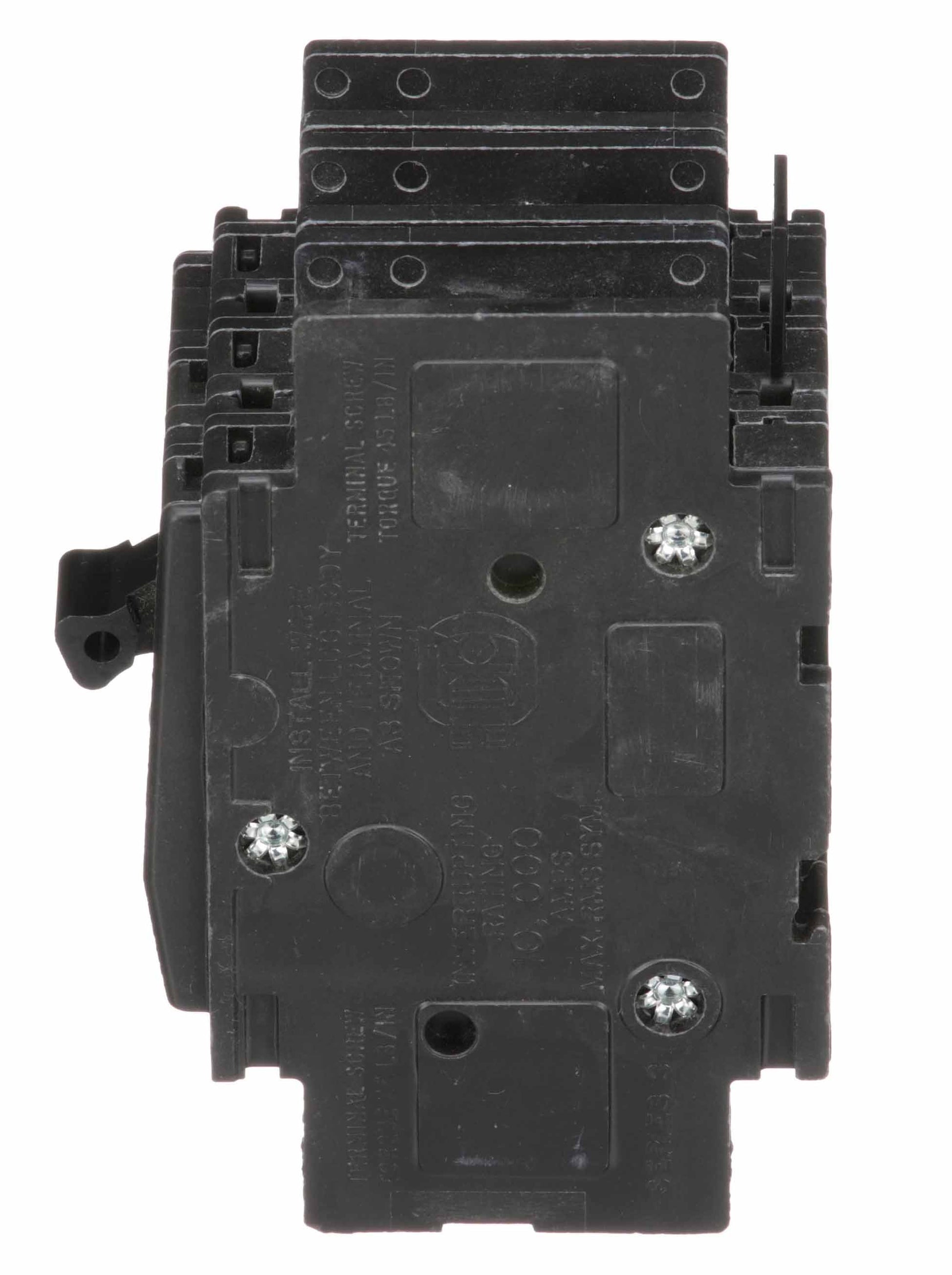

Square D QOU350 Circuit Breaker | 240V 50A 3P 10kA@240V Unit Mount QOU Series

Product Description:
The Square D QOU350 is a 3-pole molded case circuit breaker rated for 50 amps at 240 volts. It features thermal magnetic protection and is designed for unit mount connections. This circuit breaker is suitable for various electrical panel applications and is part of the reliable QOU Series.

Key Features:
✔ Part Number: QOU350
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 240
✔ Amperage: 50
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 10kA@240V
✔ Connection: Unit Mount
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901418986
✔ GTIN: 00785901418986
✔ Country of Origin: Mexico
✔ Dimensions: 2.25 in x 4.05 in x 4.05 in
✔ Weight: 1
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
✔ Wire Size: AWG 14...AWG 2 aluminum/copper
