Product Description:

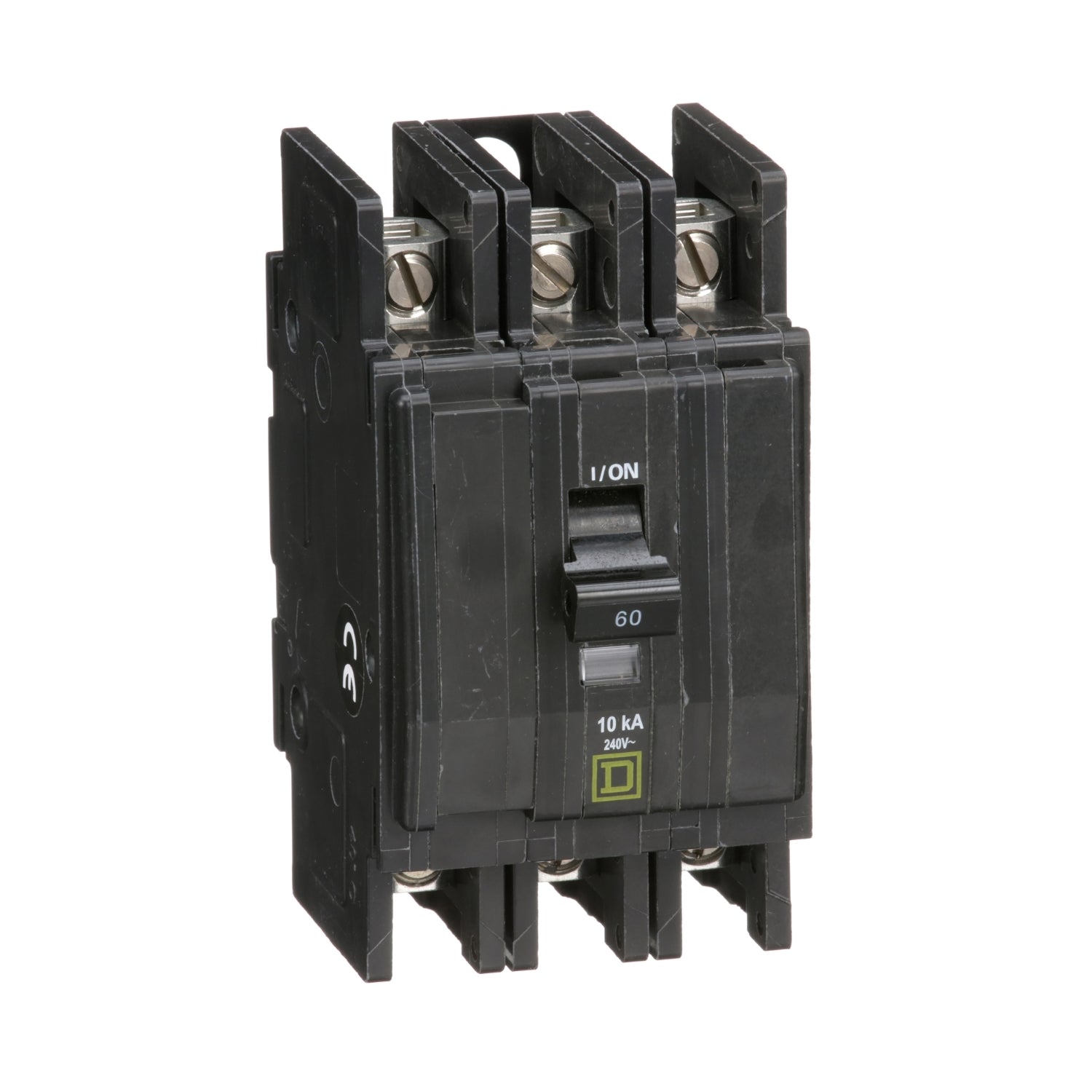

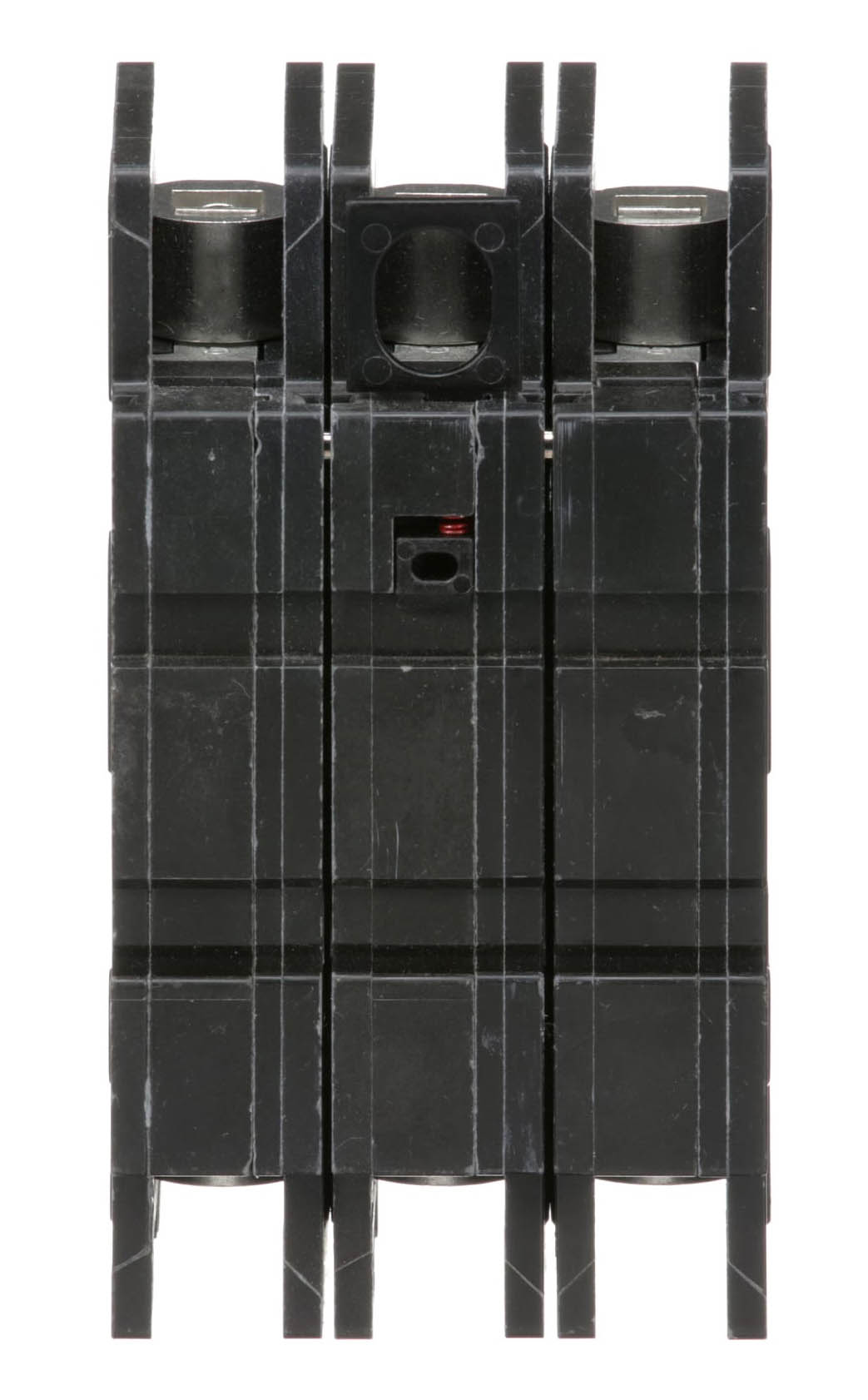

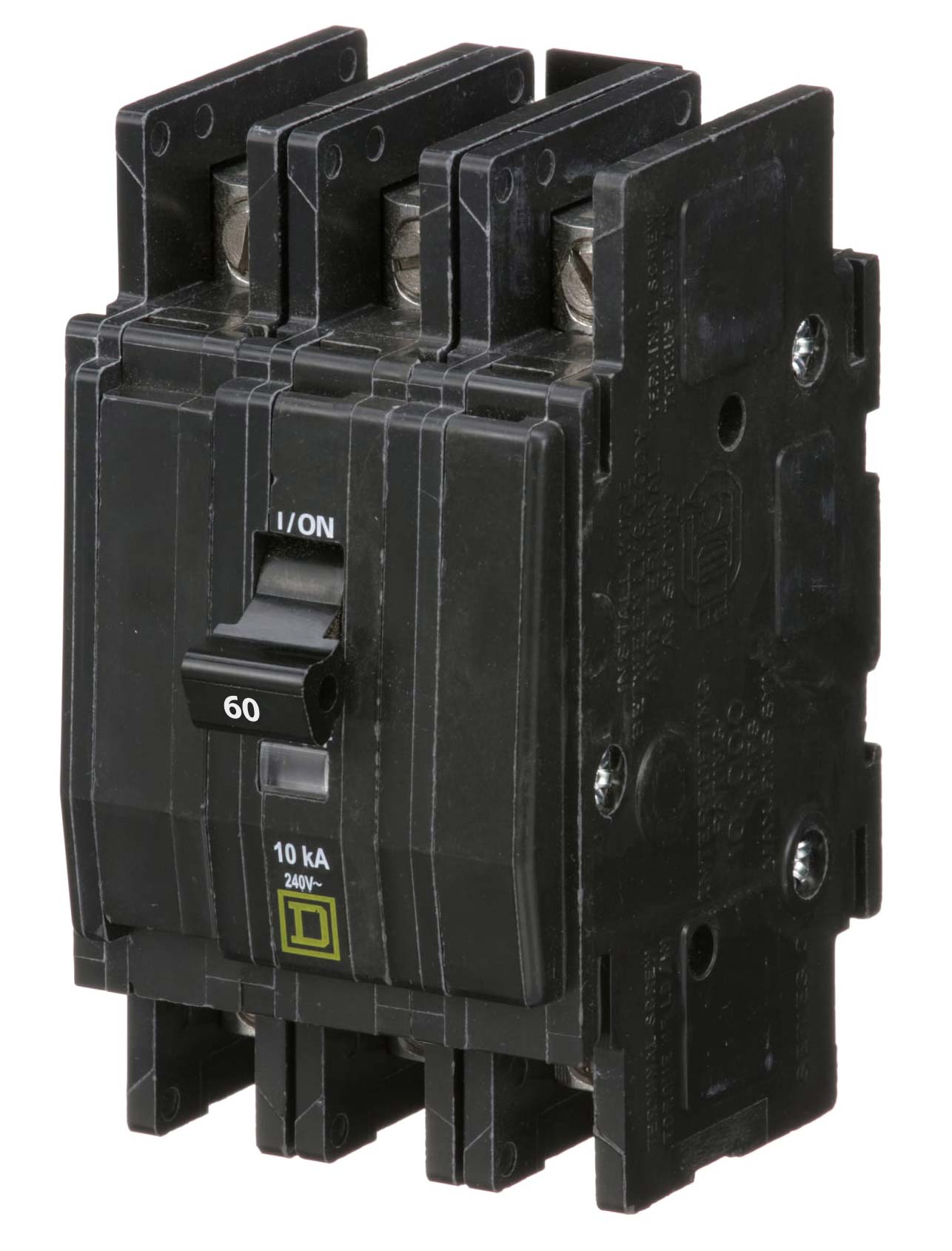

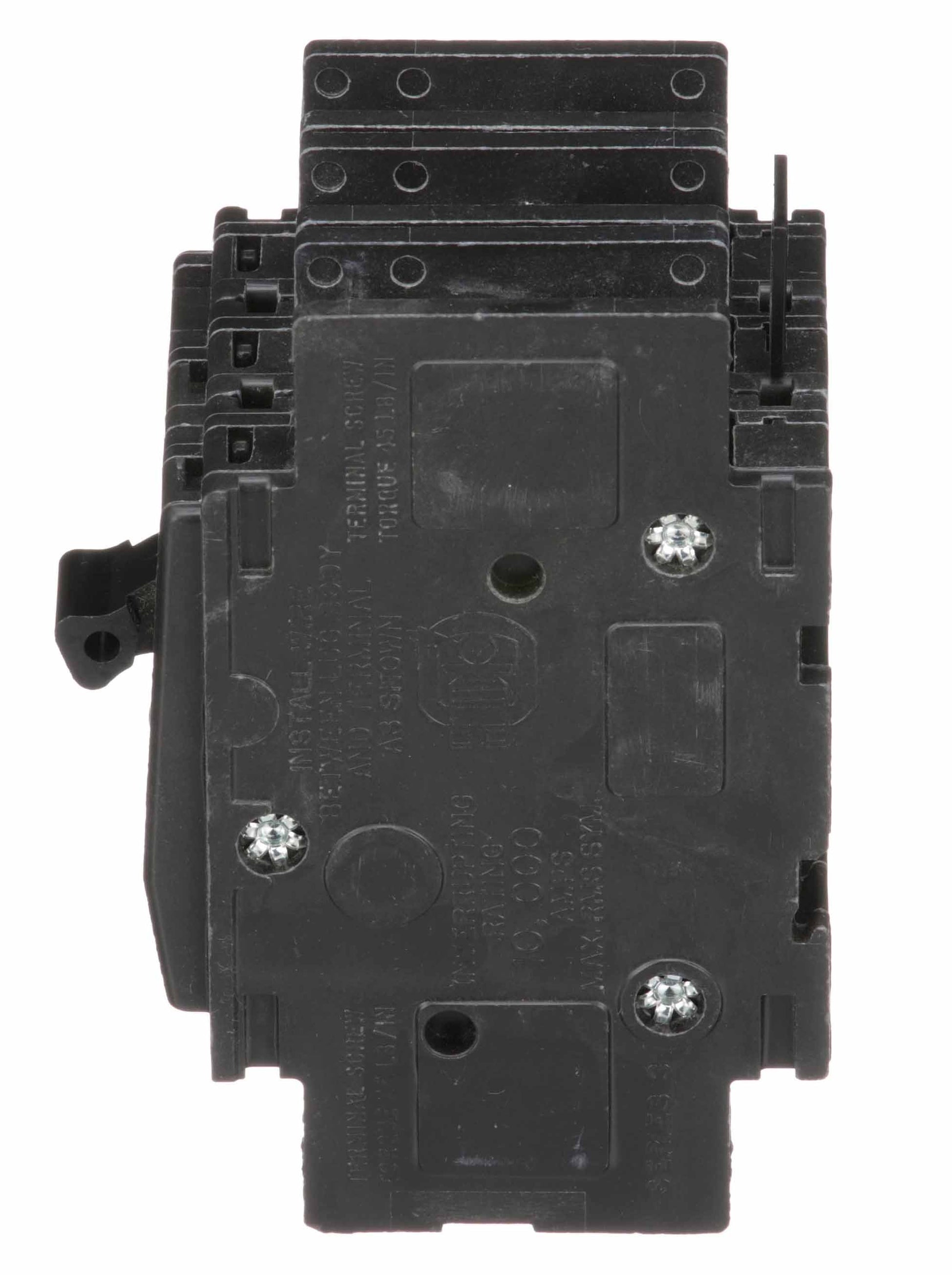

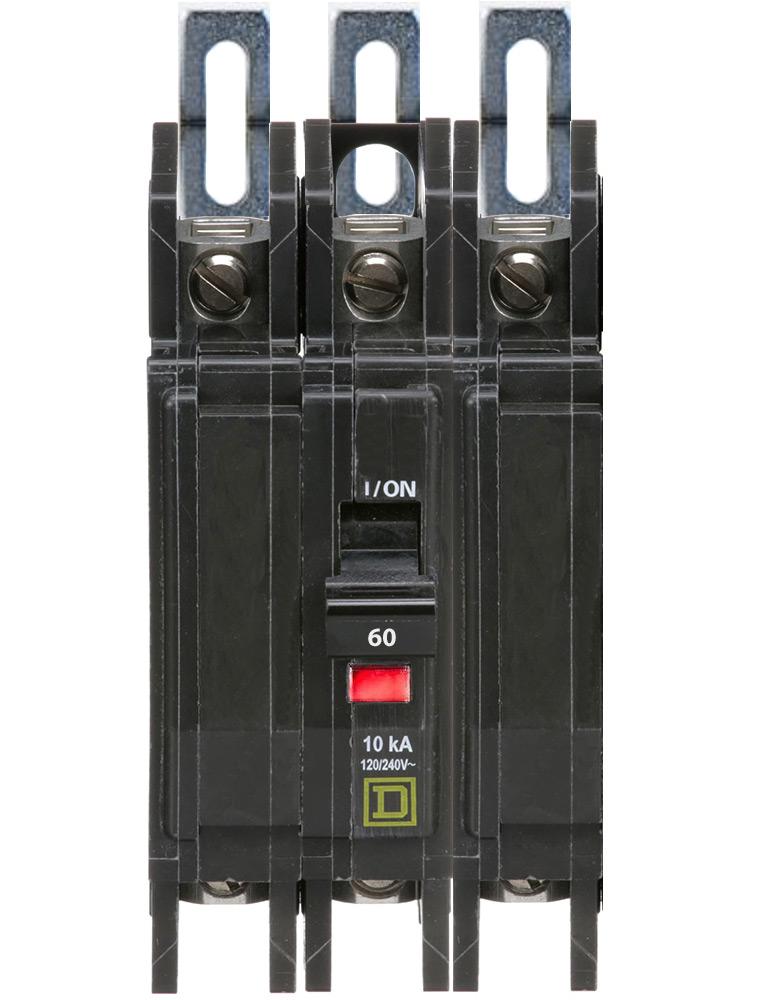

The Square D QOU360 is a 3-pole molded case circuit breaker with a 60 amp rating and 240VAC voltage. It features thermal magnetic protection and a bolt-on connection for secure installation. This breaker has an AIC rating of 10kA@240V and is part of the QOU Series family. It is designed for use in air conditioning, refrigeration, and heating equipment.
Key Features:
✔ Part Number: QOU360
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 240VAC
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ Wire Size: AWG 14...AWG 2 aluminum/copper
✔ Protection: Thermal Magnetic
✔ UPC: 785901060291
✔ GTIN: 00785901060291
✔ Country of Origin: Mexico
✔ Dimensions: 2.25 in x 4.05 in x 4.05 in
✔ Weight: 1
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
