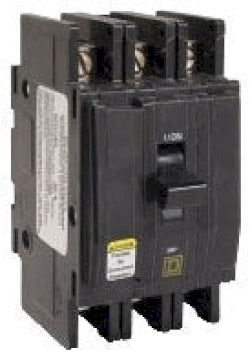

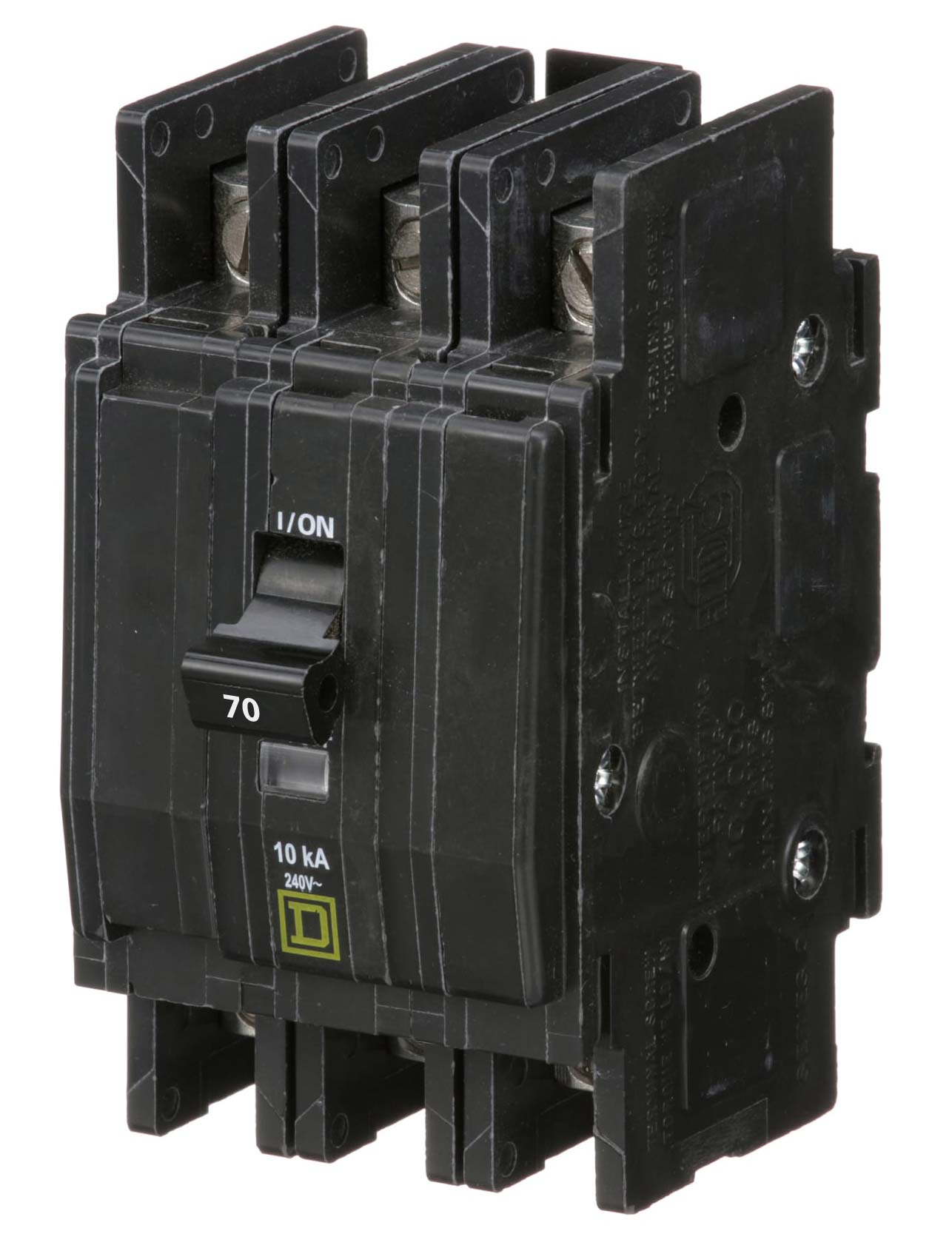

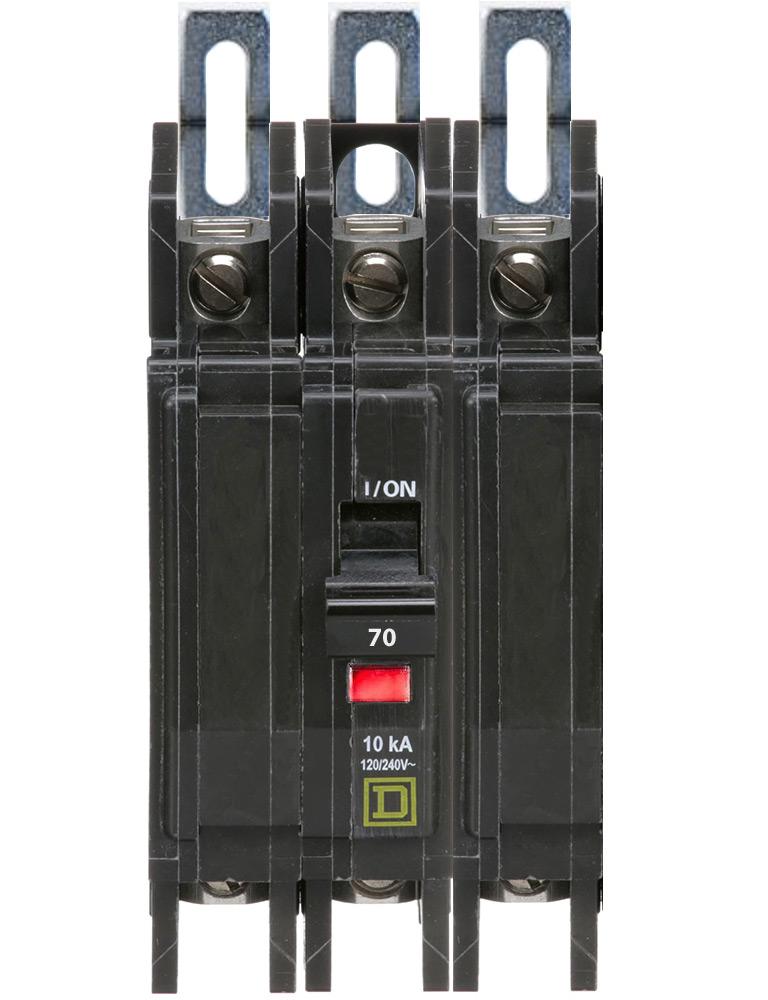

Square D QOU370 Circuit Breaker | 240V 70A 3P 10kA@240V Bolt-On QOU Series

Product Description:
The Square D QOU370 is a 3-pole molded case circuit breaker rated for 70 amps at 240 volts. It features thermal magnetic protection and a bolt-on connection for secure installation. This circuit breaker is part of the QOU Series and is suitable for various electrical panel applications.

Key Features:
✔ Part Number: QOU370
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 240
✔ Amperage: 70
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ MCM Size: Min. Wire Size 12 AWG Max. Wire Size 2/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901060307
✔ GTIN: 00785901060307
✔ Country of Origin: Mexico
✔ Dimensions: 2.25 in x 4.05 in x 4.05 in
✔ Weight: 1
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
✔ Wire Size: AWG 12...AWG 2/0 aluminum/copper
