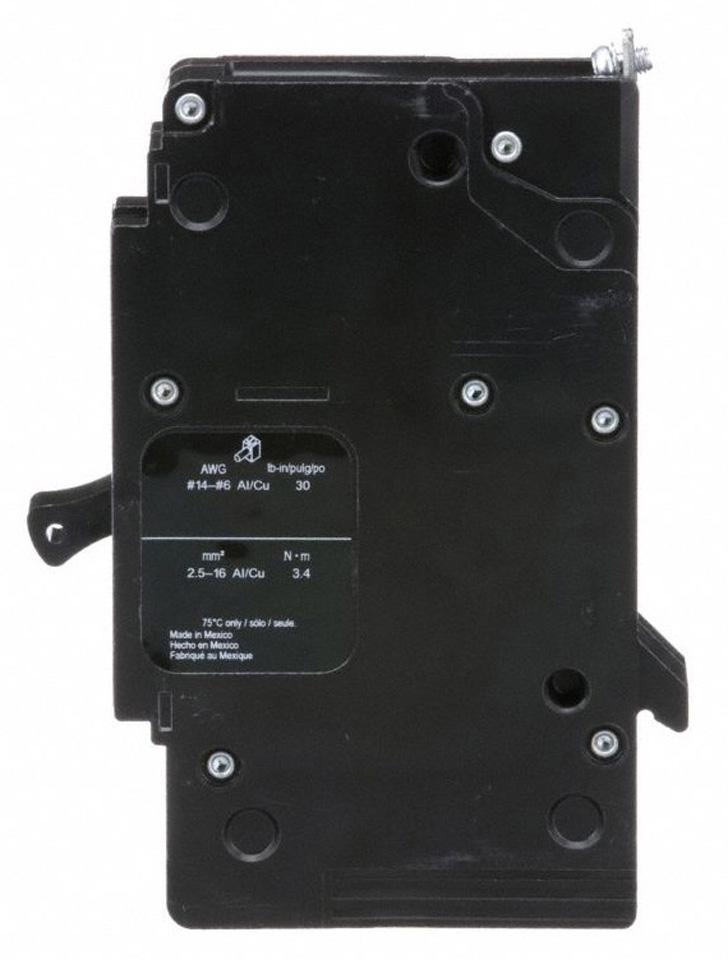

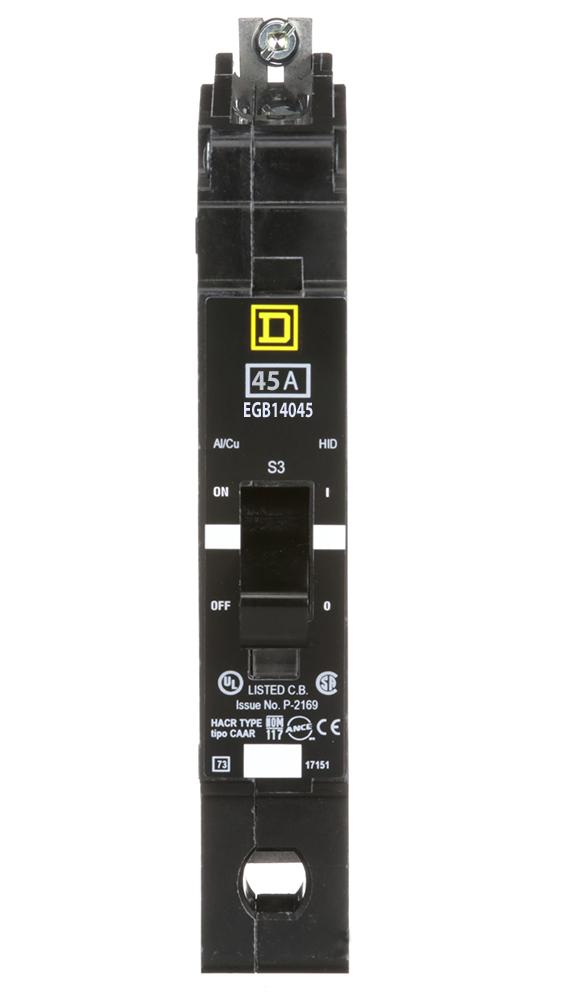

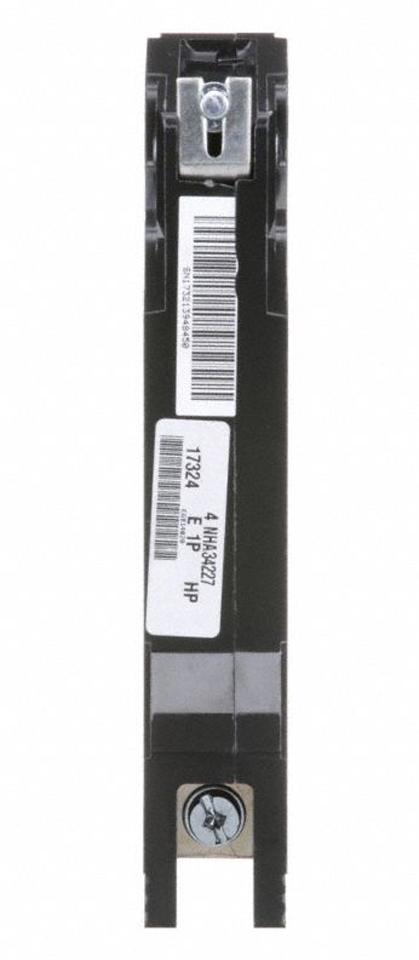

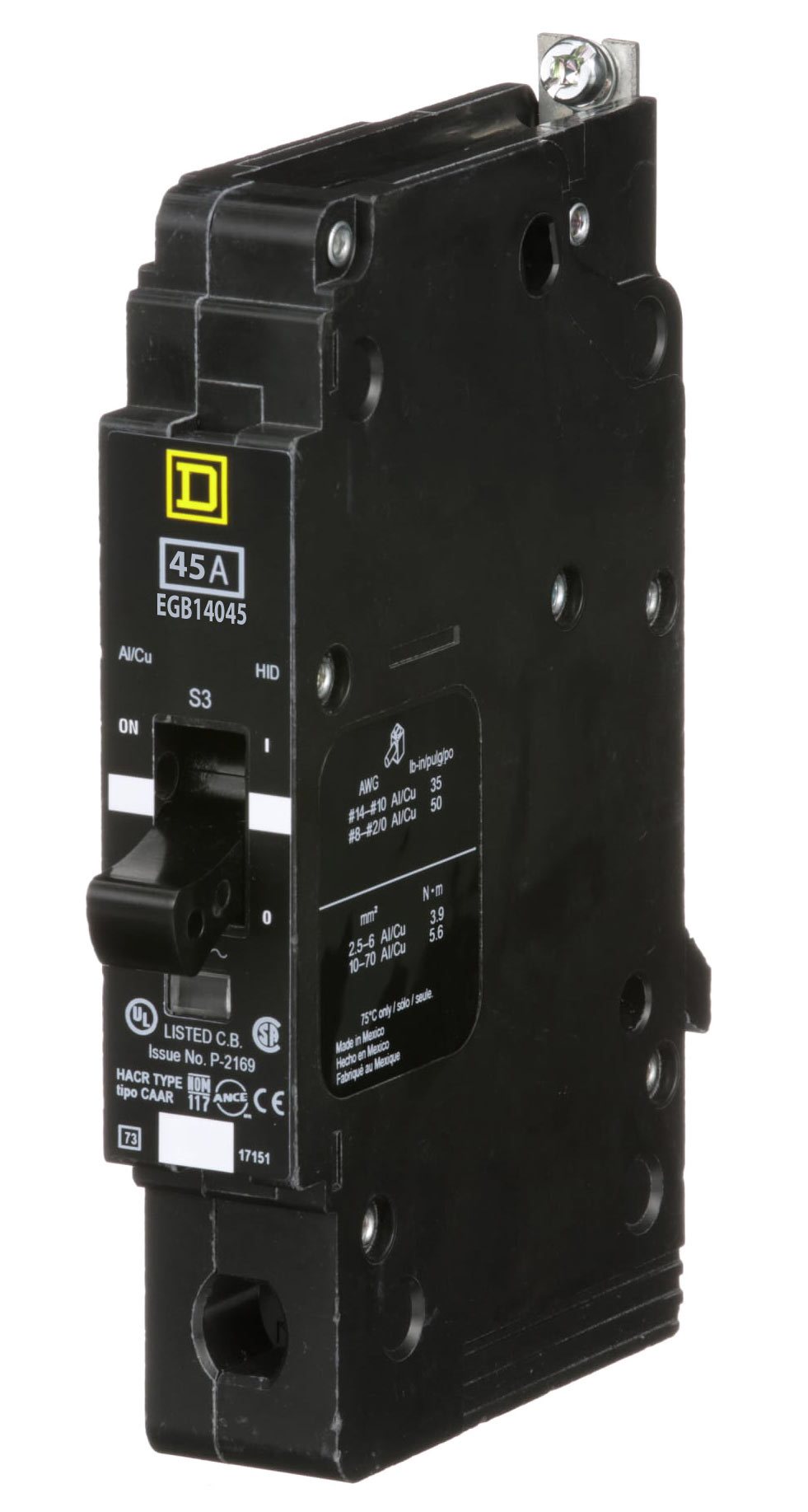

Square D EGB14045 Circuit Breaker | 277V 45A 1 Pole 35kA@480V EGB Series

Product Description:
The Square D EGB14045 is a reliable Molded Case Circuit Breaker designed for efficient electrical distribution. It features a 1 pole, 277 Volt, 45 amp rating with a high AIC rating of 35kA@480V. This circuit breaker offers thermal magnetic protection and a Bolt-On connection for secure installation.

Key Features:
✔ Part Number: EGB14045
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Voltage: 277
✔ Amperage: 45
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Protection: Thermal Magnetic
✔ UPC: 785901130024
✔ GTIN: 00785901130024
✔ Country of Origin: Mexico
✔ Dimensions: Height 5.66 in (143.76 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 2
✔ Panel Type: NF panelboard
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 2/0 aluminum, AWG 14...AWG 2/0 copper
