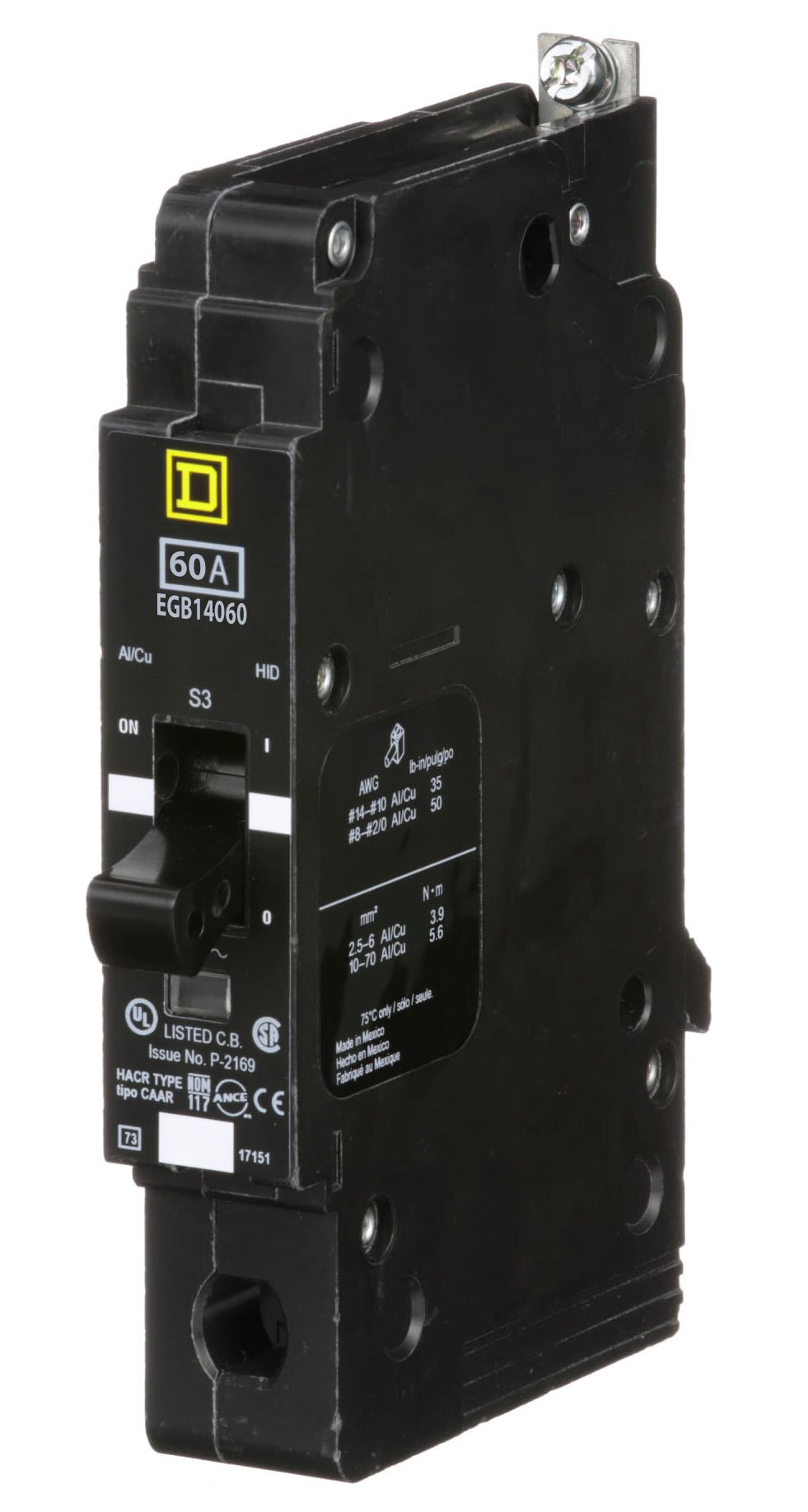

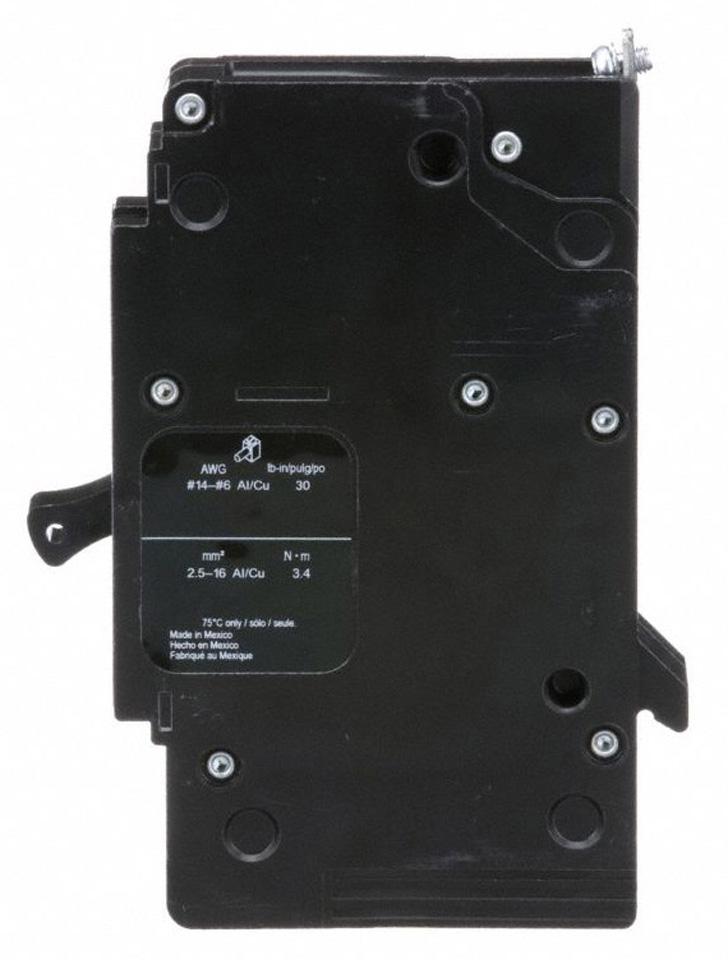

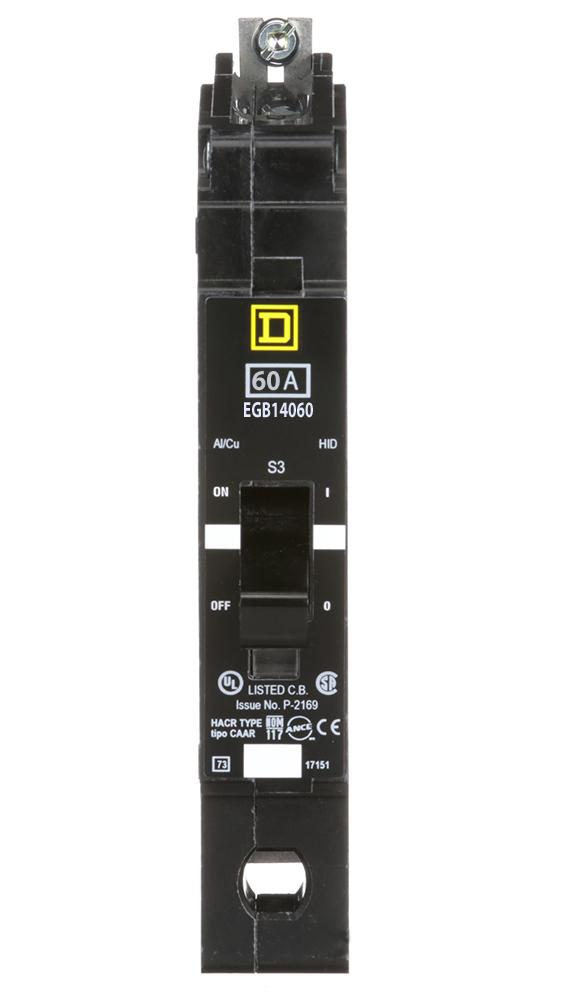

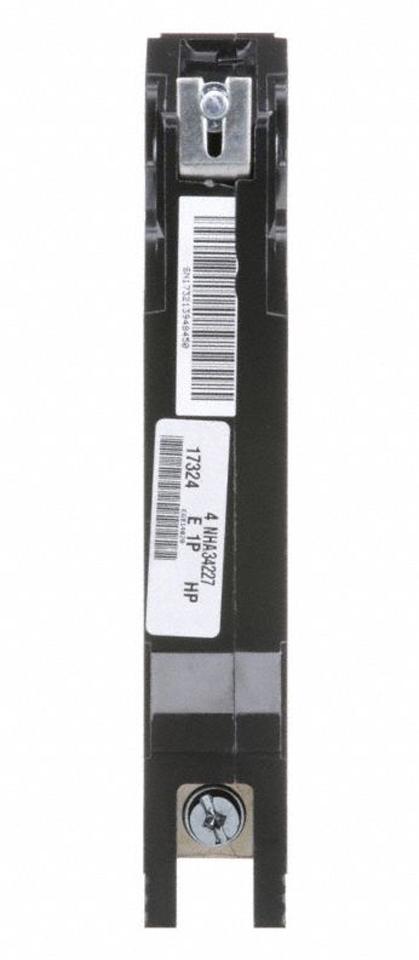

Square D EGB14060 Circuit Breaker | 277V 60A 1P 35kA@480V Bolt-On EGB Series

Product Description:
The Square D EGB14060 is a Molded Case Circuit Breaker from the EGB Series. It is a 1-pole, 60 amp breaker rated for 277 volts with a 35kA@480V interrupting capacity. This circuit breaker features a bolt-on connection and provides thermal magnetic protection for reliable circuit safety.

Key Features:
✔ Part Number: EGB14060
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Type: EGB
✔ Voltage: 277
✔ Amperage: 60
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 785901128519
✔ GTIN: 00785901128519
✔ Dimensions: Height 5.66 in (143.76 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Panel Type: NF panelboard
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 2/0 aluminum, AWG 14...AWG 2/0 copper
