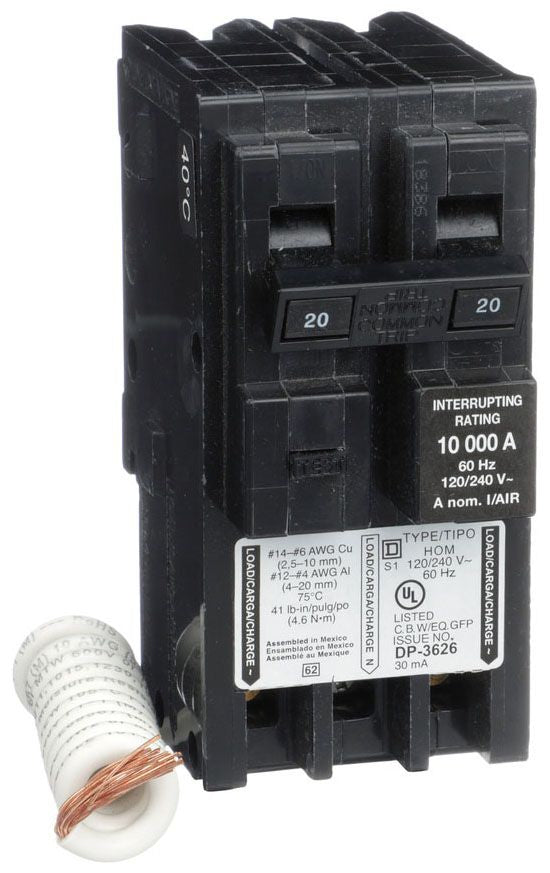

Square D HOM220EPD Circuit Breaker | 240V 20A 2P 10kA@240V HOMELINE

Product Description:
The Square D HOM220EPD is a Molded Case Circuit Breaker from the HOMELINE family. It features a 2-pole design with a 240V, 20A rating and a 10kA@240V AIC rating. This breaker uses a plug-in connection and offers thermal magnetic protection for reliable performance.

Key Features:
✔ Part Number: HOM220EPD
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 240
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp Terminals
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901564300
✔ GTIN: 00785901564300
✔ Country of Origin: Mexico
✔ Dimensions: Depth 10.53 in (267.46 mm) Width 16 in (406.40 mm) Height 52.5 in (1333.50 mm)
✔ Standards: UL Listed
✔ Certification: UL Listed
✔ Wire Size: AWG 14 to AWG 8, Aluminum/Copper
