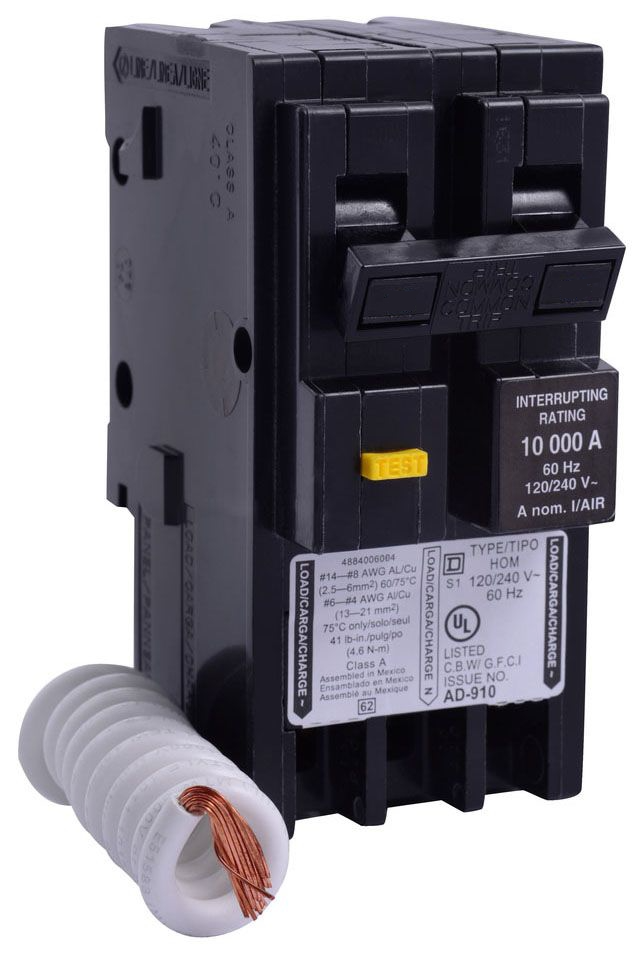

Square D HOM225GFI Circuit Breaker | HOM 120/240 VACV 25A

Product Description:
The Square D HOM225GFI is a 2-pole Molded Case Circuit Breaker designed for 120/240 VAC applications. It features a 25A rating, 10kA AIC at 240V, and Plug-In connection. This breaker includes Thermal Magnetic protection and Ground Fault Circuit Interrupter (Class A - 5mA) functionality. It is compatible with Homeline Load Centers and meets CSA, HACR, and UL standards.

Key Features:
✔ Part Number: HOM225GFI
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Type: HOM
✔ Voltage: 120/240 VAC
✔ Amperage: 25A
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100A/HOM
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
✔ Max. Wire Size: 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ Trip Type: Ground Fault
✔ Certification: CSA Certified, HACR, UL Listed
✔ UPC: 785901303220
✔ GTIN: 00785901303220
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 3.13 in x 3.13 in
✔ Weight: 1.16 lb
✔ Panel Type: Homeline Load Center
✔ Wire Size: AWG 12 to AWG 4 Aluminum, AWG 14 to AWG 6 Copper
